Wiring Diagrams and Schematics

The wire color key (Table 10) and element strip diagrams are shown
below. For schematics, please refer to the Built-in Oven Service
Guide, which can be found on QuickFinder or attached to the control
module access cover in the upper oven plenum.
7.5.1

Wire Color Key

BK Black BN
GN Green GR
RD Red VT
YE Yellow BN/WH
OR/BK Orange/Black VT/WH
Table 10 Wire color key
7.5.2

Strip Diagrams

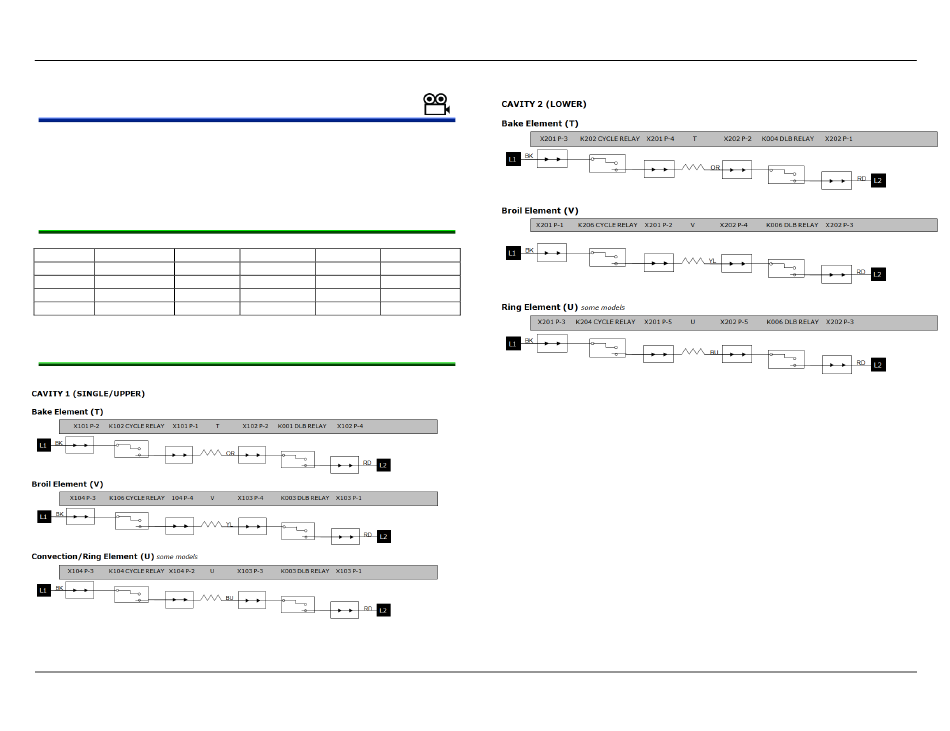

Figure 53 Upper/Single oven element strip diagram
Copyright by BSH Home Appliances Corporation
This material is intended for the sole use of BSH authorized persons and may contain confidential and proprietary information. Any unauthorized review, use, copying, disclosure, or distribution in any format is prohibited.
Brown BU Blue
Gray OR Orange
Violet WH White
Brown/White BU/WH Blue/White
Violet/White YE/BK Yellow/Black
1901 Main St ▪ Suite 600 ▪ Irvine, CA 92614
JUNE 2014 Service Manual for Bosch Benchmark Series Built-in Wall Ovens
Figure 54 Lower oven element strip diagram
