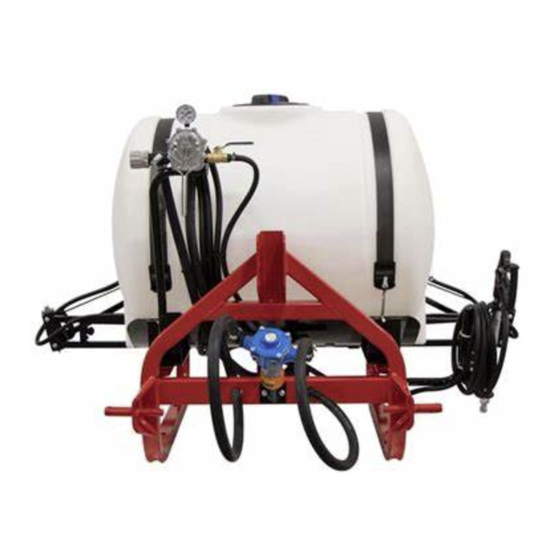

(110 Gallon 3-Point Sprayer w/5880 'BoomJet' [Brass] Nozzle)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
3-Point sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.
OWNER'S MANUAL
Model: 110-3PT-5880 (5300836)
WARNING:
Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING:
To reduce the risk of injury, the
user must read and understand the operator's
manual before using this product.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5004642
Category I or II
(10/22)]
Page 1
Advertisement
Table of Contents
Related Manuals for Fimco 110-3PT-5880
Summary of Contents for Fimco 110-3PT-5880
- Page 1 Warranted against manufacturer or workmanship defects from www.fimcoindustries.com date of purchase with copy of receipt: 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 Homeowner Usage: One Year. Commercial Usage: 90 Days.
-
Page 2: Table Of Contents
Maintenance, Tank Care and Winter Storage ....... 6 Troubleshooting ............... 11 Pressure Relief Valve Exploded View/Parts List ....7 Warranty ................12 Model: 110-3PT-5880 (5300836) (110 Gallon 3-Point Sprayer w/5880 ‘BoomJet’ [Brass] Nozzle) Technical Specifications • 110 Gallon Polyethylene Tank •... -
Page 3: Sprayer Assembly Instructions
Assembly Procedure Most of the sprayer has been assembled at the factory. • Follow the steps below to properly assemble the sprayer. Slide a hose clamp on to the bypass hose (from the 1. Install the pre- relief valve), then with a assembled tee twisting motion, slip the valve sub-assembly... -
Page 4: Sprayer Info And Operation
Operation Instructions Information About the Sprayer Roller pumps are positive displacement pumps, which means that the entire solution being pumped must go somewhere or the pump will break. In this roller pumping system, solution is drawn from the tank and forced to a planned source, such as boom noz- zles or handgun. -
Page 5: Calibration
39.5 5880-3/4-2TOC10 OC10 H1/4U-0508HE H1/4VVL-11004 3.46 10.7 (Fimco #5138475) (#5138899) (Fimco #5138691) 4.00 40.5 12.2 Features a 1/4” gauge port and is supplied with (1) additional 1/4” NPT pipe plug (#CP2812) and (1) blank tip (#5138668) for allowing the BoomJet to spray to one side Time Required in seconds only. -
Page 6: Maintenance, Tank Care And Winter Storage
After use, fill the sprayer tank part way with water. Start the sprayer and allow the clear water to be pumped through the plumbing system and out through the spray nozzles. Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner and repeat cleaning instructions above (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. -
Page 7: Pressure Relief Valve Exploded View/Parts List
• EPDM O-Rings • Fore pressure to 150 p.s.i. • 1/4” port for pressure gauge • 3/4” NPT (M) inlet & (F) outlet connections Ref. # Fimco # Mfg. Part # Description CP23121-PP CP23121-PP Poly Body (3/4" NPT) CP23128-PP CP23128-PP Poly Body (1/2"... -
Page 8: Sprayer Exploded View
Detail B Detail A Exploded View: 110-3PT-5880 Detail B (5300836) Refer to the parts list next page for part numbers. Detail A Detail C Strainer Detail * *: Cap ONLY available in Complete assembly Detail C Page 8... -
Page 9: Sprayer Parts List
Parts List: 110-3PT-5880 (5300836) BoomJet® Boomless Nozzle Detail Item # Mfg. Part # Fimco # Description CP2812 CP2812 1/4" Pipe Plug, Brass H1/4U-0508HE 5138691 VeeJet© Nozzle, Brass CP5856 Nozzle Body, Brass 12687-50 5116263 Strainer, 50 Mesh H1/4VV-11004 5138722 VeeJet© Nozzle, Brass... -
Page 10: Sprayer Dimensions
Torque Chain Attachment to a Roller Pump Torque chain, ‘S’ hook, nut and bolt are included to secure your pump during Strap/Buckle Detail operation. Strap Attachment to a “Bent” Buckle Attach end of the torque chain over stem of bolt Thread the whiz nut onto the bolt. -
Page 11: Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Leak in suction line Check hose and fittings for leaks and correct Obstruction in suction line Inspect hose for debris or loose inner liner in hose Suction strainer clogged Clean strainer Suction hose sucked to Cut a notch or "V"... -
Page 12: Warranty
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the conditions set forth above are fulfilled and the Equipment or any part thereof is found to be defective, Fimco, Inc. shall, at its own cost, and at its option, either repair or replace the defective Equipment or part.
