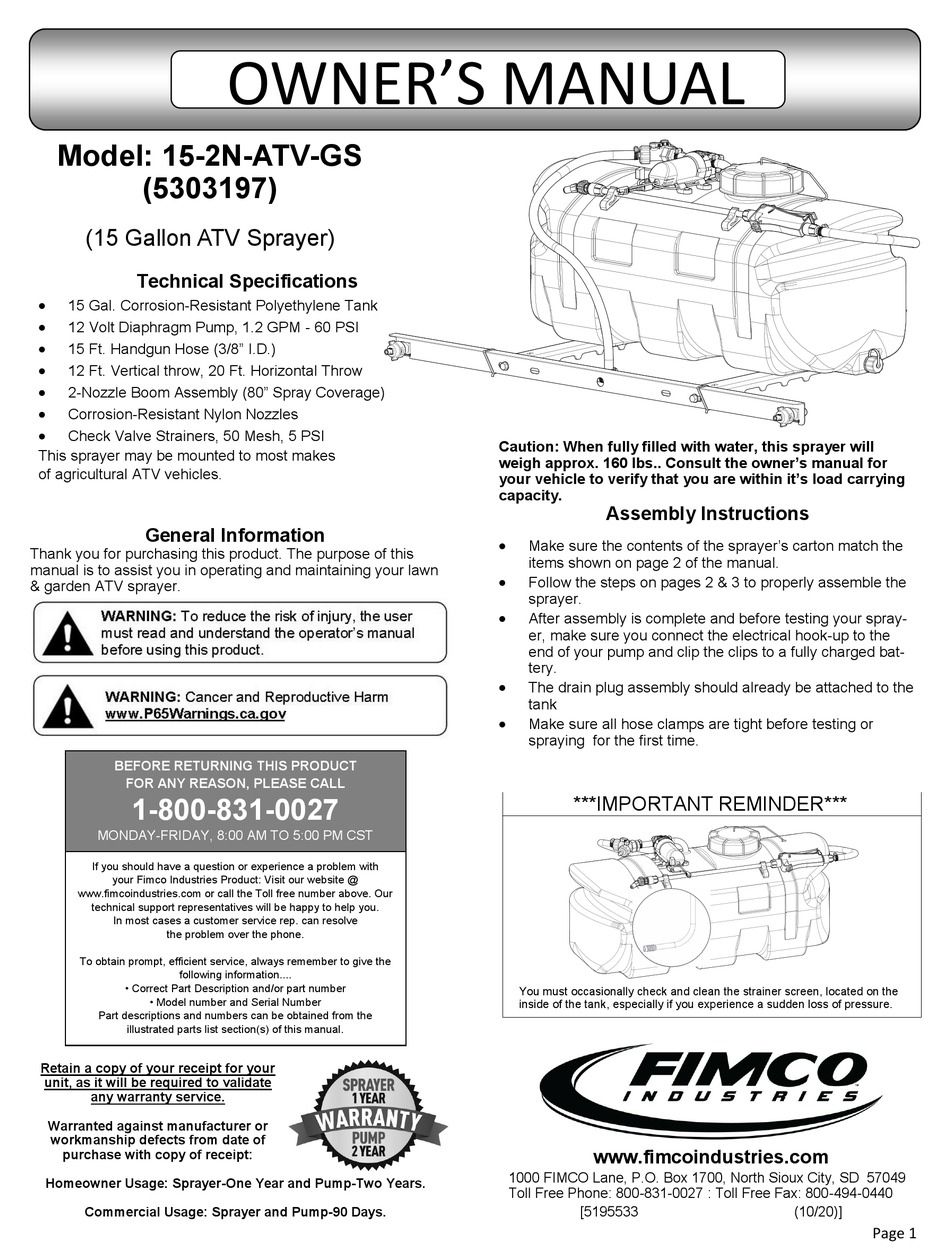

Fimco 15-2N-ATV-GS Owner's Manual

Model: 15-2N-ATV-GS
(5303197)
(15 Gallon ATV Sprayer)
Technical Specifications

15 Gal. Corrosion-Resistant Polyethylene Tank

12 Volt Diaphragm Pump, 1.2 GPM - 60 PSI

15 Ft. Handgun Hose (3/8" I.D.)

12 Ft. Vertical throw, 20 Ft. Horizontal Throw

2-Nozzle Boom Assembly (80" Spray Coverage)

Corrosion-Resistant Nylon Nozzles

Check Valve Strainers, 50 Mesh, 5 PSI
This sprayer may be mounted to most makes
of agricultural ATV vehicles.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden ATV sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your
unit, as it will be required to validate
any warranty service.
Warranted against manufacturer or
workmanship defects from date of
purchase with copy of receipt:
Homeowner Usage: Sprayer-One Year and Pump-Two Years.
Commercial Usage: Sprayer and Pump-90 Days.
OWNER'S MANUAL
Caution: When fully filled with water, this sprayer will
weigh approx. 160 lbs.. Consult the owner's manual for
your vehicle to verify that you are within it's load carrying
capacity.
Assembly Instructions

Make sure the contents of the sprayer's carton match the
items shown on page 2 of the manual.

Follow the steps on pages 2 & 3 to properly assemble the
sprayer.

After assembly is complete and before testing your spray-
er, make sure you connect the electrical hook-up to the
end of your pump and clip the clips to a fully charged bat-
tery.

The drain plug assembly should already be attached to the
tank

Make sure all hose clamps are tight before testing or
spraying for the first time.
***IMPORTANT REMINDER***
You must occasionally check and clean the strainer screen, located on the
inside of the tank, especially if you experience a sudden loss of pressure.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
[5195533 (10/20)]
Page 1
