installation and users manual for
GLMe2L & GLMe2L(N) commercial
door control
www.grifco.com.au
www.grifco.co.nz
D-M-ACG-076A
Chamberlain Australia Pty Ltd
PO Box 1446, Lane Cove
NSW 1595, Australia
Phone toll free 1800 474 326
Chamberlain New Zealand Ltd
PO Box 100-221
North Shore 0745, New Zealand
Phone toll free 0800 653 667
300117
Advertisement
Table of Contents
Related Manuals for Grifco GLMe2L
Summary of Contents for Grifco GLMe2L

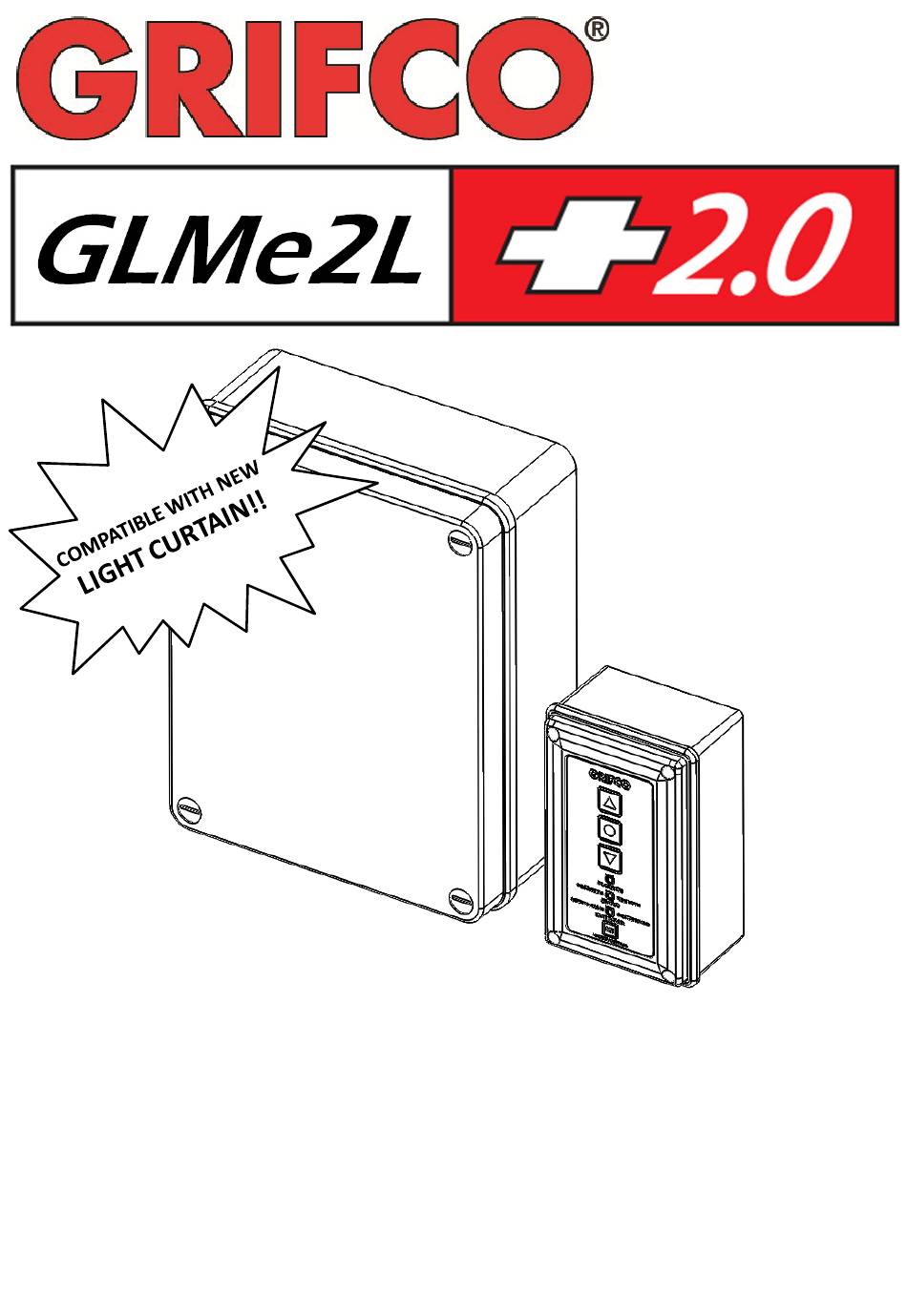

- Page 1 Chamberlain Australia Pty Ltd installation and users manual for PO Box 1446, Lane Cove GLMe2L & GLMe2L(N) commercial NSW 1595, Australia Phone toll free 1800 474 326 door control Chamberlain New Zealand Ltd PO Box 100-221 www.grifco.com.au North Shore 0745, New Zealand www.grifco.co.nz...
-
Page 2: Safety Instructions
Use the commercial door control for its intended purpose. GLMe2L/N controls are designed for operating Grifco openers on spring balanced roller shutters, spring balanced roller doors and counterweighted bi-fold and vertical lift doors. -
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Instructions Introduction Planning System Overview Mounting Connection Supply connection • Motor connection • Limit connection • Controller Setup and Adjustment 11-12 Checking power • Door direction • Setting Limits • Entrapment Protection Device Connection Wired Access Control / Toggle Input Installation Expansion Typical Car Park Application (example) Main Control Board (MCB) Layout... -
Page 4: Introduction
You will need to ensure there are 2 x normally closed limit switches on the opener that will be connected to the control. Ensure sufficient room exists to mount the GLMe2L to the wall in the vicinity of the opener. If floor access to the main control board is preferred , ensure the GLMe2L is mounted accordingly. -
Page 5: System Overview
SYSTEM OVERVIEW The illustration below shows an overview of the system and the related connections required. mDrive or similar opener Limit Connections Motor Connections GLMe2L Wall Control Power Supply RJ45 Controller Cable C10A Controller... -
Page 6: Mounting
Mount the GLMe2L using 4 x mounting holes in the base of the enclosure as shown. Carefully pre-drill the base of both the GLMe2L Wall Mount Control and C10A Controller with 5mm holes. Holding the enclosure against the wall as a template (and with lid removed), mark the mounting holes in the base using a suitable marking pen. -
Page 7: Connection
ELECTRICAL CONNECTION The GLMe2L control must: be connected via an approved electrical isolation device • be connected via a suitable circuit breaker that disconnects all live conductors • be connected in accordance with the wiring rules of the country in which it is installed •... -
Page 8: Motor Connection
MOTOR CONNECTION FOR THREE PHASE, DO NOT CONNECT ANY WIRE TO THE NEUTRAL TERMINAL!! Grifco® Examples of compatible models: ML053M, ML103M, MH103M & ML153M Grifco® Example of compatible models: ML102M & MH102M Grifco® Example of compatible model: ML051M... -
Page 9: Limit Connection
LIMIT CONNECTION The GLMe2L is designed to be used with many different opener types that feature mechanical limits. A partial view of a typical Grifco® mDrive is shown below as an example. The diagram further below shows the connection required to the main control board within the GLMe2L control. -
Page 10: Controller
CONTROLLER The GLMe2L includes a C10A controller as the user interface for the door and opener. It consists of four buttons for control and setup, as well as three indicators to display the opener status. Using the 6m connection cable provided, the controller can be mounted anywhere convenient to the user, and in sight of the door. -
Page 11: Setup And Adjustment
SETUP AND ADJUSTMENT With the primary connection of the GLMe2L and opener complete it is time to test the operation. Carefully follow the next steps to ensure safe setup: 1) Ensure the door is manually positioned away from the opened or closed position by at least 1 metre. -
Page 12: Setting Limits
WARNING: Limits are extremely sensitive; a small cam movement may correspond to a large amount of door travel. The following procedure relates to Grifco® cam type limits (pictured below). Other opener models may vary in the set up method. Refer to other literature where needed to ensure safe set up. -
Page 13: Entrapment Protection Device Connection
Devices such as Infrared (IR) Beams and Safety Bump Edges allow safe automatic or latch closing of the door and must be wired directly into the MCB. Grifco® Entrapment Protection Devices such as the Grifco® Light Curtain Protector System (GLCPS, GPS15 or GPS772) and Bump Edge are wired into the quick connect inputs located next to the door behaviour dip switches on the MCB (shown below). -
Page 14: Installation Expansion
The GLMe2L can be expanded in many ways to meet the requirements of your application. The following describes a typical car park application that the GLMe2L is capable of. Read it thoroughly to better understand the capabilities of the GLMe2L before proceeding further with your installation. -
Page 15: Main Control Board (Mcb) Layout
MAIN CONTROL BOARD (MCB) The MCB is the heart of the GLMe2L. The diagram below provides an overview of the major components, connections and in- puts. Motor terminals ‘Learn’ and ‘Reset’ buttons Controller connection socket Mechanically interlocked contactors VDC out (24Vdc accessory power) -
Page 16: Accessories / Expansion
GPS15RK – Above including 2 x E945G transmitters Send / Receive type also available: GPS772 – Send/Receive beam kit GPS772RK - Above including 2 x E945G transmitters - Call 1800 GRIFCO for assistance with any of the above accessories, or other enquiries -... -
Page 17: Expansion Board (Eb1-Gl)
ACCESSORIES / EXPANSION Expansion Board: Model EB1-GL The Expansion Board and high lid pictured below (EB1-GL) allows the GLMe2L to be upgraded to provide many expanded fea- tures where special functionality or interfacing is required. Some features include: • Auto Close fine adjustment delay (0 to 300 seconds) •... -
Page 18: Auto Close & Wireless Accessory Set Up
LRN —Enables learning of new remotes RST —Reset board. Hold this button for 10 seconds to erase and force re-learn of safety Entrapment Protection Devices. Lower Right corner of GLMe2L MCB Action Button Sequence SET AUTO TIMER TO CLOSE FROM Press and hold the SET button, then whilst holding press the DOWN button 3 times •... - Page 19 • (the green light will go out indicating exit of learn mode) LEARN THE E840G WIRELESS Press and hold the SET button on the GRIFCO® controller, then • KEYPAD FROM THE CONTROLLER While holding the SET button, press the STOP button 5 times •...
-
Page 20: Maintenance
Power MUST be turned off before servicing or adjusting the opener. Disconnect the supply when cleaning! The GLMe2L is equipped with smart logic to indicate when your commercial door will require servicing. When the STATUS indica- tor flashes constantly please contact your commercial door dealer to arrange a routine door service. -
Page 21: Troubleshooting
If a problem is found with an installation, be sure to read the troubleshooting guide thoroughly. If the problem persists call Chamberlain for technical assistance on 1800 GRIFCO® or email customerservice@chamberlainanz.com in Australia or in New Zealand call 0800 653 667. - Page 22 Is there a solid orange (COMS) light on the Expansion Board? • YES… MCB (Main Control Board) must be reset. Call Chamberlain (1800 GRIFCO) for resetting procedure NO… Make sure key is in correct position 6. Power light intermittently goes OFF and ON: Is the power light going off on the MCB also? •...
-
Page 23: Notes
NOTES... -
Page 24: Warranty
Chamberlain’s warranty Chamberlain warrants to the original purchaser of the Grifco product (Unit) that: 1 The Unit (excluding the electric motor) is free from defects in materials and workmanship for a period of 24 months from the date of purchase.
