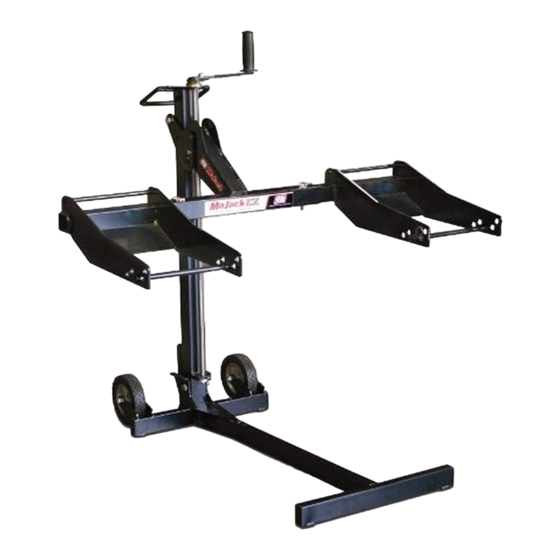

Instructions for Assembly and Operation
Instrucciones para la Asamblea y de la Operación
Directive d'assemblage et d'utilisation
GIVING MOWER MAINTENANCE A LIFT.
ELEVE EL NIVEL DE MANTENIMIENTO DE SU CORTADORA DE CÉSPED.
ÉLÈVE LES NORMES EN MATIÈRE D'ENTRETIEN DES TONDEUSES.
www.theMoJack.com | 1-877-575-3173

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZ Lift and is the answer not in the manual?

Questions and answers

Related Manuals for MoJack EZ Lift

Summary of Contents for MoJack EZ Lift

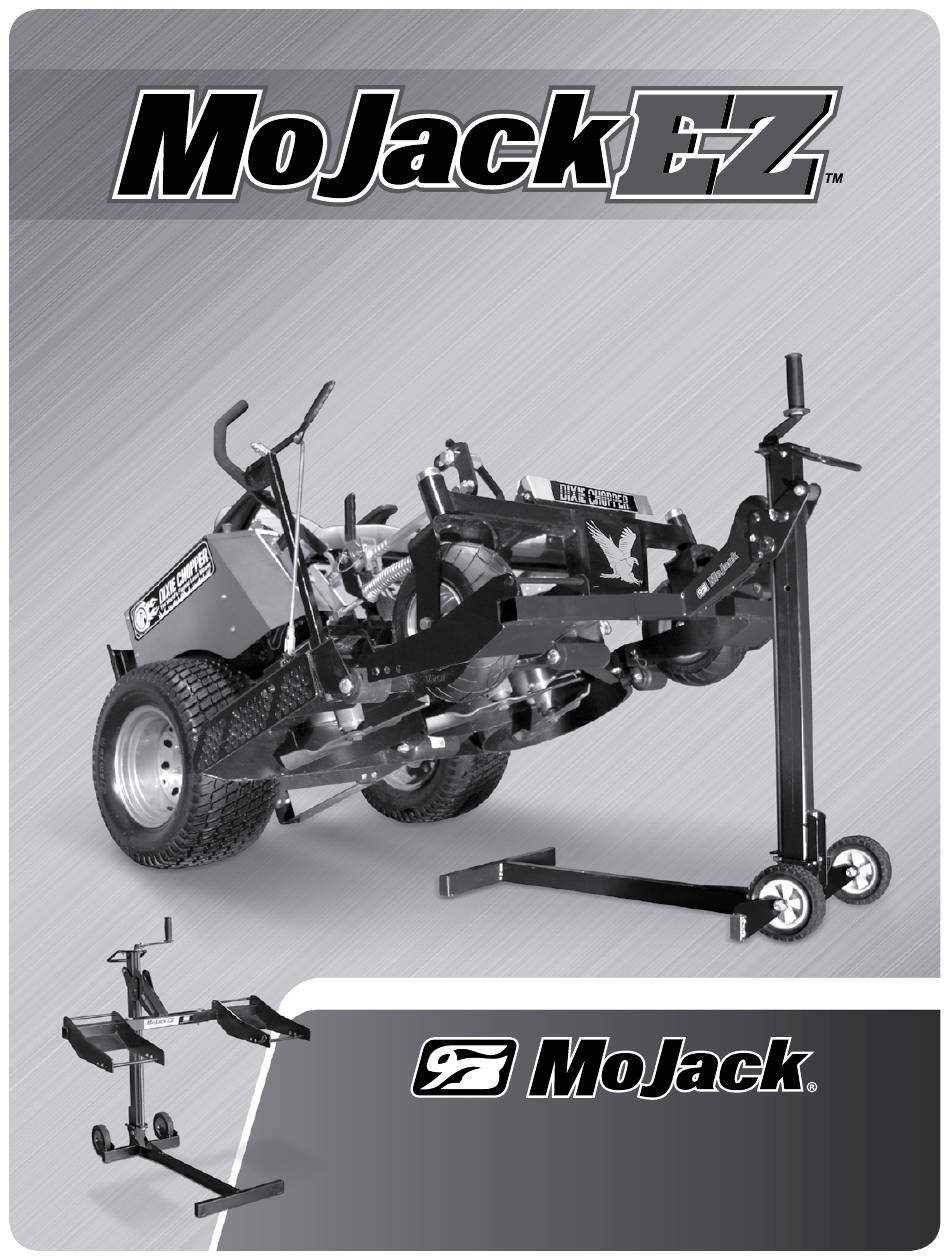

  • Page 1 Instructions for Assembly and Operation Instrucciones para la Asamblea y de la Operación Directive d’assemblage et d’utilisation GIVING MOWER MAINTENANCE A LIFT. ELEVE EL NIVEL DE MANTENIMIENTO DE SU CORTADORA DE CÉSPED. ÉLÈVE LES NORMES EN MATIÈRE D’ENTRETIEN DES TONDEUSES. www.theMoJack.com | 1-877-575-3173...
  • Page 2 NOTE: Please save this manual for future reference. Patent pending. MoJack is a registered trademark of MoJack Corporation. MoJack EZ is a trademarke of MoJack Corporation.

  • Page 3: Warnings And Safety Instructions

    IMPORTANT: The MoJack EZ is intended for use with riding lawn mowers and riding lawn tractors only. Do not exceed 300 lbs. It should never be used to service other types of machinery unless there is an approved MoJack accessory fitted for the type of machinery. Accessories are available for snowmobiles and walk-behind lawn mowers.

  • Page 4: Warranty And Returns

    In order to be eligible for service under this warranty you MUST register your MoJack within thirty (30) days of purchasing. You must keep your receipt as proof of date of sale. You can register your new MoJack on our website at www.themojack.com or by calling our toll-free number 1-877-575-3173.

  • Page 5: Parts List

    MoJack EZ Lift Parts List Item Item Qty. Description Qty. Description Tower Wheel Pad, LH Lift Arm Grip Handle Base Crank Handle Wheel Support Rod Wheel Pad, RH Safety Strap...

  • Page 6: Hardware List

    MoJack EZ Lift Hardware List Item Qty. Description Cap Screw M12-1.75 X 80 Cap Screw M12-1.75 X 65 Carriage Bolt M8-1.25 X 20 Cap Screw M12-1.75 X 80 Nylock Nut – M12-1.75 Nylock Nut – M8-1.25 Push Pin Clevis Pin Small Hair Pin Cap Screw M12-1.75 X 65...
  • Page 7 STEP 1 Remove MoJack EZ from package. Inventory items to be certain all parts and hardware are present. If any parts or hardware are missing, please contact MoJack at 1-877-575-3173 or email us at parts@themojack.com. STEP 2 Wheel 4 Assemble the Wheel...
  • Page 8 MoJack EZ Lift Assembly Instructions STEP 5 Attach the Crank Handle to the Tower by inserting Crank Handle 8 Carriage Bolt with threads facing up and fasten with Nylock Nut Nylock Nut 15 Note: There are two holes in the Crank Handle. The hole closest to the rubber grip will provide a 6”...
  • Page 9 MoJack EZ Lift Operating Instructions Some steps of the Operating Instructions are repeated from the Assembly Instructions. The Operating Instructions will show a full working cycle of the MoJack EZ. Before using the MoJack EZ, carefully read this manual in its entirety.
  • Page 10 MoJack EZ Lift Operating Instructions Preparing the MoJack EZ for Use (Steps 1 - 7) STEP 1 Tower Unfolding MoJack EZ Locking Pin • Pull and rotate Tower Locking Pin 90 degrees to the (locked position) unlocked position. • Raise the Tower by pulling up on the Grip Handle. Once the Tower is in the vertical position, lift up on the Grip Handle and drop the Tower into the Base.
  • Page 11 Wheel Pad, RH Wheel Pad, LH STEP 4 Familiarize Yourself with the MoJack EZ • Practice raising and lowering the Lift Arm before attempting to lift the mower (see Steps 11 – 14 on how to raise and lower the Lift Arm).
  • Page 12 Using the MoJack EZ (Steps 8 - 15) STEP 8 Move Mower onto MoJack EZ The MoJack EZ must be used on a solid level surface. • Drive or roll the mower onto the Wheel Pads. Stop engine and remove the key.
  • Page 13 • See Step 19 for raising the mower with drill attachment. Do not attempt to lift more than 300 lbs. The MoJack EZ must be used on a solid level surface. The engine must be turned off and key removed.
  • Page 14 MoJack EZ Lift Operating Instructions STEP 12 Carrier Raising Lift Arm to Locking Position Locking • Raise the Lift Arm until the Carrier Locking Pin drops into the Safety Hole. Pull Out • The Carrier Locking Pin automatically drops into the Safety Holes as the Carrier passes the Safety Holes on the Tower when raising.
  • Page 15 • Remove the Safety Straps from front mower tires. • Removing Support Rods is optional during this step. • Drive or roll the mower off of the Wheel Pads. Preparing the MoJack EZ for Storage (Steps 16 - 18) STEP 16 Push Pin Removing the Wheel Pads •...
  • Page 16 STEP 19 Raising the MoJack EZ with a power drill (optional) • The MoJack EZ can be raised or lowered by using a variable speed corded drill (7 amp minimum) or variable speed cordless drill (18V minimum). • The drill will require a 3/8” square driver (not provided).

  • Page 17: Maintenance Schedule

    Pull Out Thread. If Carrier Locking Pin does not hold Lift Arm to Lower height, do not use the MoJack EZ and contact MoJack at 1-877-575-3173. After checking Carrier Locking Pin Safety Hole operation, proceed to lower by pulling out on the Carrier...
  • Page 18 MoJack EZ Lift Support Rod Guide for Tire Sizes 10” – 11.5” Tire Size (25cm – 29cm) 12” – 15” Tire Size (30cm – 38cm) 15.5” – 17” Tire Size (39cm – 44cm)
