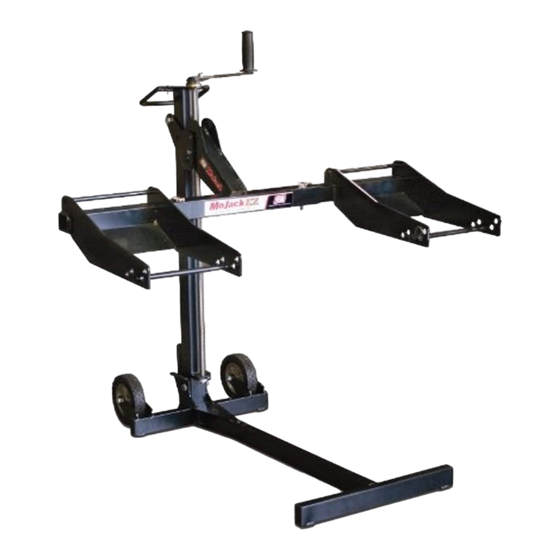

MoJack EZ Repair Instructions

Review the Product Manual and Parts List for MoJack EZ at www.themojack.com. The detailed breakout
drawing includes all part numbers used in these instructions.
DO NOT attempt any repairs on your MoJack if there is a mower on the lift.

PROBLEM: Damaged Bronze Nut

Probable Excessive load (maximum lifting capacity for MoJack EZ is 300 lbs.) bent Lift Screw or
cause: damaged thread on lift screw.

Solution: Replace Bronze Nut (Carrier) #28

Tools needed: • Hammer
• Small 1/8 pin punch
• Large 5/16 pin punch
• Two 19mm wrenches or two adjustable wrenches

Steps to make the repair:

1) Place the MoJack EZ lift on its side and position Crank Handle
#4 so that it cannot move.
•
2)
Using a small punch, tap all parts of the existing Roll Pin #32
out of the hole at the bottom of the Lift Screw #1.
•
DO NOT try to drill out a broken Roll Pin as it may cause
damage to the hole.
•
Remove Flat Washer #27 from Lift Screw.
3) Unscrew the Lift Screw out of the Bronze Nut #28 in the Carrier
Assembly #30, by turning the Crank Handle counter-clockwise.
If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.
© MoJack July 2012 Rev. 2
EZ Repair Instructions
Damaged Bronze Nut
1
