QUICK START GUIDE
ICE
UCNP115

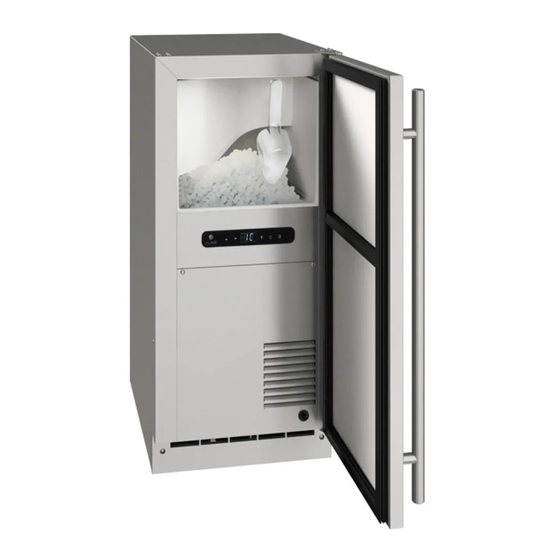

15" NUGGET ICE MACHINE
•
•
30657_E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCNP115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line UCNP115

Summary of Contents for U-Line UCNP115

  • Page 1 QUICK START GUIDE UCNP115 15” NUGGET ICE MACHINE • • 30657_E...
  • Page 2 U-Line Customer Care must be contacted immediately at +1.414.354.0300. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.

  • Page 3: Table Of Contents

    This Quick Start Guide covers the basics of installation and general use of your product. CONTENTS Safety and Warning Environmental Requirements Electrical Water Hookup Measure TDS Drain Door Swing Door Adjustments General Installation Control Operation First Use Cleaning Warranty For more details, see the complete User Guide & Service Manual on u-line.com.

  • Page 4: Safety And Warning

    QUICK START GUIDE Safety and Warning NOTICE DANGER Please read all instructions before installing, operating, or servicing the appliance. Service must be done by factory authorized service personnel. Any parts shall be replaced Use this appliance for its intended purpose only and follow with like components.
  • Page 5 Allow unit temperature to stabilize for 24 hours before use. Do not block any internal fans. Use only genuine U-Line replacement parts. Imitation parts can damage the unit, affect its operation or performance and may void the warranty.

  • Page 6: Environmental Requirements

    QUICK START GUIDE Environmental Requirements Electrical This model is intended for indoor/interior applications only DANGER and is not to be used in installations that are open/ exposed to natural elements. SHOCK HAZARD - Electrical Groundining This unit is designed to operate between 50°F (10°C) and Required.

  • Page 7: Water Hookup

    Water Treatment Options ◦ TDS level of 200 ppm or higher and/or a hardness of 12-19 gpg can be treated by U-Line’s in-line Leave meter immersed for 30 seconds. water filter accessories available at u-line.com or your Remove meter and check the readout for the TDS...
  • Page 8 USER GUIDE QUICK START GUIDE Based upon the TDS measurement, see the below table HOOKUP WATER to determine the correct filter required to protect the Turn off water supply and disconnect electrical supply ice machine. to product prior to attempting installation. Water Quality 1-3 Users 4+ Users...

  • Page 9: Drain

    1/4" Min. 2" Min. Water requirements for a gravity drain, you may have ordered a Water pre-installed U-Line P60 drain pump. 21" 21" NOTICE If you need to install a P60 drain pump into your unit, see DRAIN PUMP section in the User Manual.

  • Page 10: Door Adjustments

    USER GUIDE QUICK START GUIDE Door Adjustments TO REVERSE THE DOOR HINGE COVER Hinge cover included with the literature bag is optional. To install hinge cover: Press hinge cover squarely over hinge. Hinge Cover Remove arrow clips: With a puddy knife or other flat tool, gently pry each arrow clip from hinge mounting holes.
  • Page 11 QUICK START GUIDE USER GUIDE Remove the 3 pieces of Remove door by tilting forward and lifting door off gasket channel filler and bottom hinge. Retain shoulder washers; they will be set aside to be used on the reused. opposite end. Insert arrow clips into holes Remove 2 screws holding plunger bracket.

  • Page 12: General Installation

    QUICK START GUIDE General Installation INSTALLATION LEVELING INFORMATION Plug in the power/electrical cord. CAUTION Gently push the unit into position. Be careful not to entangle the cord or water and drain lines, if To comply with applicable federal, state, and applicable.

  • Page 13: Control Operation

    If the temperature displayed is different than selected, the unit is progressing towards the selected temperature. Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. U-Line recommends allowing the unit to reach set points before loading.

  • Page 14: Ice

    Single and Double Tap Tower Kits User Guide on The factory default ice setting is 0, which produces a firm u-line.com. and compact ice nugget. U-Line’s exclusive U-Choose™ ice NUGGET ICE MACHINE CLEANING CYCLE adjustability feature allows you five levels of adjustment from 0 to -5.
  • Page 15 Register your product at u-line.com and receive a Dispenser free cleaning kit - ULANUGGETCLEANKIT** Tube (cleaner, hose, & funnel) ** available for purchase at u-line.com or your local dealer Need more cleaner? Visit u-line.com Press and release will appear in the display CAUTION b.
  • Page 16 QUICK START GUIDE 6. When appears in the display, 3 soft tones will sound, indicating the cleaning phase is complete a. Remove and discard water filter if applicable by rotating 1⁄4 turn counterclockwise. b. Use the remaining cleaning solution to wipe the manifold and surrounding area.

  • Page 17: Warranty

    For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.

Table of Contents
