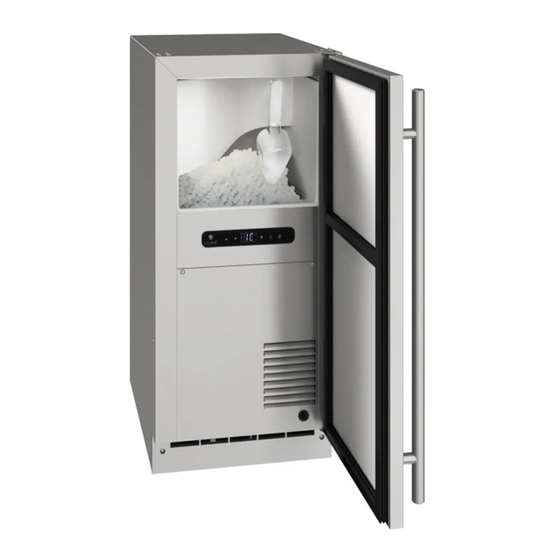

15” nugget ice machine
Hide thumbs Also See for UCNP115:
Table of Contents

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
ICE
UCNP115
15" NUGGET ICE MACHINE
•
•
30657_B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCNP115 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line UCNP115

Summary of Contents for U-Line UCNP115

  • Page 1 QUICK START GUIDE UCNP115 15” NUGGET ICE MACHINE • • 30657_B...
  • Page 2 ® to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available worldwide.

  • Page 3: Table Of Contents

    This Quick Start Guide covers the basics of installation and general use of your product. CONTENTS Safety and Warning Environmental Requirements Electrical Water Hookup Drain Door Swing Door Adjustments General Installation Control Operation First Use Cleaning Warranty For more details, see the complete User Guide & Service Manual on u-line.com.

  • Page 4: Safety And Warning

    QUICK START GUIDE u-line.com Safety and Warning NOTICE DANGER Please read all instructions before installing, operating, or servicing the appliance. Service must be done by factory authorized service personnel. Any parts shall be replaced Use this appliance for its intended purpose only and follow with like components.

  • Page 5: Environmental Requirements

    40°F (4°C) or below are not covered by the warranty. The water valve uses a standard 1/4” (6.35 mm) compression fitting. U-Line recommends using accessory Electrical water hook up kit – part # 80-54674-00. The kit includes a 10’ (3 m) braided flexible water supply line and a brass hose fitting.
  • Page 6 QUICK START GUIDE u-line.com • Water has less than 400 mg/L (ppm) total dissolved Turn off water supply and disconnect electrical supply solids and hardness level below 200 mg/L (ppm) — to product prior to attempting installation. i.e., below 12 grains per gallon. Check by using TDS meter or consulting with local water company.

  • Page 7: Drain

    DRAIN CONNECTION CAUTION With Trap and Vent Proper Drain If your U-Line unit did not come with a factory installed drain pump you must use a gravity A gravity drain may be used if: style drain connection. For assistance in Drain line has at least a 1”...

  • Page 8: Door Swing

    Door Swing Door Swing (Optional Hook-Up) or spigot assembly, or does not otherwise meet the requirements for a gravity drain, you may have ordered a pre-installed U-Line P60 drain pump. Stainless Models Black and White Models Waste 2115WC Models Shut-Off...

  • Page 9: Door Adjustments

    QUICK START GUIDE u-line.com Door Adjustments REVERSING THE DOOR Location of the unit may make it desirable to mount the HINGE COVER door on the opposite side of the cabinet. Hinge cover included with the literature bag is optional. The hinge hardware will be removed and reinstalled on the opposite side of the cabinet.
  • Page 10 QUICK START GUIDE u-line.com Remove door by tilting forward and lifting door off Prepare door for reinstallation: bottom hinge. Retain shoulder washers; they will be reused. Remove gasket. This will reveal mounting holes for the Remove three screws from hinge holes on the magnet assembly.

  • Page 11: General Installation

    QUICK START GUIDE u-line.com General Installation INSTALLATION Plug in the power/electrical cord. LEVELING INFORMATION Gently push the unit into position. Be careful not CAUTION to entangle the cord or water and drain lines, if applicable. To comply with applicable federal, state, and local...

  • Page 12: Control Operation

    If the temperature displayed is different than selected, the unit is progressing towards the selected temperature. Time to reach set point varies based upon ambient temperature, temperature of product loaded, door openings, etc. U-Line recommends allowing the unit to reach set points before loading.

  • Page 13: Ice

    The factory default ice setting is 0, which produces a firm If any surface discoloring or rusting appears, clean it and compact ice nugget. U-Line’s exclusive U-Choose™ ice quickly with Bon-Ami or Barkeepers Friend Cleanser ®...
  • Page 14 Depending on water conditions, more frequent cleaning may be necessary: see chart below. Cleaning removes lime scale, Need more cleaner? Visit u-line.com other mineral deposits, and sanitizes the machine. Poor ice quality and reduced ice output are signs that cleaning is...
  • Page 15 Rinse with clean potable water. and odors. U-Line recommends replacing the filter (Part No. ULANUGGETFILTER) when you When appears in the display, 3 soft tones will clean your machine.

  • Page 16: Warranty

    For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
