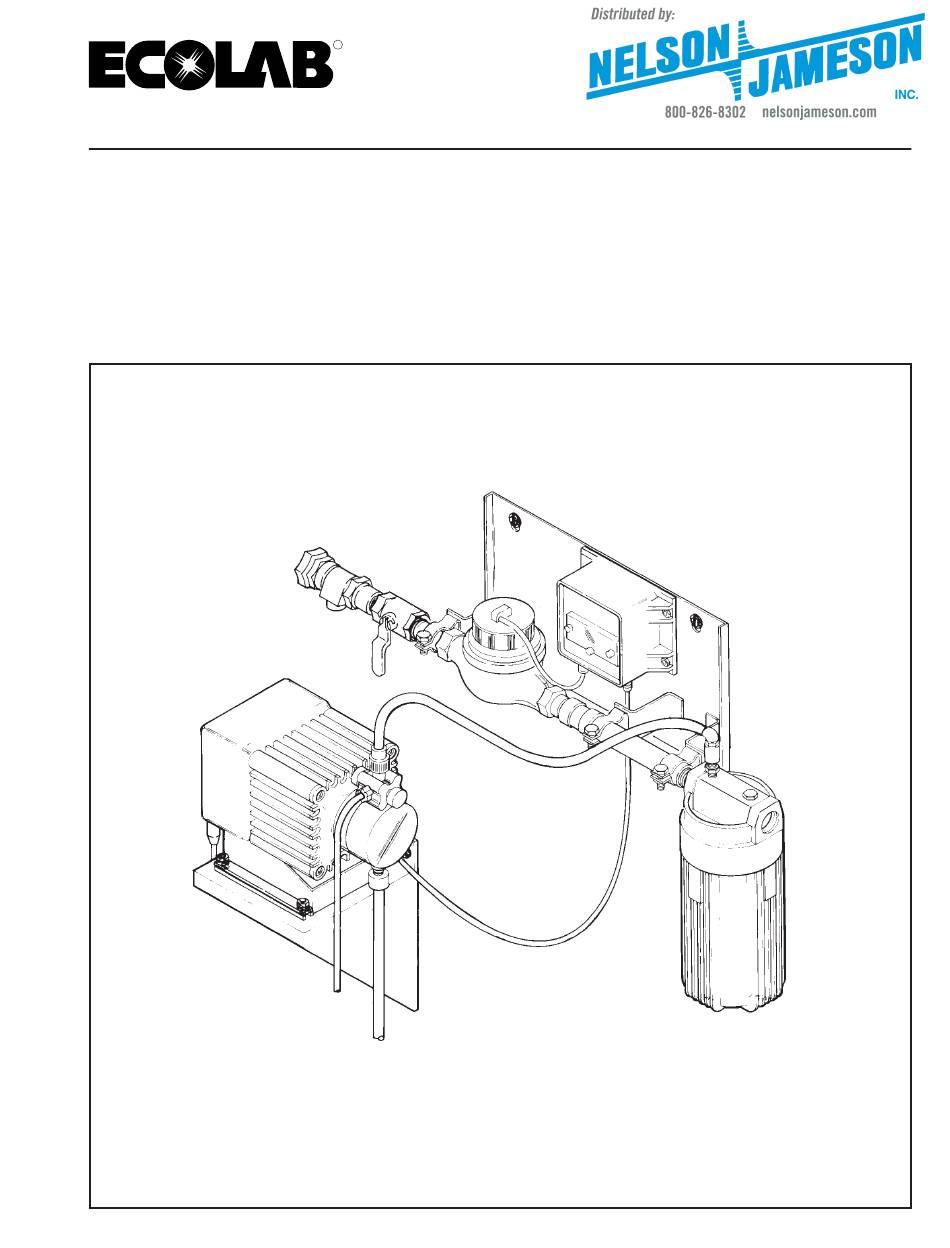

- Page 1 MIKRO-MASTER 300 INSTALLATION AND OPERATION MANUAL 18182/0307/0405 Copyright Ecolab Inc. 2005 9403-2067...
-
Page 2: Table Of Contents
TABLE OF CONTENTS MIKRO-MASTER 300 INSTALLATION AND OPERATION MANUAL Section 1.0 PREFACE ..........................1 Section 2.0 INTRODUCTION ........................1 Section 3.0 SPECIFICATIONS ....................... 2 3.1 Dimensions ..........................2 3.2 Services Requirements ......................2 3.3 Equipment Supplied ......................... 2 3.4 Equipment Not Supplied ......................2 Section 4.0... -
Page 3: Preface
1.0 PREFACE 2.0 INTRODUCTION This manual has been written to present the basic installation The Mikro-Master 300 dispenser is a water driven meter, and operational characteristics of the Mikro-Master 300. This proportioning sanitizer/lube system which offers ease of in- manual applies, in its entirety, to current units. -
Page 4: Specifications
3.0 SPECIFICATIONS Installation Diagram 3.1 Dimension 3.3 Equipment Supplied The Mikro-Master 300 dispenser is supplied with a backflow • Height: 22" (55 cm) • Length: 48" (121.9 cm) preventer. This backflow preventer should be installed just before the shut-off valve to the flow meter. The mixing cham- •... -
Page 5: Installation Procedures
4.0 INSTALLATION PROCEDURES MIKRO-MASTER MANIFOLD WARNING - THESE INSTALLATION AND SERVICE IN- ASSEMBLY STRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY. THE INSTALLATION MUST BE IN ACCORDANCE WITH THE LOCAL PLUMBING CODES. 1. Remove the water manifold assembly from the shipping carton and mount on the wall immediately adjacent to the water line using the screws and wall anchors provided, refer to Figure1. - Page 6 PROGRAMMABLE DIVIDER NOTE - insure pump is mounted close enough to flow meter manifold assembly for the length of cable con- nector wire available from the programmable divider. 5. Using the drum probe, 1/2" (12.7mm) tubing and fittings provided, plumb the drum probe to the bottom connector on the pump head, refer to Figure 5.
-
Page 7: Start-Up Procedures
6.0 START-UP PROCEDURES PROGRAMMABLE ANTI-SIPHON DIVIDER INLET VALVE VALVE DIVIDER (OPTIONAL) NUMBERS FLOW METER DRAIN MIXING TUBING CHAMBER PRODUCT TUBING Figure 7 The dosage ratio is an amount of chemical solution to be DOSAGE DIVIDER NO. added or injected into an amount of water using the same unit PRODUCT RATIO SETTING... -
Page 8: Troubleshooting
7.0 TROUBLESHOOTING PROBLEM CAUSE OR FAILURE MODE ACTION Mikro-Master 300 does not operate. No 120VAC power. Check power source to pump. Internal - OFF - External switch on Place switch in External position. pump in OFF position. No water flow through the system. -
Page 9: Replacement Parts
MIKRO-MASTER 300 REPLACEMENT PARTS SEE DETAIL "B" SEE DETAIL "A" INCLUDED WITH KIT REF. NO. 19 INCLUDED WITH KIT REF. NO. 23 INCLUDED WITH KIT REF. NO. 24 DETAIL A DETAIL B (MM-300 Conversion Kit) SECTION: MIKRO-MASTER... - Page 10 MIKRO-MASTER 300 REPLACEMENT PARTS REF. REF. PART NO. DESCRIPTION PART NO. DESCRIPTION 8524-1511 BACKFLOW PREVENTER 3/4 FPT 9403-1077 MM-300 METER CONVERSION KIT #8495-0179 WATER METER (INCLUDES REF. 8480-7734 PUMP HEAD ONLY NO. 3) 8511-1706 NIPPLE, 3/4 X 7 8480-5969 SENSOR ASM 8480-3857 4-FUNCTION VALVE KIT 8524-4044 CHECK VALVE 3/4"...
