XFW5000

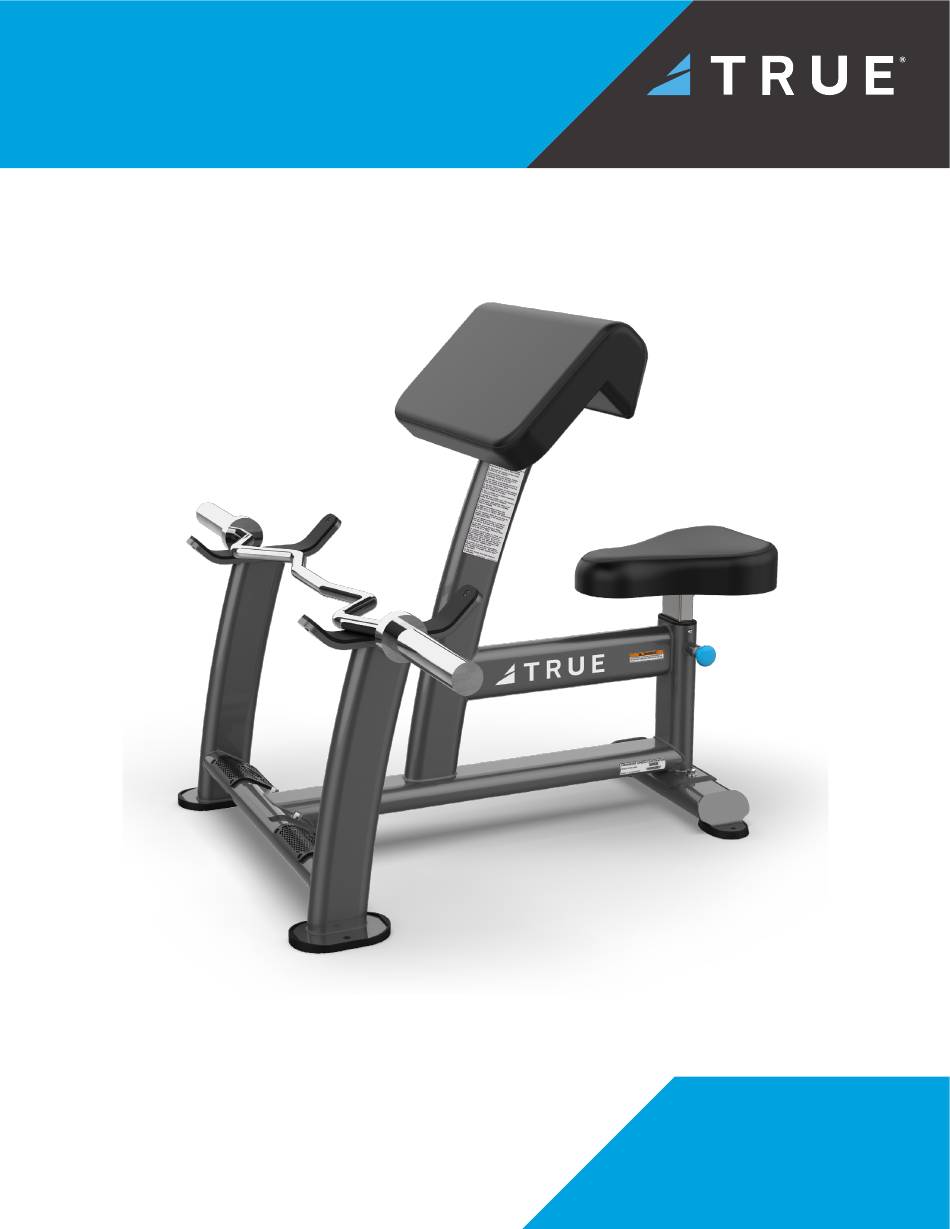

PREACHER CURL
MODEL XFW5000-19
(MAN-XFW5000 REV00)
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XFW5000 and is the answer not in the manual?

Questions and answers

Related Manuals for True XFW5000

Summary of Contents for True XFW5000

  • Page 1 XFW5000 PREACHER CURL OWNER’S MODEL XFW5000-19 MANUAL (MAN-XFW5000 REV00)
  • Page 3 IMPORTANT! All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the current owner’s manual and documents in additional languages please visit https://truefitness.com/support/user-manuals/ IMPORTANTE! Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir. Especificaciones de productos, características y software están sujetas a cambios sin previo aviso.
  • Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
  • Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to file a claim if the carrier is not notified in a timely manner.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1—SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 GENERAL CARE AND MAINTENANCE..........................9 DIMENSIONS AND WEIGHTS..............................10 WARNING AND INTENDED USE LABELS...........................11 CHAPTER 2—ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS................................14 CHAPTER 3—PARTS DIAGRAM PARTS DIAGRAM.................................18 CHAPTER 4—WARRANTY INFORMATION XFW5000 COMMERCIAL LIMITED WARRANTY........................20...

  • Page 7: Chapter 1-Safety Instructions

    ● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. ● Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.

  • Page 9: General Care And Maintenance

    When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefitness.com // 800.883.8783).

  • Page 10: Dimensions And Weights

    DIMENSIONS AND WEIGHTS ● BOX DIMENSIONS (L X W X H) 38.5” X 33” X 13.5” / 98 cm x 84 cm x 34 cm ● ASSEMBLED DIMENSIONS (L X W X H) 43” x 33” x 38” / 109 cm x 83 cm x 96 cm PRODUCT WEIGHT ●...

  • Page 11: Warning And Intended Use Labels

    WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefitness.com // 800.883.8783). XFW-5000 Preacher Curl Bench SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE 1.

  • Page 12: Chapter 2-Assembly Instructions Pre-Assembly Checklist

    XFW53-BF000XBK ASSEMBLY, FOOT FRAME, CHARCOAL PAD-ST001-00X PAD, SEAT, TAPERED, BLACK WITH SINGLE BLACK STITCH PAD-XFW50-00X PAD, ARM CURL, BLACK WITH SINGLE BLACK STITCH XFW50-AD030 WELDMENT, SEAT ADJ FRAME XFW50-PL001BK ARM PAD PLATE, CHARCOAL XFW50-HW HARDWARE PACK, XFW5000 MAN-XFW5000 MANUAL, XFW5000...
  • Page 13 HARDWARE PACK CONTENTS PART NUMBER DESCRIPTION FHCS, 3/8”-16 X 3/4” C 657 LOCK NUT, 3/8”-16, NYL INS JAM NUT C 766A HHS, 3/8”-16, 1-1/4” C 446 LOCK WASHER, 3/8”, ZP C 749 WASHER, FLAT, 3/8” USS C 754C BASE WASHER, PLASTIC CAP, 3/8” BOLT C 955A CAP, PLASTIC, BOLT CAP, BLACK C 955SBK...

  • Page 14: Assembly Steps

    ASSEMBLY STEPS STEP 1—ATTACH BAR SUPPORT FRAME AND FOOT FRAME TO MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting XFW50-SF030XBK ASSEMBLY, MAIN FRAME, CHARCOAL Socket Wrench XFW50-FF030XBK ASSEMBLY, BAR SUPPORT FRAME, CHARCOAL XFW53-BF000XBK ASSEMBLY, FOOT FRAME, CHARCOAL C 446 HHS, 3/8"-16, 1-1/4"...
  • Page 15 STEP 2—ATTACH SEAT FRAME TO MAIN FRAME AND SEAT PAD TO SEAT FRAME TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting XFW50-SF030XBK ASSEMBLY, MAIN FRAME, CHARCOAL Socket Wrench XFW50-AD030 WELDMENT, SEAT ADJ FRAME PAD-ST001-00X PAD, SEAT, TAPERED, BLACK WITH SINGLE 1/4”...
  • Page 16 STEP 3—ATTACH ARM PAD PLATE TO MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting XFW50-SF030XBK ASSEMBLY, MAIN FRAME, CHARCOAL Socket Wrench XFW50-PL001BK ARM PAD PLATE, CHARCOAL C 657 FHCS, 3/8”-16 X 3/4” 7/32” Allen Wrench C 766A LOCK NUT, 3/8”-16, NYL INS JAM NUT C 955A BASE WASHER, PLASTIC CAP, 3/8”...
  • Page 17 STEP 4—ATTACH ARM CURL PAD TO ARM PAD PLATE TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting PAD-XFW50-00X PAD, ARM CURL, BLACK WITH SINGLE BLACK Socket Wrench STITCH XFW50-PL001BK ARM PAD PLATE, CHARCOAL C 446 HHS, 3/8"-16, 1-1/4" C 749 LOCK WASHER, 3/8", ZP C 754C WASHER, FLAT, 3/8"...

  • Page 18: Parts Diagram

    SHCS, 5/16"-18 X 1" C1301 BHCS, M6 X 12MM, ZP CC-35-017 HEX NUT, M6-1 FS50-PIN-100XBK SUBASSEMBLY, POP PIN, 1/2" DIA, BLUE LBL-LOG-010BK LABEL, 10" NEW TRUE LOGO, WHITE LBL-PR-XFW50 LABEL, INTENDED USE, XFW5000 LBL-WRN-0010 LABEL, XFW GENERAL WARNING ITEM PART SD0011...
  • Page 19 XFW50-FF030XBK ITEM PART DESCRIPTION C 651B FHCS, 1/4"-20 X 5/8" C 880 SCREW, #10 X 5/8 PAN HD SHEET METAL S 574ABK FOOT GRIP, 100 X 50MM RACETRACK TUBE, BLACK ITEM PART SF0003 FOOT, DOUBLE OVAL, 62 X 102 C 651B XFW50-FF030BK WELDMENT, BAR SUPPORT FRAME, CHARCOAL C 880...

  • Page 20: Chapter 4-Warranty Information

    HOURS OF OPERATION • This product is intended for Commercial use. If this product will not be used in this particular setting, please contact TRUE as this • Monday - Thursday 8:30am - 6:00pm (CST) warranty is void. •...
  • Page 21 SERIAL NUMBER: within 30 days of purchaser’s receipt of this Product. The serial The XFW5000 comes with one serial number on the base of the number must be intact on the Product for this Limited Warranty to machine. Please write down your serial number below and keep for your be valid.
  • Page 22 Activate Multiple Warranties at truefitness.com Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefitness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
  • Page 24 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
