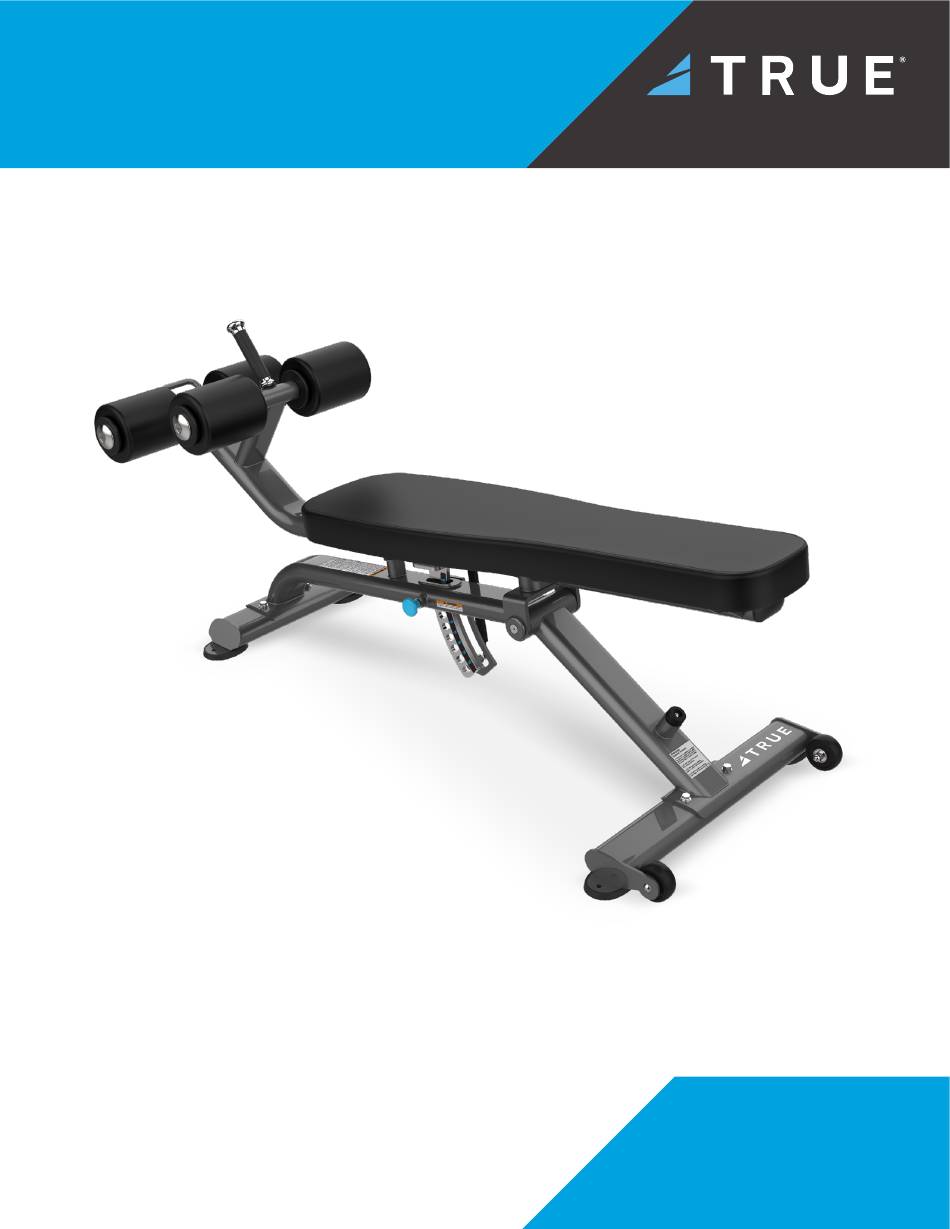

- Page 1 XFW5300 ABDOMINAL/DECLINE BENCH OWNER’S MODEL XFW5300-19 MANUAL (MAN-XFW5300 REV01)
- Page 3 IMPORTANT! All products shown are prototype. Actual product delivered may vary. Product specifications, features, and software are subject to change without notice. For the current owner’s manual and documents in additional languages please visit https://truefitness.com/support/user-manuals/ IMPORTANTE! Todos los productos mostrados son prototipos. La realidad el producto suministrado puede diferir. Especificaciones de productos, características y software están sujetas a cambios sin previo aviso.
- Page 4 You can count on TRUE Fitness for the best service in the industry, provided by a team focused on optimizing the life of your equipment.
- Page 5 You may receive a shipment that looks intact and discover once the box has been opened that there are hidden damages. Please notify the carrier immediately. TRUE will not be able to file a claim if the carrier is not notified in a timely manner.
-
Page 6: Table Of Contents
TABLE OF CONTENTS CHAPTER 1—SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS—SAVE THESE INSTRUCTIONS................7 GENERAL CARE AND MAINTENANCE..........................9 DIMENSIONS AND WEIGHTS..............................10 WARNING AND INTENDED USE LABELS...........................11 CHAPTER 2—ASSEMBLY INSTRUCTIONS PRE-ASSEMBLY CHECKLIST..............................12 ASSEMBLY STEPS................................14 CHAPTER 3—PARTS DIAGRAM PARTS DIAGRAM.................................18 CHAPTER 4—WARRANTY INFORMATION XFW5300 COMMERCIAL LIMITED WARRANTY........................20... -
Page 7: Chapter 1-Safety Instructions
● If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine. - Page 8 Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. ● Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
-
Page 9: General Care And Maintenance
When replacing any component, use only TRUE supplied parts. ● Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE product support (service@truefitness.com // 800.883.8783). -
Page 10: Dimensions And Weights
DIMENSIONS AND WEIGHTS ● BOX DIMENSIONS (L X W X H) ● PRODUCT WEIGHT 68” X 30.5” X 10.2” / 173 cm x 78 cm x 26 cm 103 lbs / 47 kg ● ASSEMBLED DIMENSIONS (L X W X H) ●... -
Page 11: Warning And Intended Use Labels
WARNING AND INTENDED USE LABELS WARNING: Replace all labels that may be worn, damaged, or missing. To replace any worn or missing decals contact TRUE product support (service@truefitness.com // 800.883.8783). XFW-5300 Adjustable Ab Bench SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW THESE 1. -
Page 12: Chapter 2-Assembly Instructions
ASSEMBLY, BASE FRAME W/WHEELS, CHARCOAL XFW53-MF000XBK MAIN FRAME ASSY, CHARCOAL PAD-RL003-00B ROLLER PAD, SHORT, W/VINYL PAD-XFW53-00X ASSEMBLY, BACK PAD (W/ FABRIC) XFW53-PF100 WELDMENT, ANKLE PAD AXLE QD22-480-250 GAS SPRING, 280MM / 480MM, 250N XFW53-HW HARDWARE PACK, XFW5300 MAN-XFW5300 MANUAL, XFW5300... - Page 13 HARDWARE PACK CONTENTS PART NUMBER DESCRIPTION HHS, 3/8”-16, 1-1/4” C 446 FHCS, 3/8”-16 X 1-1/4”, ZP, LOCK PATCH C 659ZP BH SCREW, 3/8”-16, 1” C 678 LOCK WASHER, 3/8”, ZP C 749 WASHER, FLAT, 3/8” USS C 754C BASE WASHER, PLASTIC CAP, 3/8” BOLT C 955A CAP, PLASTIC, BOLT CAP, BLACK C 955SBK...
-
Page 14: Assembly Steps
ASSEMBLY STEPS STEP 1—ATTACH BASE AND FOOT FRAME TO MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting XFW70-BF040XBK ASSEMBLY, BASE FRAME W/WHEELS, CHARCOAL Socket Wrench XFW53-BF000XBK ASSEMBLY, FOOT FRAME, CHARCOAL XFW53-MF000XBK MAIN FRAME ASSY, CHARCOAL C 446 HHS, 3/8"-16, 1-1/4" C 749 LOCK WASHER, 3/8", ZP C 754C... - Page 15 STEP 2—ATTACH PAD FRAME TO MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION 4mm (5/32”) and XFW53-MF000XBK MAIN FRAME ASSY, CHARCOAL 5.5mm (7/32”) XFW53-PF000XBK ASSEMBLY, PAD FRAME, CHARCOAL Allen Wrench XFW53-PF100 WELDMENT, ANKLE PAD AXLE XFW-5700-99 AXLE, PIVOT ARM SD0092 CAP, ALUMINUM 50 X 10.5 X 8 C 659ZP FHCS, 3/8”-16 X 1-1/4”, ZP, LOCK PATCH 1.
- Page 16 STEP 3—ATTACH THE GAS SPRING TO THE PAD FRAME AND MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION Retaining Ring Pliers XFW53-MF000XBK MAIN FRAME ASSY, CHARCOAL XFW53-PF000XBK ASSEMBLY, PAD FRAME, CHARCOAL QD22-480-250 GAS SPRING, 280MM / 480MM, 250N 1. Remove and set aside the retaining ring clips on the gas spring (3). NOTE: To remove the clips, pry under the circular part of the clip, rotate the clip and remove.
- Page 17 STEP 4—ATTACH BACK AND ROLLER PADS TO PAD FRAME AND BUMPER TO MAIN FRAME TOOL NEEDED ITEM PART DESCRIPTION 14mm (9/16”) Ratcheting XFW53-MF000XBK MAIN FRAME ASSY, CHARCOAL Socket Wrench XFW53-PF000XBK ASSEMBLY, PAD FRAME, CHARCOAL PAD-XFW53-00X ASSEMBLY, BACK PAD (W/ FABRIC) 5.5mm (7/32”) Allen PAD-RL003-00B ROLLER PAD, SHORT, W/VINYL...
-
Page 18: Chapter 3-Parts Diagram
LABEL, XFW GENERAL WARNING SD0015 BALL BEARING, 1" ID X 2" OD, FLANGED RPL52033700 BUMPER, 1-1/2" OD X 5/8" THK. SL-XFW5300-19 LABEL, SERIAL, XFW5300-19 SD0015 BALL BEARING, 1" ID X 2" OD, FLANGED XFW-5380-00XBK ASSEMBLY, POP PIN, BLUE SL-XFW5300-19 LABEL, SERIAL, XFW5300-19... - Page 19 ITEM PART DESCRIPTION C1501 SET SCREW, M8 X 10MM LONG C 659ZP FHCS, 3/8"-16 X 1-1/4", ZP, LOCK PATCH IT90102100 CAP, ALUMINUM GRIP , 1" DIAMETER IT90102200X ALUMINUM GRIP SLEEVE, 1" DIAMETER (W/ SET SCREWS) XFW53-PF000XBK SF0006 END PLUG, 50X100 RACETRACK OVAL, DOMED XFW-5740-99 GRIP, 25M ID X 120M LONG ITEM...
-
Page 20: Chapter 4-Warranty Information
HOURS OF OPERATION • This product is intended for Commercial use. If this product will not be used in this particular setting, please contact TRUE as this • Monday - Thursday 8:30am - 6:00pm (CST) warranty is void. •... - Page 21 SERIAL NUMBER: within 30 days of purchaser’s receipt of this Product. The serial The XFW5300 comes with one serial number on the base of the number must be intact on the Product for this Limited Warranty to machine. Please write down your serial number below and keep for your be valid.
- Page 22 Activate Multiple Warranties at truefitness.com Thank you for purchasing a TRUE product. To validate the TRUE product warranty the fast and easy way, please go on- line now to truefitness.com and register your product. The information you provide will never be distributed to any other individuals or agencies for any purpose.
- Page 24 T R U E F I T N E S S . C O M I N T E G R I T Y M A T T E R S TRUE Fitness Technology, Inc | 865 Hoff Road, St. Louis, MO 63366 © 2023 TRUE. All Rights Reserved.
