Summary of Contents for Venduro RA-SMALL

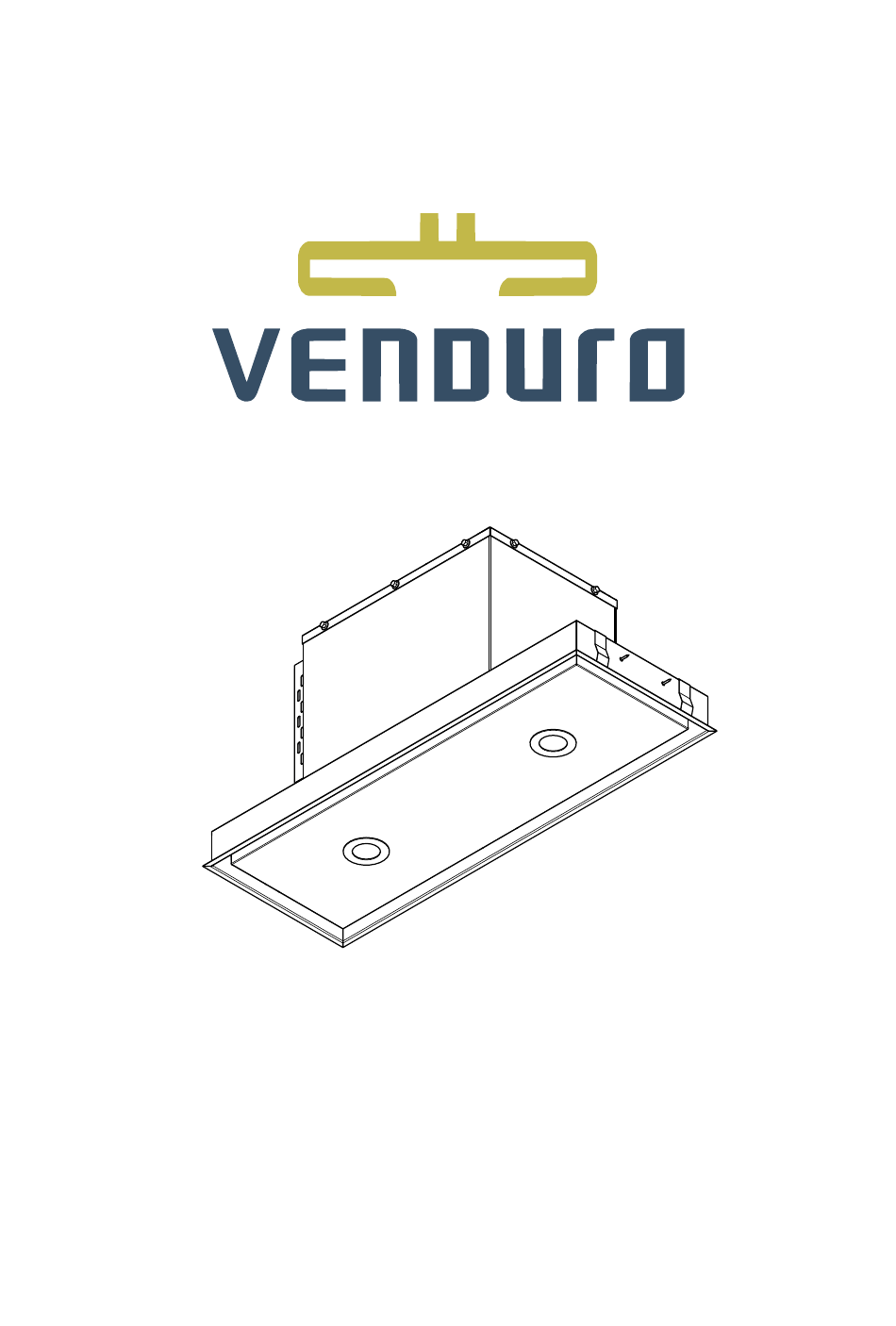

  • Page 1 RA - SMALL Gebruikersaanwijzing...
  • Page 2: Table Of Contents

    Inhoud Veiligheidsvoorschriften � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Algemene veiligheidsvoorschriften �...
  • Page 3: Veiligheidsvoorschriften

    Neem dit toestel met zorg uit de verpakking, controleer de dampkap op schade� Installeer nooit een beschadigde dampkap� Venduro is niet aansprakelijk voor schade of slechte werking van het toestel ten gevolgen van een onjuiste installatie� Raak geen onderdelen aan die onder spanning staan�...
  • Page 4: Veiligheidsvoorschriften Bij Kinderen

    55cm. De kans is groot dat de vetfilters vuur vatten! Wat te doen bij technisch defect Voor een technisch defect aan het toestel kan u contact opnemen met de service dienst van Venduro� Service@venduro�be Tip: reset de dampkap� Dit kan gedaan worden door de spanning van het toestel te ontkoppelen minimum 30 seconden�...
  • Page 5: Touch Bediening

    Touch bediening Functies A� Licht toets B� Motor toets C� Filter indicatie D� Ventilator snelheid Motor aansturen Als de motor aangezet wordt door een druk op toets B, dan start de motor op stand 1� Door een volgende druk op toets B wordt de snelheid met 1 stand verhoogd�...
  • Page 6: Filter Indicatie

    Filter indicatie Na een werktijd van de motor moet de filter gereinigd worden. Als deze filtertijd verstre- ken is, dan zal filter² indicatie op het touch interface oplichten. De filter time-out resetten kan alleen als de filter tijd effectief verstreken is. Filter moet niet gereinigd worden�...
  • Page 7: Verlichting

    Gebruik geen scherp voorwerp, dit kan de dampkap beschadigen� Voor vervang onderdelen kan je contact opnemen met de servies dienst van Venduro� Service@venduro�be Vetfilters Het is aangewezen dat u de vetfilters om de 2 weken reinigt! Dit kan gebeuren in de vaatwasmachine of u legt de filters in een oplossing van kokend water met detergent of sodakorrels.
  • Page 8: Openen Paneel

    Openen paneel Uitnemen vetfilters Uitnemen koolstoffilter...
  • Page 9: Installatie

    Installatie Afmeting dampkap RA80-MM RA110-MM 1100 1082 Te maken opening RA80-MM RA110-MM 1085...
  • Page 10: Monteren Dampkap

    Monteren dampkap Afvoerkanaal Hoe minder de afvoer geremd wordt hoe groter het debiet en aldus het nuttige effect van uw dampafvoer� Probeer de kanalen zo kort mogelijk te houden en zo weinig moge- lijk bochten te gebruiken� Monteren 60x60...
  • Page 11: Elektrisch Schema

    Elektrisch schema...
  • Page 13: Waarborgcertificaat

    5 jaar, volgens de hieronder vermelde voorwaarden� VENDURO apparaten worden gefabriceerd met de grootst mogelijke zorg en met de beste materialen� Dit laat ons ook toe een waarborg te geven tegen iedere construc- tiefout, die zich mocht voordoen gedurende de eerste 5 jaar na verkoop van de vak handelaar of keukeninstallateur aan de eerste afnemer�...
  • Page 14: Garantie

    Factuurdatum : �������������������������������������������������������������������������������������������������������������������������������������������� Garantie Garantie Verkoopdatum : ������� / ����� / ���������� Uw dealer : �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� 5 JAAR GARANTIE De firma VENDURO B.V.B.A. behoudt zich het recht, ten alle tijde, en zonder voorbe- houd hun producten te wijzigen�...
  • Page 15 RA - SMALL Manuel...
  • Page 16 Sommaire Instructions de sécurité � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 17 Instructions générales de sécurité�...
  • Page 17: Instructions De Sécurité

    Sortez soigneusement l’appareil de son emballage et vérifiez que la hotte n’est pas endommagée� N’installez jamais une hotte endom- magée� Venduro n’est pas responsable des dommages ou des dysfonction- nements de l’appareil causés par une installation incorrecte� Ne touchez pas les composants sous tension�...
  • Page 18: Instructions De Sécurité À L'égard Des Enfants

    élevé ! Que faire en cas de défaillance technique Si l’appareil présente un défaut technique, contactez le service après-vente de Venduro : Service@venduro�be Astuce : réinitialisez la hotte. Il vous suffit de mettre l’appareil hors tension pendant au moins 30 secondes�...
  • Page 19: Commande Tactile

    Commande tactile Fonctions A� Touche éclairage B� Touche ventilateur C� Indicateur du filtre D� Vitesse du ventilateur Commander le ventilateur Lorsque le moteur est allumé d'une pression sur la touche B, il démarre en position 1� En appuyant une nouvelle fois sur la touche B, la vitesse passe à la position supérieure� Si la fonction boost est déjà...
  • Page 20: Indicateur Du Filtre

    Indicateur du filtre Le filtre doit être nettoyé après un certain nombre d'heures de fonctionnement du moteur. Une fois la durée de vie du filtre dépassée, l'indicateur du filtre s'allumera sur l'interface tactile. La temporisation du filtre ne peut être réinitialisée que si la durée de vie du filtre a été...
  • Page 21: Éclairage

    N'utilisez pas d'objet pointu, car cela pourrait endommager la hotte� Pour obtenir des pièces de rechange, con- tactez le service après-vente de Venduro� Service@venduro�be Filtres à graisse Nous vous recommandons de nettoyer les filtres à graisse toutes les deux semaines ! Pour ce faire, vous pouvez mettre les filtres au lave-vaisselle ou les plonger dans une solution d’eau bouillante et de détergent ou de cristaux de soude�...
  • Page 22: Ouverture Du Panneau

    Ouverture du panneau Retrait des filtres à graisse Retrait du filtre à charbon...
  • Page 23: Installation

    Installation Dimensions de la hotte RA80-MM RA110-MM 1100 1082 Ouverture à créer RA80-MM RA110-MM 1085...
  • Page 24: Montage De La Hotte

    Montage de la hotte Conduit d’évacuation Moins l’évacuation sera freinée, plus le débit sera élevé et plus votre extraction sera efficace. Tâchez de réduire le plus possible la longueur des conduits et le nombre de coudes� Montage 60x60...
  • Page 25: Schéma Électrique

    Schéma électrique...
  • Page 27: Certificat De Garantie

    5 ans sur votre appareil, aux conditions énumérées ci-dessous� Les appareils VENDURO sont fabriqués au moyen de matériaux de première qualité et avec le plus grand soin. Ce qui nous permet, par ailleurs, de vous offrir une garantie contre tout vice de construction qui pourrait survenir au cours des 5 premières années...
  • Page 28: Garantie

    Date de vente de la garantie : ������� / ����� / ���������� Votre revendeur : �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� 5 ANS DE GARANTIE L’entreprise VENDURO SPRL se réserve le droit d’apporter des modifications à ses produits à tout moment et sans réserve...
  • Page 29 RA - SMALL User Manual...
  • Page 30 Content Safety Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 31 General Safety Instructions �...
  • Page 31: Safety Instructions

    Carefully remove this appliance from its packaging, and check the cooker hood for damage� Never install a damaged cooker hood� Venduro does not accept any liability for any damage or for any incorrect operation of the appliance as a result of an incorrect instal- lation�...
  • Page 32: Child Safety Instructions

    What To Do in the Event of a Technical Fault If the appliance develops a technical fault, please contact the Vend- uro service department� Service@venduro�be Tip: Reset the cooker hood. You can do this by simply switching off the power to the appliance for a minimum of 30 seconds�...
  • Page 33: Touch Control

    Touch Control Functionalities A� Light button B� Motor button C� Filter indicator D� Fan speed Motor Control Press button B to switch on the motor to position 1� Press button B again to increase the speed by 1 position� If the motor is already in the boost position, renewed pressing of B will switch off the motor again�...
  • Page 34: Filter Indicator

    Filter Indicator The filter will need cleaning when the motor has been operating for a certain time. The filter indicator on the touch interface will light up to notify the user that the filter has timed out. The filter time-out can only be reset when the filter time has effectively expired. Filter does not need cleaning�...
  • Page 35: Lighting

    For replacement parts, you can contact the Venduro service� Service@venduro�be Grease Filters It is recommended to clean the grease filters every 2 weeks! Clean them in the dish- washer or place the filters in a solution of boiling water and washing-up liquid or soda crystals.
  • Page 36: Opening Panel

    Opening Panel Removing Grease Filters Removing Carbon Filter...
  • Page 37: Installation

    Installation Cooker Hood Dimensions RA80-MM RA110-MM 1100 1082 Aperture Required RA80-MM RA110-MM 1085...
  • Page 38: Fitting Cooker Hood

    Fitting Cooker hood Discharge Ducting The less the discharge ducting is obstructed, the higher the flowrate and performance of the fume extraction� Try to keep the ducting as short as possible and avoid bends as much as possible� Fitting 60x60...
  • Page 39: Electrical Diagram

    Electrical Diagram...
  • Page 41: Guarantee Certificate

    Guarantee Certificate Every VENDURO cooker hood system and component has been manufactured with the utmost precision and care and using state-of-the-art equipment� This enables us to provide you with a full 5-year guarantee for your appliance, subject to the terms and conditions below�...
  • Page 42: Guarantee

    Invoice Date : �������������������������������������������������������������������������������������������������������������������������������������������� Guarantee Guarantee date of sale : ������� / ����� / ���������� Your dealer : �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� �������������������������������������������������������������������������������������������������������������������������������������������� 5-YEAR GUARANTEE The company VENDURO B�V�B�A� at all times reserves the right to modify their products without any limitation�...
  • Page 44 Venduro bv Spieveldstraat 23 Industrieterrein E17/3 B-9160 Lokeren – Belgium contact T +32 9 340 60 00 E-mail: info@venduro�be Internet: www�venduro�be Service: Service@venduro�be...
