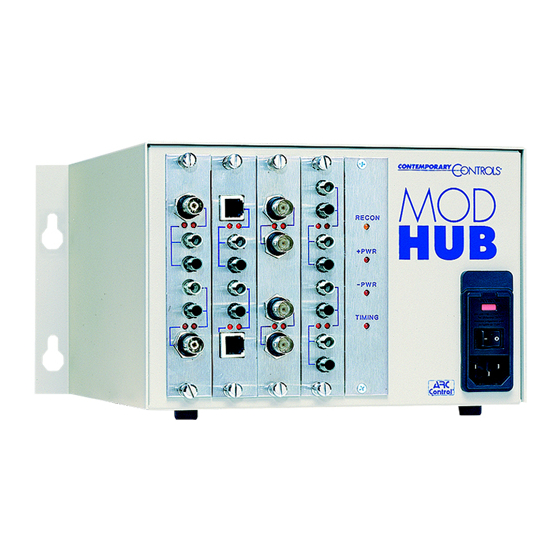

- Page 1 MOD HUB series A Line of Modular Active Hubs for ARCNET ® Local Area Networks Expansion Modules Installation Instructions #TD471100-0II...
- Page 2 Trademarks Contemporary Controls, ARC Control, ARC DETECT and EXTEND-A-BUS are trademarks or registered trademarks of Contemporary Control Systems, Inc. ARCNET is a registered trademark of Datapoint Corporation. Other product names may be trademarks or registered trademarks of their respective companies. TD471100-0II Revised 09-15-03 Copyright ©...
-
Page 3: Cabling Considerations
Contemporary Controls’ MOD HUB Series User Manual. CABLING CONSIDERATIONS The MOD HUB Series is a line of modular active hubs for ARCNET local area networks. These hubs support several cabling types including coaxial, twisted-pair and glass fiber optics. As far as topology is concerned, each MOD HUB expansion module is designed for use in star or distributed star configurations. - Page 4 Model Number EXP-CXS EXP-CXS/FG3-ST EXP-CXS/FOG-SMA 2-port coax/fiber SMA expansion EXP-CXS/FOG-ST EXP-CXS/485 EXP-CXS/485X EXP-FOG-SMA EXP-FOG-ST EXP-TPS EXP-TPS/CXS EXP-TPS/FOG-SMA EXP-TPS/FOG-ST EXP-485 EXP-485/FOG-SMA EXP-485/FOG-ST EXP-485X EXP-485X/FOG-SMA 2-port 485X/fiber SMA expansion EXP-485X/FOG-ST Description 4-port coaxial star expansion module Coax/1300 nm fiber expansion module module 2-port coax/fiber ST expansion module 2-port coax/485 expansion module 2-port coax/485X expansion module...
- Page 5 REMOVING MODULES FROM THE MOD HUB Before removing the modules from the MOD HUB, turn the unit off by depressing the power switch located on the front panel of the MOD HUB. Unplug the power cord from the wall outlet.
- Page 6 Attach the cables running from each device in the ARCNET LAN to the appropriate module connectors on the newly- installed expansion module. Refer to the MOD HUB Series User Manual, Chapter 2, to test the module for proper working operation. TD471100-0II...
- Page 7 APPENDICES Appendix A–Declaration of Conformity Applied Council Directives: Low Voltage Directive amended by Council Directive 93/68/EEC Electromagnetic Compatibility Directive as amended by Council Directive 92/31/EEC & Council Directive 93/68/EEC Standard to which Conformity is Declared EN 55022:1995 CISPR22: 1993, Class A, Limits and Methods of Measurement of Radio Disturbance Characteristics of Information Technology Equipment EN 55024:1998, Information Technology Equipment —...
- Page 8 Type of Equipment: Industrial local area network modular hub and associated expansion modules Model MODHUB-16E MODHUB-16EF EXP-CXS EXP-CXS/FG3-ST EXP-CXS/FOG-SMA EXP-CXS/FOG-ST EXP-FOG-SMA EXP-FOG-ST EXP-TPS EXP-TPS/FOG-ST * Yes — product is certified to this directive N/R — this directive is not required for this product Year of CE Marking (low voltage directive) May 1996 Technical File TD401600-0FA I, the undersigned, hereby declare that the product(s) specified...
