- Page 1 MOD HUB series A Line of Modular Active Hubs for ARCNET ® Local Area Networks Expansion Modules Installation Instructions #TD471100-0IJ...
- Page 2 Trademarks Contemporary Controls, ARC Control, ARC DETECT, BASautomation, and EXTEND-A-BUS are trademarks or registered trademarks of Contemporary Control Systems, Inc. ARCNET is a registered trademark of Datapoint Corporation. Other product names may be trademarks or registered trademarks of their respective companies.
- Page 3 MOD HUB Series can be obtained by referring to Contemporary Controls’ MOD HUB Series User Manual. CABLING CONSIDERATIONS The MOD HUB Series is a line of modular active hubs for ARCNET local area networks. These hubs support several cabling types including coaxial, twisted-pair and glass fiber optics.

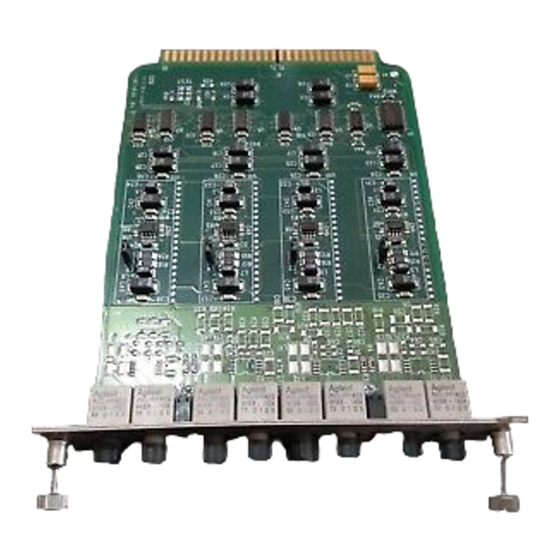

- Page 4 Model Number Description EXP-CXS 4-port coaxial star expansion module EXP-CXS/FG3-ST Coax/1300 nm fiber expansion module EXP-CXS/FOG-SMA 2-port coax/fiber SMA expansion module EXP-CXS/FOG-ST 2-port coax/fiber ST expansion module EXP-CXS/485 2-port coax/485 expansion module EXP-CXS/485X 2-port coax/485X expansion module EXP-FOG-SMA 4-port fiber SMA expansion module EXP-FOG-ST 4-port fiber ST expansion module EXP-TPS...
- Page 5 Attach the cables running from each device in the ARCNET LAN to the appropriate module connectors on the newly- installed expansion module. Refer to the MOD HUB Series User Manual, Chapter 2, to test the module for proper working operation.
- Page 6 When contacting us, just ask for technical support. Warranty Contemporary Controls (CC) warrants its new product to the original purch- aser for two years from the product shipping date. Product returned to CC for repair is warranted for one year from the date that the repaired product is shipped back to the purchaser or for the remainder of the original warranty period, whichever is longer.
