EISK5-GT/H
Skorpion Gigabit Diagnostic Switch for Protocol Debugging
Installation Guide

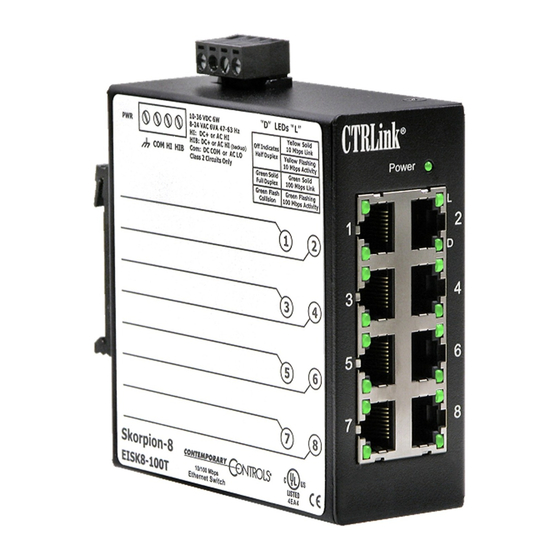

The EISK5-GT/H gigabit switching hub is designed as an aid in diagnosing Ethernet
communication issues and debugging software. This device has all of the features
of a normal switch except that — like a repeating hub — it passes messages
received by any port to all other ports. This allows the activity of all ports to be
monitored by a "sniffer" attached to any port — an ability that would otherwise
require the "port mirror" function of a more costly managed switch.
The five ports of the EISK5-GT/H offer features that traditional repeating hubs do
not. Each port supports Auto-MDIX — so either straight-through or crossover
cabling can be used. The collision domain is terminated at each port so there is
no cabling length limit — except that each segment cannot exceed the 100 m
specification for Ethernet.
Store-and-forward operation mitigates against lost
messages. Each port automatically negotiates its data rate to 10 Mbps, 100
Mbps or 1000Mbps.
The EISK5-GT/H has five Auto-MDIX ports for attaching local devices.
In
addition to a power LED, each port has LEDs showing link/activity/rate.
The EISK5-GT/H is powered from a low-voltage source and is provided with a
writeable label for easy identification of the remote device attached to each
cable.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contemporary Controls CTRLink EISK5-GT/H
Summary of Contents for Contemporary Controls CTRLink EISK5-GT/H
- Page 1 EISK5-GT/H Skorpion Gigabit Diagnostic Switch for Protocol Debugging Installation Guide The EISK5-GT/H gigabit switching hub is designed as an aid in diagnosing Ethernet communication issues and debugging software. This device has all of the features of a normal switch except that — like a repeating hub — it passes messages received by any port to all other ports.
- Page 2 Specifications Functional Electrical Compliance: ANSI/IEEE 802.3 INPUT Data Rates: 10, 100 and 1000 Mbps Voltage: 10–36 V 24 V ±10% Signalling: 10BASE-T, 100BASE-TX Power: 5 VA and 1000BASE-T Frequency: 47–63 Hz Connectors: Shielded RJ-45 Class 2 Circuits Only Segment length: 100 m (maximum) Environmental LED Indicators...
- Page 3 Power Options Power Considerations Voltage in the specified range must deliver current commensurate with power consumption. Recommended size for solid power conductors is 16–22 AWG; for stranded conductors, use 16–18 AWG. COM is directly connected to zero volts and chassis is isolated from zero volts. Input connections are reverse-polarity protected. Network Connections The unit employs Auto-MDIX technology so that either straight-through or crossover cables can be used to connect to network interface adapters or to another hub.
- Page 4 Technical Support. Warranty Contemporary Controls (CC) warrants this product to the original purchaser for five years from the shipping date. If it fails to operate in compliance with its specification during this period, CC will, at its option, repair or replace the product at no charge. The customer is responsible for shipping the product;...
