EISK16-100T
Plug and Play Switching Hub for Industrial Automation Systems
The EISK16-100T Skorpion-16 switching hub is designed for the Industrial Automation
environment. Like all Ethernet switches from Contemporary Controls, it features non-
blocking (full wire-speed) operation. It divides an Ethernet network into 16 collision
domains — "bridging" data links to create larger network diameters than possible with
repeating hubs. Each port automatically negotiates its data rate to either 10 Mbps or
100 Mbps — controlling data flow with the PAUSE function in full-duplex links or with
the backpressure method in half-duplex links.
The switch provides preamble regeneration with symmetry and amplitude compensation
— retiming signals to eliminate jitter. Digital pre-emphasis compensates for inherent
signal strength roll-off. Link integrity is monitored, verifying that a working adapter or
hub is on the distant end of a segment.
Port assignments are learned by reading Ethernet frames and logging the source
addresses to a table. Throughput is improved by restricting traffic to those ports party
to a data exchange — while other data is simultaneously exchanged on other ports.
Store-and-forward operation is implemented and broadcast, multicast, or unicast
transmissions are received by all ports.

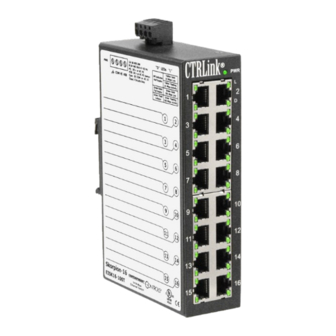

The EISK16-100T has 16 Auto-MDIX ports for attaching local devices. In addition to a
power LED, each port has one LED showing link/activity/rate and one showing duplex
status.
The unit operates from a wide range of low-voltage AC or DC power.
The EISK16-100T is provided with a writable label for easy
identification of the remote device attached to each cable.
Installation Guide
®
INDUSTRIAL
CONTROL
EQUIPMENT
4EA4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contemporary Controls EISK16-100T
Summary of Contents for Contemporary Controls EISK16-100T
-
Page 1: Installation Guide
Store-and-forward operation is implemented and broadcast, multicast, or unicast transmissions are received by all ports. The EISK16-100T has 16 Auto-MDIX ports for attaching local devices. In addition to a power LED, each port has one LED showing link/activity/rate and one showing duplex status. -
Page 2: Power Options
Functional Specifications Electrical Compliance: ANSI/IEEE 802.3 Data Rates: 10 and 100 Mbps INPUT Signaling: 10BASE-T and Voltage: 10–36 V 24 V ±10% 100BASE-TX Power: 10 W 10 VA Connectors: Shielded RJ-45 Frequency: 47–63 Hz Segment length: 100 m (maximum) Class 2 Circuits Only LED Indicators Environmental Power... - Page 3 Power Considerations Voltage in the range of 10–36 VDC or 24 VAC ±10% must deliver current commensurate with 10-watt power consumption. The recommended size for solid power conductors is 16–22 AWG; for stranded conductors, use 16–18 AWG. Ground is directly connected to zero volts and the chassis is isolated from zero volts.
- Page 4 If contacting our office, ask for Technical Support. WARRANTY Contemporary Controls (CC) warrants this product to the original purchaser for five years from the shipping date. If it fails to operate in compliance with its specification during this period, CC will, at its option, repair or replace the product at no charge. The customer is responsible for shipping the product;...
