Original BTC 7600 Instruction Manual

Safety & Installation Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current
IEE wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live,
neutral and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house
supply and mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from
good hardware or DIY store and should come with their own instructions that must be followed. It may be easier to
relocate the fitting so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections. If necessary get a
colleague to help.
8. Electrical connection: this light fitting is low voltage. It must be connected to the mains through a 12V transformer (not
supplied). This should be a 12V AC low voltage halogen transformer, min 20VA installed a maximum of 3m away from the
fitting. No connector blocks are supplied with this product; installation should be performed by a suitably qualified person.
9. Double check all the connections are secure and that no loose strands of wire are left out of the connector, Use a good
quality electrical insulation tape to cover the connector blocks and at least 25mm of the cables going in to either end of the
connectors.
Check that no wires are trapped behind or within the fitting and complete the installation, referring to the Installation
10.
diagram inside.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
12. Switch on at the fuse-board. Your light fitting is now ready for use.

Other Important Information

Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced. For use in dry, indoor environment only. Ensure the fitting does not come
into contact with any liquids.

Cleaning and Maintenance

Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Glass can be cleaned by hand,
using a soft damp cloth with a diluted mild detergent (nonabrasive) or suitable glass cleaner if necessary. Switch off power to
the fitting before cleaning. Spare parts are available for this product, please contact us on the details below.
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
ORIGINALBTC.COM
+44 (0)1993 882 251
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND

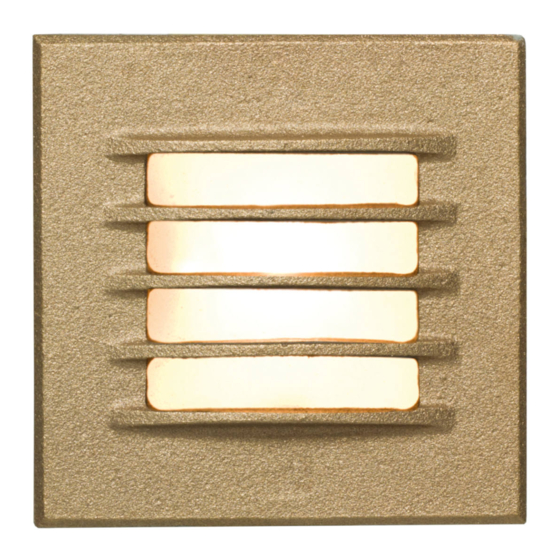

Low Voltage Recessed Step Light
v1.1-05.19
Instruction Manual
MADE IN BRITAIN
C - Main Product Image
D - Shade varieties/family products
7600
