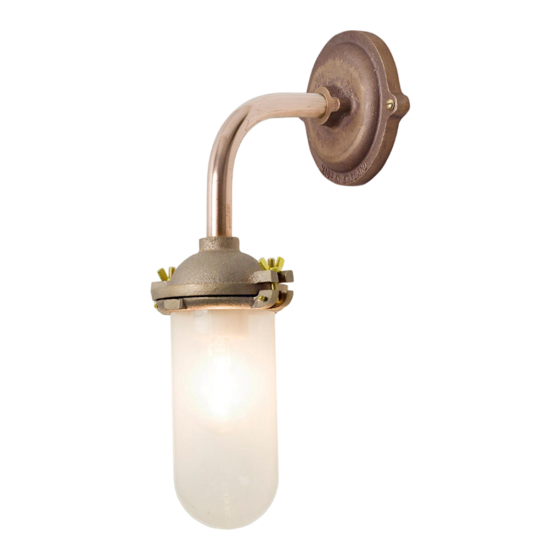

Original BTC Davey Lighting US-DP7684 Instruction Manual

Safety & Installation Instructions
ENG WARNING – RISK OF FIRE AND ELECTRIC SHOCK. THIS PRODUCT IS BEST INSTALLED BY A QUALIFIED ELECTRICIAN.
INSTALL IN ACCORDANCE WITH CURRENT NEC WIRING REGULATIONS.
SUITABLE FOR DAMP LOCATIONS
THE FITTING MUST BE GROUNDED. TURN OFF POWER AT THE MAIN FUSE BEFORE COMMENCING INSTALLATION.
FR ATTENTION – RISQUE D'INCENDIE, RISQUE DE CHOC.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION PERTINENT, PAR UNE PERSONNE QUI CONNAÎT
BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS.
CONVIENT AUX EMPLACEMENTS HUMIDES
L'APPAREIL DOIT ÊTRE MIS À LA TERRE. COUPEZ LE FUSIBLE PRINCIPAL AVANT DE COMMENCER L'INSTALLATION.
1 Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
2
If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live
(hot), neutral and earth (ground) terminals.
3 Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed
wiring during installation.
4 Position the light where desired ensuring that there is is access to a suitable junction box for the fixture and suitable
support adjacent to where you will connect to the house supply and mark position of fixing holes, before drilling
appropriate holes as below.
a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings.
Open your existing junction box (if you do not have one in the desired position you will need to get an electrician to
5
install one). In your junction box there should be two supply wires and one ground wire. Connect your new lamp to the
electrical supply using UL approved wire nuts. Connect the live (hot) black wire from the power supply to the black
conductor on the luminaire cable, then the white (neutral) wire to the white conductor on the luminaire cable and bare
copper or green/yellow ground wire to the ground terminal or green/yellow wire connected to the fitting.
KEY
BLACK
L = Live (Hot)
Fitting
GRN/YEL
N = Neutral
=
Earth
WHITE
6
Support the fitting so that no strain is applied to the wiring when making the electrical connections.
7 Double check all the connections are secure, no wires are trapped behind or within the fitting and complete the
installation, screwing the fitting to the wall, over your junction box.
8
Fit the correct type and wattage of bulb, referring to guidance inside. Do not overtighten bulb.
9 Switch on at the fuse-board. Your light fitting is now ready for use.
Other Important Information
Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
accidently touch the contacts). If the electrical flex or electrical components become damaged at any point, power to the fitting
should be disconnected immediately and not operated until the damaged parts are fixed/replaced.
Cleaning and Maintenance
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off power to the fitting
before cleaning.
