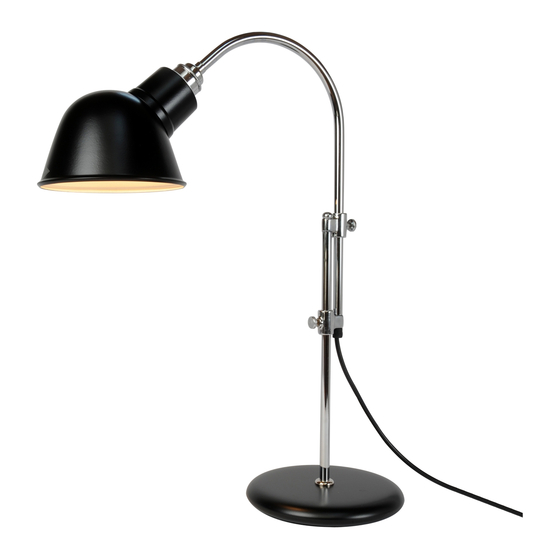

Original BTC Ginger FT082 Instruction Manual

Safety Instructions

These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury.
Please retain for future reference. When fitting is in operation, some parts will become hot; take care when
using/handling.
- Ensure the lamp type and max wattage is followed- do not exceed. Take care not to overtighten lamp.
- Do not touch the lamp (bulb) or lamp holder while in operation, as both become very hot.
- Turn off and unplug fitting, leaving lamp to cool before changing lamp. Dispose of old lamps carefully.
- Never leave a fitting without a lamp in position.
- Keep light fitting away from combustible materials such as soft furnishings.
- Ensure children do not play with the light fitting.
- Ensure the light is positioned on a solid, level and non-slip surface and make sure the position of
the cable does not pose a trip hazard.
- If the electrical flex or electrical components become damaged at any point, the fitting must be
unplugged from the power supply immediately and not operated until the damaged parts are
fixed/replaced.
- For use in a dry, indoor environment only. Ensure the fitting does not come into contact with any liquids.

Cleaning and Maintenance

Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Switch off
power to the fitting before cleaning. Spare parts are available for this product, please see contact details on
the reverse.

Other Important Informations

Switch off at mains before changing the light bulbs. Never fit a bulb of greater wattage than recommended.
Children should be discouraged from playing with light fittings. Dispose of old bulbs carefully. Never leave
a fitting without a bulb in position (or someone can accidently touch the contacts). Do not mount the fitting
on a damp surface such as newly painted or plastered areas as this may cause discolouration of the finish.
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Retain for
future reference.
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
ORIGINALBTC.COM
+44 (0)1993 882 251
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND

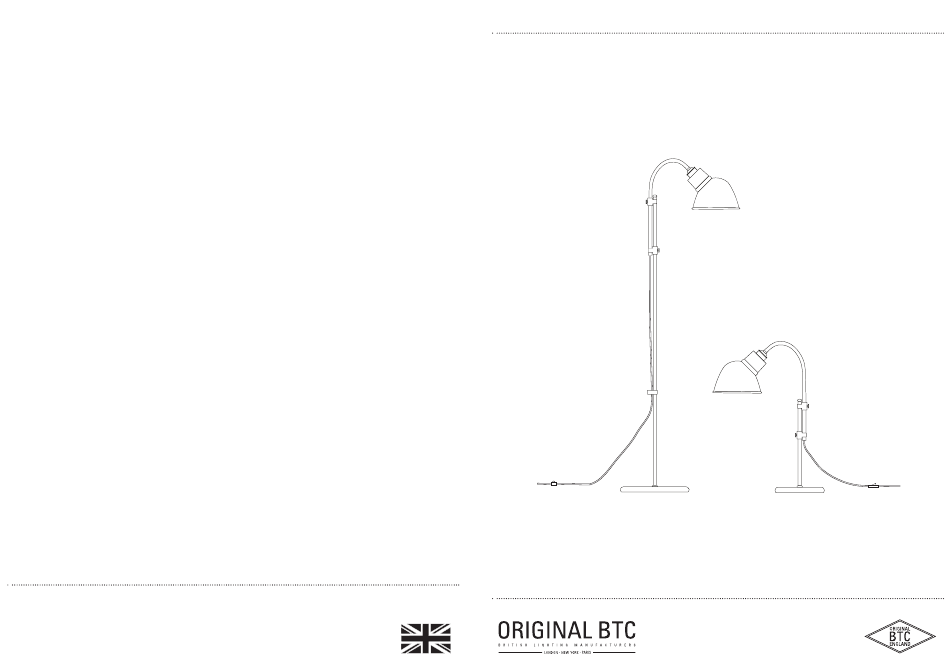

Ginger Table & Floor Lights
Instruction Manual
KEY
L
KEY BROWN
L
L = Live
BROWN
L = Live
Fitting
GRN/YEL
N = Neutral
Fitting
GRN/YEL
N = Neutral
=
Earth N
BLUE
=
Earth N
BLUE
MADE IN BRITAIN
MADE IN BRITAIN
Fin Table Light
FT572
KEY
*After 2004, wiring installation colours changed:
L
BROWN
BROWN
*After 2004, wiring installation colours changed:
BROWN
L = Live *Mains LIVE Brown replaces Red
*Mains LIVE Brown replaces Red
GRN/YEL Fitting
GRN/YEL
N = Neutral Supply
EARTH Green/Yellow sleeving
GRN/YEL
Supply
EARTH Green/Yellow sleeving
= N
BLUE Earth
NEUTRAL Blue replaces Black
BLUE
BLUE
NEUTRAL Blue replaces Black
MADE IN BRITAIN
FT082 - FF084
Fin Floor Light
FT573
*After 2004, wiring insta
BROWN
*Mains
LIVE Brown re
GRN/YEL
Supply
EARTH Green/Ye
BLUE
NEUTRAL Blue repla
