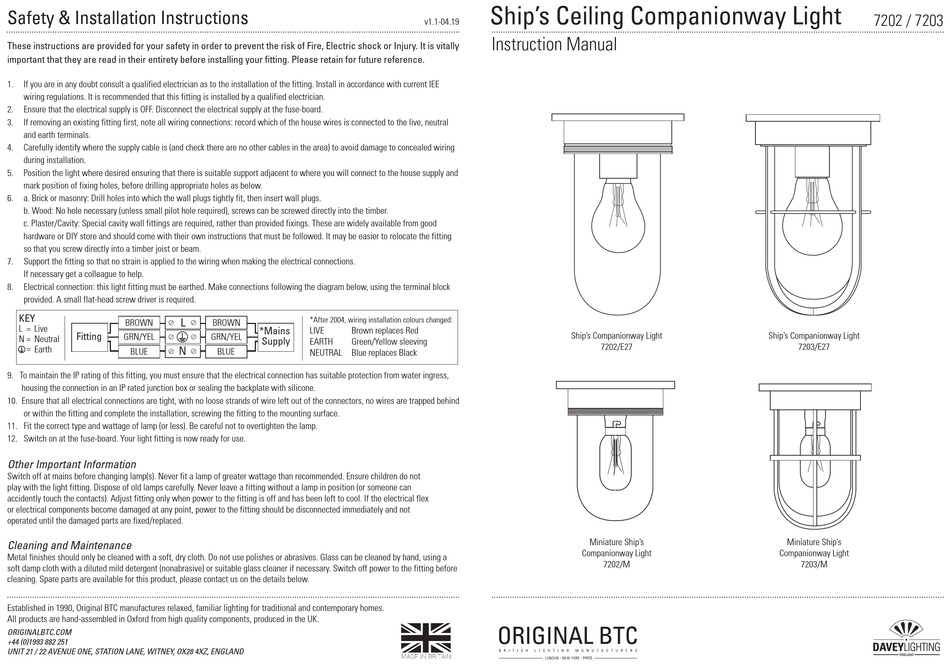

Original BTC DAVEY LIGHTING 7202 Instruction Manual

Safety & Installation Instructions
These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury. It is vitally
important that they are read in their entirety before installing your fitting. Please retain for future reference.
1. If you are in any doubt consult a qualified electrician as to the installation of the fitting. Install in accordance with current IEE
wiring regulations. It is recommended that this fitting is installed by a qualified electrician.
2. Ensure that the electrical supply is OFF. Disconnect the electrical supply at the fuse-board.
3. If removing an existing fitting first, note all wiring connections: record which of the house wires is connected to the live, neutral
and earth terminals.
4. Carefully identify where the supply cable is (and check there are no other cables in the area) to avoid damage to concealed wiring
during installation.
5. Position the light where desired ensuring that there is suitable support adjacent to where you will connect to the house supply and
mark position of fixing holes, before drilling appropriate holes as below.
6. a. Brick or masonry: Drill holes into which the wall plugs tightly fit, then insert wall plugs.
b. Wood: No hole necessary (unless small pilot hole required), screws can be screwed directly into the timber.
c. Plaster/Cavity: Special cavity wall fittings are required, rather than provided fixings. These are widely available from good
hardware or DIY store and should come with their own instructions that must be followed. It may be easier to relocate the fitting
so that you screw directly into a timber joist or beam.
7. Support the fitting so that no strain is applied to the wiring when making the electrical connections.
If necessary get a colleague to help.
8. Electrical connection: this light fitting must be earthed. Make connections following the diagram below, using the terminal block
provided. A small flat-head screw driver is required.
KEY
L
BROWN
L = Live
Fitting
GRN/YEL
N = Neutral
= Earth N
BLUE
9. To maintain the IP rating of this fitting, you must ensure that the electrical connection has suitable protection from water ingress,
housing the connection in an IP rated junction box or sealing the backplate with silicone.
10. Ensure that all electrical connections are tight, with no loose strands of wire left out of the connectors, no wires are trapped behind
or within the fitting and complete the installation, screwing the fitting to the mounting surface.
11. Fit the correct type and wattage of lamp (or less). Be careful not to overtighten the lamp.
MADE IN BRITAIN
12. Switch on at the fuse-board. Your light fitting is now ready for use.

Other Important Information

LAMP GUIDANCE

Switch off at mains before changing lamp(s). Never fit a lamp of greater wattage than recommended. Ensure children do not
play with the light fitting. Dispose of old lamps carefully. Never leave a fitting without a lamp in position (or someone can
BASE SHAPE TYPE*
accidently touch the contacts). Adjust fitting only when power to the fitting is off and has been left to cool. If the electrical flex
INCANDESCENT
or electrical components become damaged at any point, power to the fitting should be disconnected immediately and not
operated until the damaged parts are fixed/replaced.
CFL
ECO-HALOGEN

Cleaning and Maintenance

E27 GLS BALL
LED
Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Glass can be cleaned by hand, using a
soft damp cloth with a diluted mild detergent (nonabrasive) or suitable glass cleaner if necessary. Switch off power to the fitting before
* Warm white (2700k) low energy lamps recommended.
cleaning. Spare parts are available for this product, please contact us on the details below.
** Wattage value provided as a guide to suitable lamps. Lower wattage than stated may be used.
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
ORIGINALBTC.COM
+44 (0)1993 882 251
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND
*After 2004, wiring installation colours changed:
BROWN
*Mains
LIVE Brown replaces Red
GRN/YEL
Supply
EARTH Green/Yellow sleeving
BLUE
NEUTRAL Blue replaces Black
WATTAGE**
ü
60W MAX
ü
15W
ü
28W
ü
12W
Ship's Ceiling Companionway Light
v1.1-04.19
Instruction Manual
Ship's Companionway Light
KEY KEY KEY
L L
BROWN BROWN
L = L = Live Live L = Live
Fitting Fitting Fitting
GRN/YEL GRN/YEL
N = N = Neutral Neutral N = Neutral
= Earth = Earth = Earth N N
BLUE BLUE
MADE IN BRITAIN MADE IN BRITAIN MADE IN BRITAIN
1
2
3
4
5
7202/E27
1
2
3
4
5
Miniature Ship's
*After 2004, wiring installation colours changed: *After 2004, wiring installation colours changed:
L
BROWN BROWN BROWN BROWN
Companionway Light
*Mains *Mains LIVE LIVE Brown replaces Red Brown replaces Red *Mains
GRN/YEL GRN/YEL GRN/YEL GRN/YEL
1
7202/M Supply Supply Supply
EARTH EARTH Green/Yellow sleeving Green/Yellow sleeving
N
BLUE BLUE BLUE BLUE
NEUTRAL Blue replaces Black NEUTRAL Blue replaces Black
2
3
4
7202 / 7203
A
1
6
2
3
4
5
Ship's Companionway Light
7203/E27
1
2
3
4
1
2
5
3
A
4
Miniature Ship's
*After 2004, wiring installation colours changed:
Companionway Light
LIVE Brown replaces Red
7203/M
EARTH Green/Yellow sleeving
5
NEUTRAL Blue replaces Black
7
Wid
