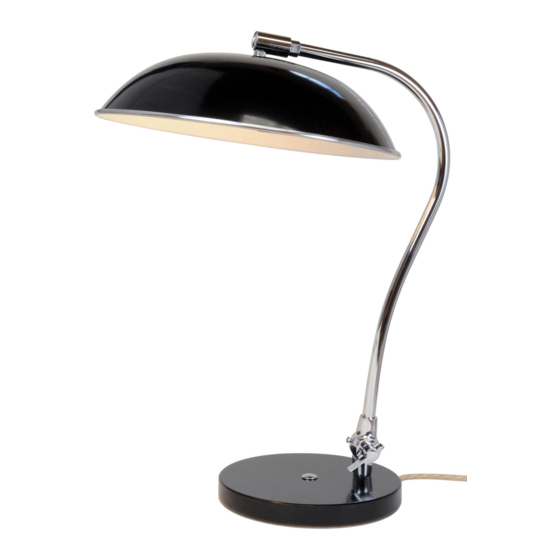

Original BTC Hugo FT417 Instruction Manual

Safety Instructions

These instructions are provided for your safety in order to prevent the risk of Fire, Electric shock or Injury.
Please retain for future reference. When fitting is in operation, some parts will become hot; take care when
using/handling.
- Ensure the lamp type and max wattage is followed- do not exceed. Take care not to overtighten lamp.
- Do not touch the lamp (bulb) or lamp holder while in operation, as both become very hot.
- Turn off and unplug fitting, leaving lamp to cool before changing lamp. Dispose of old lamps carefully.
- Never leave a fitting without a lamp in position.
- Keep light fitting away from combustible materials such as soft furnishings.
- Ensure children do not play with the light fitting.
- Ensure the light is positioned on a solid, level and non-slip surface and make sure the position of
1
the cable does not pose a trip hazard.
- If the electrical flex or electrical components become damaged at any point, the fitting must be
unplugged from the power supply immediately and not operated until the damaged parts are
fixed/replaced.
- For use in a dry, indoor environment only. Ensure the fitting does not come into contact with any liquids.

Cleaning and Maintenance

Metal finishes should only be cleaned with a soft, dry cloth. Do not use polishes or abrasives. Bone china
can be cleaned using a soft damp cloth with a mild detergent if necessary. Switch off power to the fitting
before cleaning. Spare parts are available for this product, please see contact details on the reverse.
2
Established in 1990, Original BTC manufactures relaxed, familiar lighting for traditional and contemporary homes.
All products are hand-assembled in Oxford from high quality components, produced in the UK.
ORIGINALBTC.COM
+44 (0)1993 882 251
UNIT 21 / 22 AVENUE ONE, STATION LANE, WITNEY, OX28 4XZ, ENGLAND

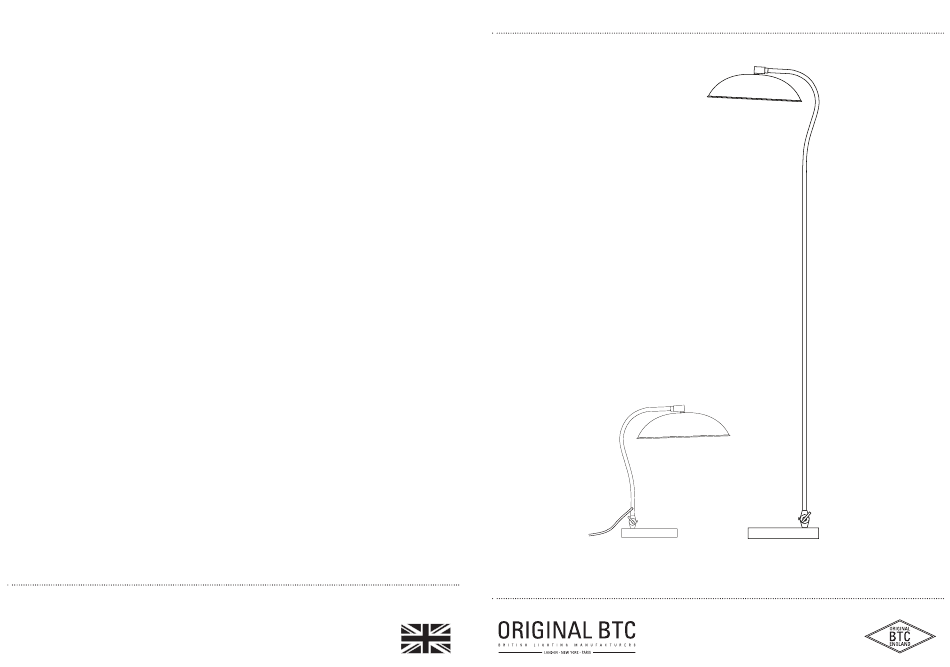

Hugo Table & Floor Lights
Instruction Manual
1
KEY
L
KEY BROWN
L
L = Live
BROWN
L = Live
Fitting
GRN/YEL
N = Neutral
Fitting
GRN/YEL
N = Neutral
=
Earth N
BLUE
=
Earth N
BLUE
MADE IN BRITAIN
MADE IN BRITAIN
KEY
*After 2004, wiring installation colours changed:
L
BROWN
BROWN
*After 2004, wiring installation colours changed:
BROWN
L = Live *Mains LIVE Brown replaces Red
*Mains LIVE Brown replaces Red
GRN/YEL Fitting
GRN/YEL
N = Neutral Hugo Table Light Supply Hugo Floor Light
EARTH Green/Yellow sleeving
GRN/YEL
Supply
EARTH Green/Yellow sleeving
= N
BLUE Earth FT417
NEUTRAL Blue replaces Black
BLUE
BLUE
NEUTRAL Blue replaces Black
MADE IN BRITAIN
FT417 - FF418
*After 2004, wiring insta
BROWN
*Mains
LIVE Brown re
GRN/YEL
Supply
EARTH Green/Ye
FT418
BLUE
NEUTRAL Blue repla
