VLT® Compressor Drives

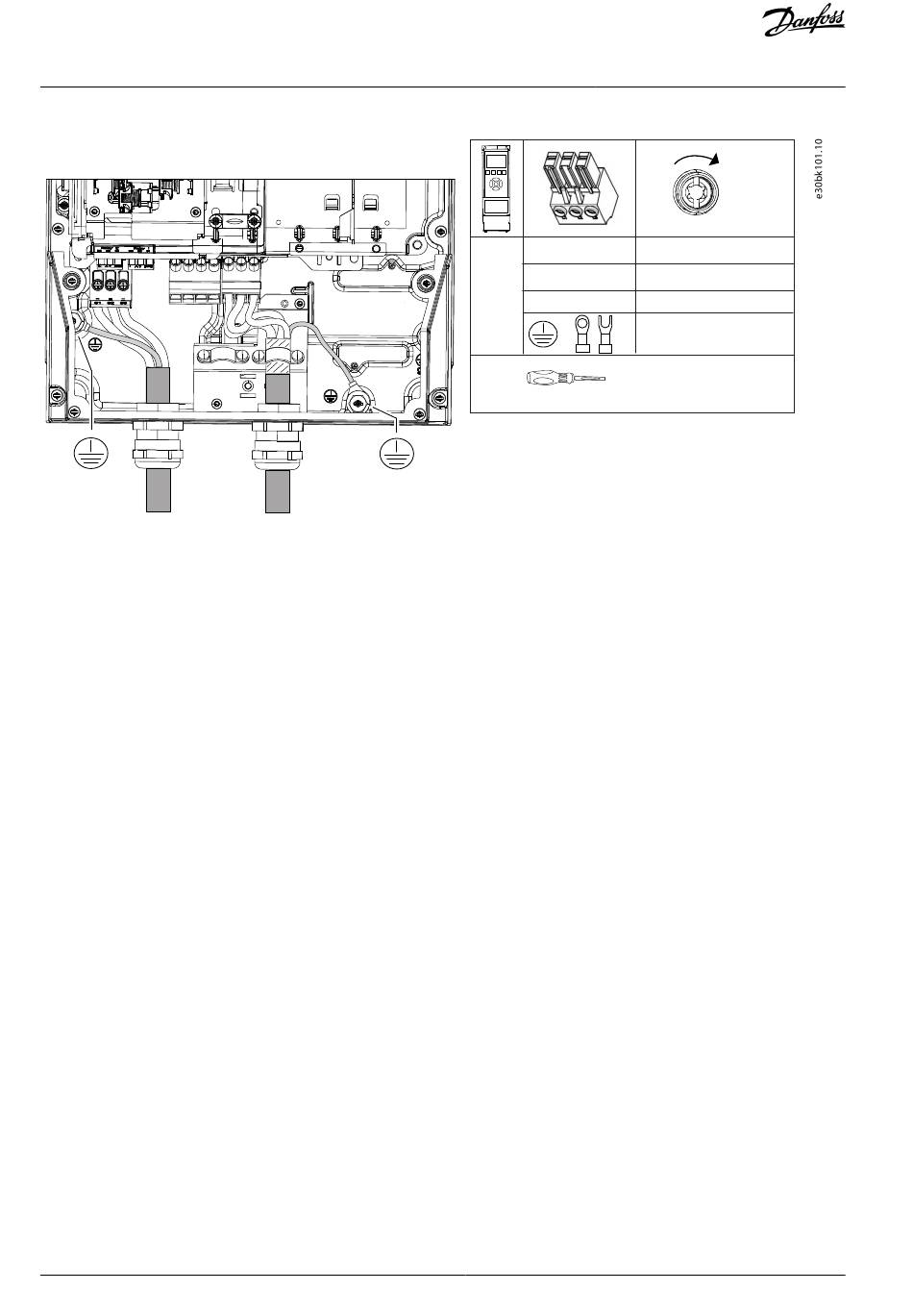

A5
+DC –DC R– R+
88 89 81 82
L1 L2 L3
95
Danfoss A/S © 2022.09
U V W
96 97 98
99
95
L1, L2, L3 1.2–1.5 Nm (11–13 in-lb)
A5 U, V, W 2 Nm (17 in-lb)
-DC, R-, +DC/R+ 2 Nm (124 in-lb)
3 Nm (26 in-lb)
SL2/T20
