QuickQ Console Testing
QuickQ Test Procedure

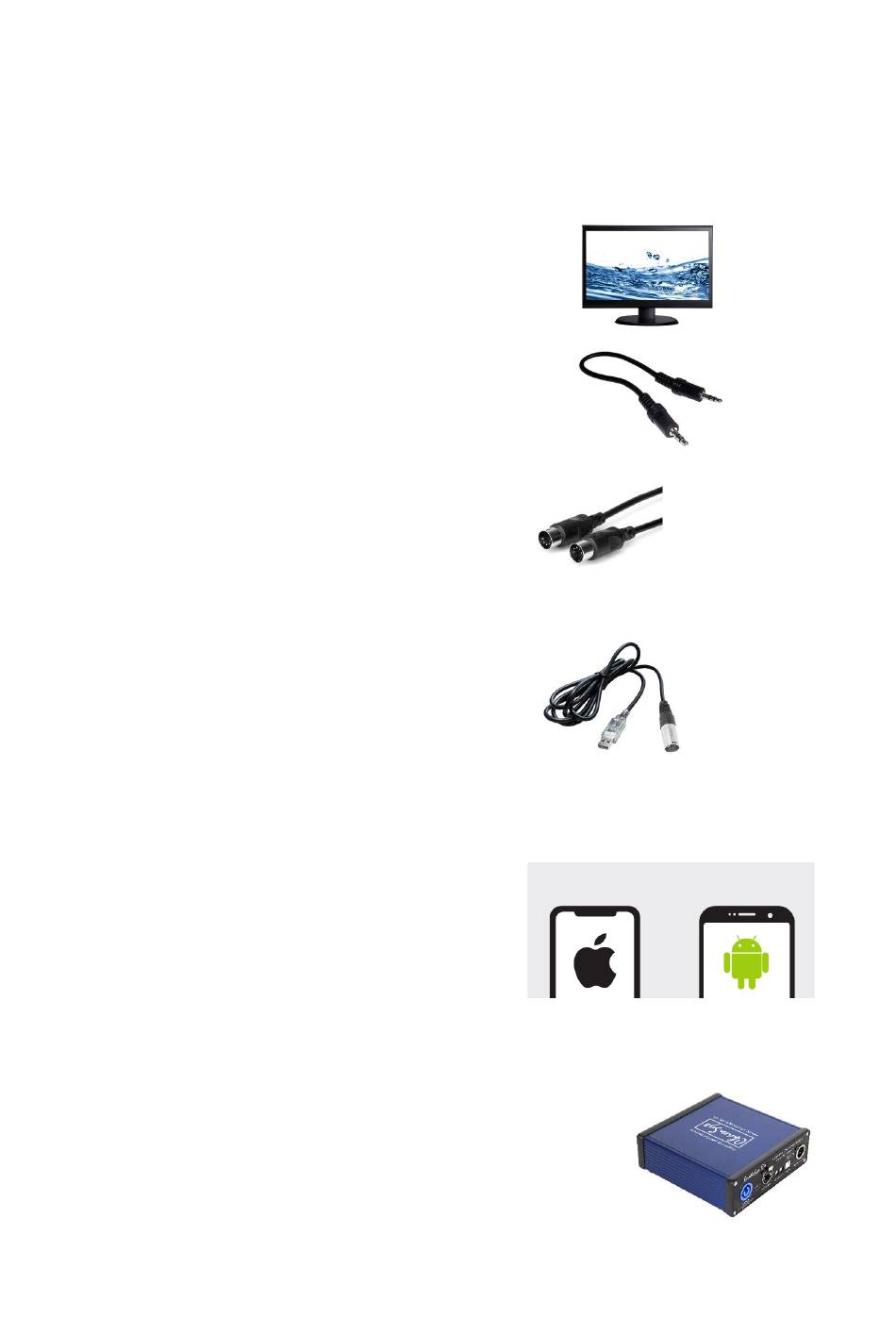

Testing kit required (In addition to standard console accessories – for
example console power supply):
Full HD monitor with HDMI cable
•
3.5mm to 3.5mm Minijack audio cable
•
5 Pin MIDI-MIDI cable to test MIDI ports
•
ChamSys USB-DMX Test Cable
•
(ChamSys Part no: 900-001) to test direct DMX
output ports
Android or iOS phone/Tablet (Wi-Fi Test),
•
with free QuickQ Remote app installed
An Artnet/sACN node + network cable to check wired
•
network port
(any brand node)
ChamSys Ltd – Rev 1.0 July 2021
