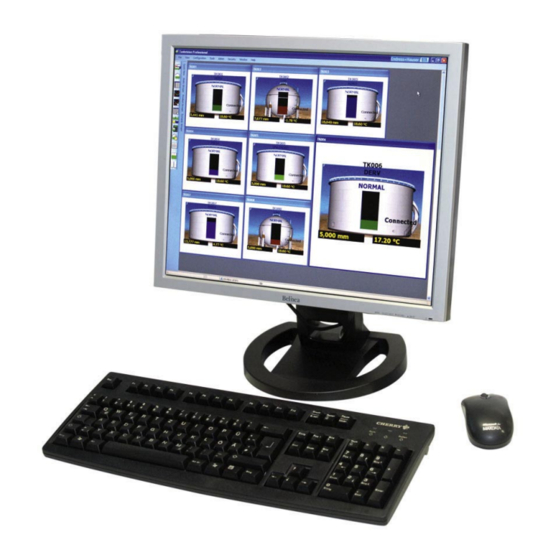

- Page 1 Products Solutions Services BA01654G/00/EN/01.16 71348970 Valid as of software version: 18.0.2 Operating Instructions Tankvision Professional NXA85 System Monitor (Client/Server Configurations)
- Page 2 Tankvision Professional NXA85 - System Monitor Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
Tankvision Professional NXA85 - System Monitor Table of Contents Document information ....4 Troubleshooting ....19 Target audience for this manual . -
Page 4: Document Information
Tankvision Professional NXA85 - System Monitor Document information Target audience for this manual This manual should support during the installation of Tankvision Professional NXA85. It is recommended to receive a training on the system by Endress+Hauser. Version history Document version... -
Page 5: Documentation
Tankvision Professional NXA85 - System Monitor Document information Symbols for certain types of information Symbol Meaning Indicates additional information. A0011193 Reference to page Refers to the corresponding page number. A0011195 ... Series of steps Result of a sequence of actions... -
Page 6: Identification
Identification Tankvision Professional NXA85 - System Monitor Identification Product identification The following options are available for identification of the software: • Nameplate specifications • Order code with breakdown of the software features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the software is displayed. -
Page 7: Order Code And Device Version
All the associated documentation is displayed. 2.4.2 Endress+Hauser Operations App The Endress+Hauser Operations App is available both for android smart phones (Google Play Store) and for iPhones and iPads (App Store). Via the serial number: Launch the Endress+Hauser Operations App. -
Page 8: Basic Safety Instructions
Basic safety instructions Tankvision Professional NXA85 - System Monitor Basic safety instructions Requirements for the personnel The personnel for installation, commissioning, diagnostics and maintenance must fulfill the following requirements: • Trained, qualified specialists: must have a relevant qualification for this specific function and task •... -
Page 9: Operational Safety
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 10: Introduction
Introduction Tankvision Professional NXA85 - System Monitor Introduction About System Monitor The Tank Gauging System Monitor (System Monitor) monitors any servers associated with the client to ensure that they are online. If a server becomes unresponsive the System Monitor is able to alert the user. -
Page 11: Setup
Tankvision Professional NXA85 - System Monitor Setup Setup To set up the System Monitor simply run it once. The user is presented with a dialogue box as shown below. BA0xxxxGEN_0001 Click Yes to allow the System Monitor to automatically start up when the client starts. -
Page 12: Window Overview
Window Overview Tankvision Professional NXA85 - System Monitor Window Overview General The window can be displayed by clicking on the tray icon. BA0xxxxGEN_0002 The main window and its controls: Primary server information (→ ä 13). Secondary server information: This contains the same information as 1, but for the secondary server (→... -
Page 13: Server And Information Overview
Tankvision Professional NXA85 - System Monitor Window Overview Server and Information Overview BA0xxxxGEN_0003 The primary and secondary servers are both online in a redundant configuration. The server information section of the System Monitor displays the following information about each server: •... -
Page 14: Test Buttons Overview
Window Overview Tankvision Professional NXA85 - System Monitor Test Buttons Overview BA0xxxxGEN_0006 The log showing successful connections to the servers. The test buttons attempt to create a connection with the servers and, if successful, display a success message along with an approximate latency to the log. If it is unable to establish a connection (after 1 second) it displays an error message in the log. -
Page 15: System Status
Tankvision Professional NXA85 - System Monitor System Status System Status The following is a table of icons displaying the various possible statuses of the system: Status Icon Meaning Status Icon Meaning (a) The system is using a redun- (a) The system is using a redun- dancy configuration and both ser-... -
Page 16: Updating The Configuration
Updating the Configuration Tankvision Professional NXA85 - System Monitor Updating the Configuration If it is possible to update the configuration, the Break Redundancy/Restore Redundancy button will be available to click (→ ä 12). If the user has the correct permissions, the System Monitor will then attempt to modify the configuration of the system. - Page 17 Tankvision Professional NXA85 - System Monitor Updating the Configuration servers so that the client can communicate with the online server. If the user selects the option to Switch Servers the System Monitor will: Restore the redundancy. Immediately and automatically break the redundancy to switch to the working server.
-
Page 18: Tray Icon
Tray Icon Tankvision Professional NXA85 - System Monitor Tray Icon The tray icon appears in the tray of the client and displays the current status of the system. For available statuses and their definitions, → ä 15. Clicking the Tray Icon Clicking the tray icon once will display the main window of the System Monitor. -
Page 19: Troubleshooting
Tankvision Professional NXA85 - System Monitor Troubleshooting Troubleshooting 10.1 Error message in the log: "Unable to write to the log file…" The System Monitor was unable to create a log file or the log file is in read-only mode. Ensure that all files in the System Monitor’s logs folder (usually located at C:\ProgramData\Tank Farm Automation\Client\SystemMonitor\logs) can be written to. -
Page 20: Index
Tankvision Professional NXA85 - System Monitor Index Balloon Tool Tips ....... . 15 Breaking the Redundancy. - Page 21 Tankvision Professional NXA85 - System Monitor Endress+Hauser...
- Page 22 71348970 www.addresses.endress.com...
