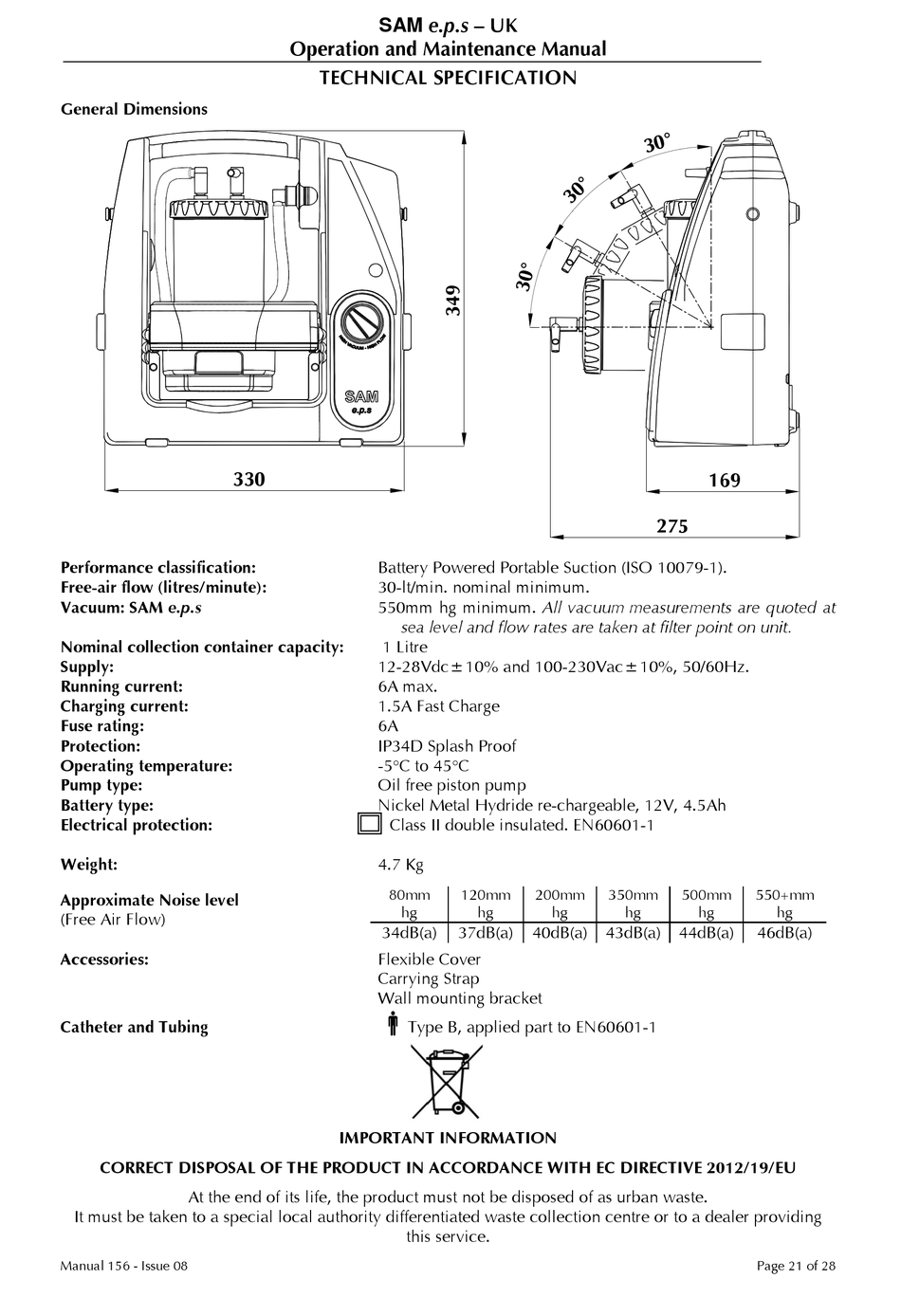

Technical Specification - MGE UPS Systems SAM Operating And Maintenance Manual

General Dimensions
Performance classification:
Free-air flow (litres/minute):
Vacuum: SAM e.p.s
Nominal collection container capacity:
Supply:
Running current:
Charging current:
Fuse rating:
Protection:
Operating temperature:
Pump type:
Battery type:
Electrical protection:
Weight:
Approximate Noise level
(Free Air Flow)
Accessories:
Catheter and Tubing
CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU
At the end of its life, the product must not be disposed of as urban waste.
It must be taken to a special local authority differentiated waste collection centre or to a dealer providing
Manual 156 - Issue 08
SAM e.p.s – UK
Operation and Maintenance Manual

TECHNICAL SPECIFICATION

330
Battery Powered Portable Suction (ISO 10079-1).
30-lt/min. nominal minimum.
550mm hg minimum. All vacuum measurements are quoted at
1 Litre
12-28Vdc±10% and 100-230Vac±10%, 50/60Hz.
6A max.
1.5A Fast Charge
6A
IP34D Splash Proof
-5°C to 45°C
Oil free piston pump
Nickel Metal Hydride re-chargeable, 12V, 4.5Ah
Class II double insulated. EN60601-1
4.7 Kg
80mm
34dB(a)
Flexible Cover
Carrying Strap
Wall mounting bracket

IMPORTANT INFORMATION
sea level and flow rates are taken at filter point on unit.
120mm 200mm
hg hg hg
37dB(a) 40dB(a)
Type B, applied part to EN60601-1
this service.
169
275
350mm 500mm 550+mm
hg hg
43dB(a) 44dB(a) 46dB(a)
Page 21 of 28
hg
