8 Channel Video Transmit Unit with 1 Bi-directional Data
Channel and integral WDM coupler for a Singlemode Fibre

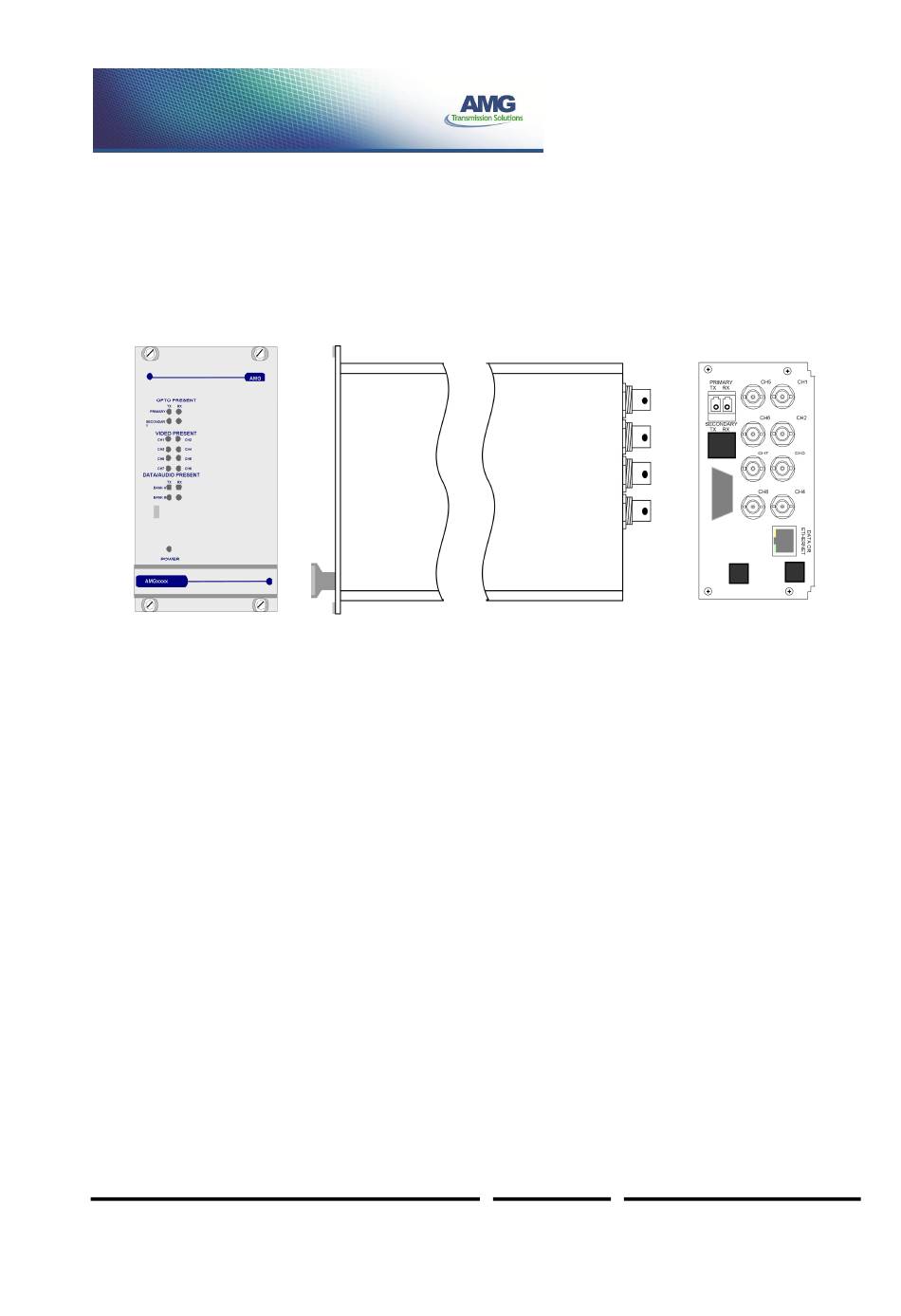

The AMG4783R-SF-CWDMn-C is a rackmount eight channel video transmit unit designed to transmit
8 video signals and transmit and receive 1 data signal over one Singlemode fibre. The AMG4783R-
SF-CWDMn-C transmits on a CWDM wavelength defined by the 'n' in the CWDMn partno. as detailed
in the following table, but can receive from any 1310nm or 1550nm band wavelength. It incorporates a
CWDM "drop and insert" optical multiplexer. This allows the user to combine a signal from a unit
transmitting at an alternative CWDM wavelength onto the same optical fibre.
The AMG4783R-SF-CWDMn-C is designed to plug into an AMG2009 or AMG2015 subrack, which in
turn fits into a 19" rack system.
The AMG4783R-SF-CWDMn-C is designed to operate with AMG4784-SF-CWDMn-C or rackmount
equivalent AMG4784R-SF-CWDMn-C eight channel video receive unit in a point to point
configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG4783R-SF-CWDMn-C
Link
Page 1 of 8
Instruction Manual
AMG4783R-SF-CWDMn-C Instruction
Sheet D18398-00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4783R-SF-CWDMn-C
Summary of Contents for AMG AMG4783R-SF-CWDMn-C
- Page 1 CWDM "drop and insert" optical multiplexer. This allows the user to combine a signal from a unit transmitting at an alternative CWDM wavelength onto the same optical fibre. The AMG4783R-SF-CWDMn-C is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a 19" rack system.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case ..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4783R-SF-CWDMn-C Instruction document without notice. The information herein is believed to Sheet D18398-00.doc... -
Page 3: Introduction
1610 1370 1450 For CWDM wavelengths 11-14, ITU-T G652C or D fibre is recommended. AMG Systems Ltd. reserves the right to make changes to this Page 3 of 8 AMG4783R-SF-CWDMn-C Instruction document without notice. The information herein is believed to Sheet D18398-00.doc... -
Page 4: Optical Connection
Optical Connection The AMG4783R-SF-CWDMn-C is connected as illustrated below when used with two AMG4784R-SF- CWDMn-C 8-channel receive units and an additional AMG4783R-SF-CWDMn-C 8-channel transmit unit acting as a 16-channel point to point system over a single optical fibre. AMG Systems Ltd. reserves the right to make changes to this... -
Page 5: Connections
Wavelength ........Any 1310nm or 1550nm band Optical Fibre ........Singlemode Optical Overload ........ -5dBm NOTE: The optical launch power may overload the input of an AMG receiver if connected directly. A minimum of 5dB loss is required to ensure correct operation. Power Connection Power supply ........ -
Page 6: Data And Audio Channel Configuration
RS485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 7: Front Panel Indicators
OUT+ logic one (-V) present on OUT+ This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG4783R-SF-CWDMn-C Instruction document without notice. The information herein is believed to Sheet D18398-00.doc... -
Page 8: Physical Information
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
