8 Channel Video Transmit Unit with up to 2 Bi-directional
Data and Audio Channels plus Ethernet for a Singlemode
The AMG4783BxE-SF is a standalone eight channel video transmit unit designed to transmit 8 video
signals and transmit and receive up to 2 data or audio signals plus full duplex 100BaseT Ethernet
connectivity over one Singlemode optical fibre.
The AMG4783BxE-SF is designed to be powered using an AMG2003 standalone power supply.
The AMG4783BxE-SF is designed to operate with AMG4784BxE-SF or rackmount equivalent
AMG4784BxER-SF eight channel video receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Fibre Link
Page 1 of 12
AMG4783BxE-SF
Instruction Manual
AMG4783BxE-SF Instruction Sheet
D18967-00.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4783BxE-SF
Summary of Contents for AMG AMG4783BxE-SF
- Page 1 Data and Audio Channels plus Ethernet for a Singlemode Fibre Link The AMG4783BxE-SF is a standalone eight channel video transmit unit designed to transmit 8 video signals and transmit and receive up to 2 data or audio signals plus full duplex 100BaseT Ethernet connectivity over one Singlemode optical fibre.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case ..................10 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 12 AMG4783BxE-SF Instruction Sheet document without notice. The information herein is believed to D18967-00.doc... -
Page 3: Introduction
The AMG4783BxER-SF is connected as illustrated below when used with an AMG4784BxER-SF 8- channel receive unit acting as a point to point system. AMG Systems Ltd. reserves the right to make changes to this Page 3 of 12 AMG4783BxE-SF Instruction Sheet document without notice. -
Page 4: Connections
Data Connector ........RJ45 Channel B Interface ......Defined by data/audio interface daughter board fitted into Slot 1 on main board and indicated by the 'x' in the AMG partno. AMG Systems Ltd. reserves the right to make changes to this... -
Page 5: Front Panel Indicators
OUT+ logic one (-V) present on OUT+ This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 5 of 12 AMG4783BxE-SF Instruction Sheet document without notice. - Page 6 > 0dBm (overload at +6dBm) audio not present or < -40dBm This represents the audio signals being received from the optical fibre. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 12 AMG4783BxE-SF Instruction Sheet document without notice.
-
Page 7: Ethernet Operation
Ethernet Operation In order for the AMG system to transmit Ethernet signals, an onboard RJ45 Ethernet interface or X16003 Ethernet interface adaptor should be fitted to both the Transmit unit and the Receive unit. The Ethernet interface can operate at either 10Mbits/s half duplex, or 100Mbit/s full duplex, and data is transmitted from one port the other port with the minimum of delay or buffering. -
Page 8: Data And Audio Channel Configuration
RS485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 9: Data / Audio Channel B Configuration
Brown Note: (A) or (B) in brackets in above table refers to RS485 / RS422 data specification, not Channel A, Channel B. AMG Systems Ltd. reserves the right to make changes to this Page 9 of 12 AMG4783BxE-SF Instruction Sheet document without notice. -
Page 10: Physical Information

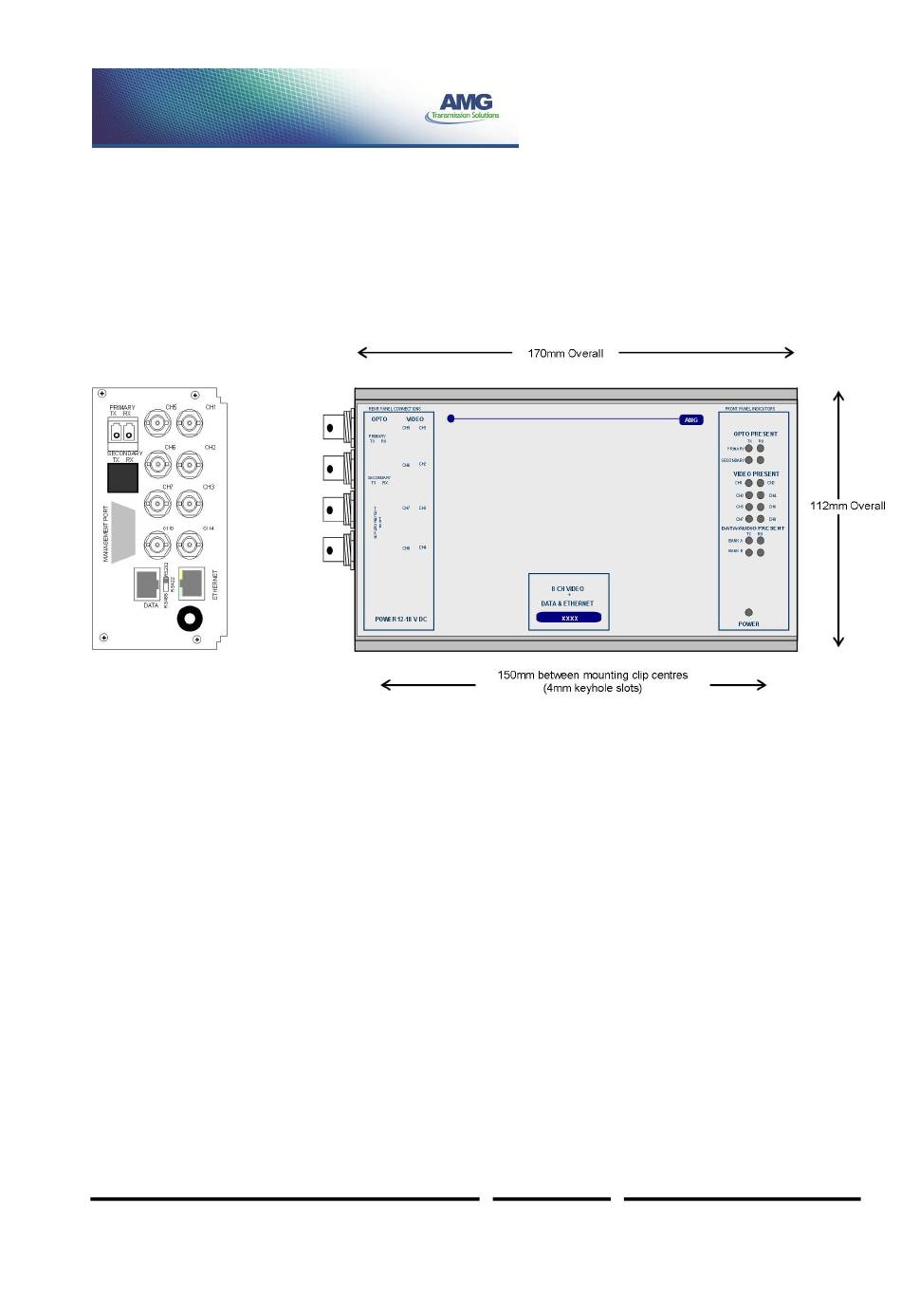

Weight ..........1000grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position. - Page 11 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 11 of 12 AMG4783BxE-SF Instruction Sheet document without notice. The information herein is believed to D18967-00.doc be accurate. No responsibility is assumed by AMG for its use.
