2 Channel Video Transmit Unit with Bi-directional Data
The AMG4723-CWDMn-MP is a standalone two channel video transmit unit designed to transmit 2
video signals and transmit and receive 1 data signal over two singlemode fibres.
The AMG4723-CWDMn-MP transmits on a CWDM wavelength defined by the 'n' in the CWDMn
partno. as detailed in the table overleaf, but can receive from any 1310nm or 1550nm band
wavelength.
The AMG4723-CWDMn-MP is designed to be powered using an AMG2003 standalone power supply.
The AMG4723-CWDMn-MP is designed to operate with AMG4724-CWDMn-MP or rackmount
equivalent AMG4724-CWDMn-R two channel video receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Channel for CWDM
AMG4723-CWDMn-MP
Instruction Manual
Page 1 of 8
AMG4723-CWDMn-MP Instruction
Sheet D18970-01.doc
Advertisement
Table of Contents
Related Manuals for AMG AMG4723-CWDMn-MP
Summary of Contents for AMG AMG4723-CWDMn-MP
- Page 1 2 Channel Video Transmit Unit with Bi-directional Data Channel for CWDM The AMG4723-CWDMn-MP is a standalone two channel video transmit unit designed to transmit 2 video signals and transmit and receive 1 data signal over two singlemode fibres. The AMG4723-CWDMn-MP transmits on a CWDM wavelength defined by the 'n' in the CWDMn partno.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case ..................7 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4723-CWDMn-MP Instruction document without notice. The information herein is believed to Sheet D18970-01.doc... -
Page 3: Introduction
For CWDM wavelengths 11-16, ITU-T G652C or D fibre is recommended. Optical Connection The AMG4723-CWDMn-MP is connected as illustrated below when used with an AMG4724-CWDMn- MP receive unit acting as a point to point system. Alternatively, the AMG4723-CWDMn-MP and AMG4724-CWDMn-MP may be interconnected with additional system units operating at different optical wavelengths on the same fibre using external couplers. -
Page 4: Connections
Wavelength .......... Any 1310nm or 1550nm band Optical Fibre ........Singlemode Optical Overload ........-5dBm NOTE: The optical launch power may overload the input of an AMG receiver if connected directly. A minimum of 5dB loss is required to ensure correct operation. Power Connection Connector Type ........ -
Page 5: Data And Audio Channel Configuration
RS485 bus high (+5 volts) and the other arm low (0 volts) using high value resistors within the third party equipment. In order to ensure that the AMG equipment detects a tri-state condition, then these resistors should have a value above 5kΩ. If the third party bias resistors are less the 750Ω... -
Page 6: Front Panel Indicators
OUT+ logic one (-V) present on OUT+ This represents the data signals being received on the optical fibre AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG4723-CWDMn-MP Instruction document without notice. The information herein is believed to Sheet D18970-01.doc... -

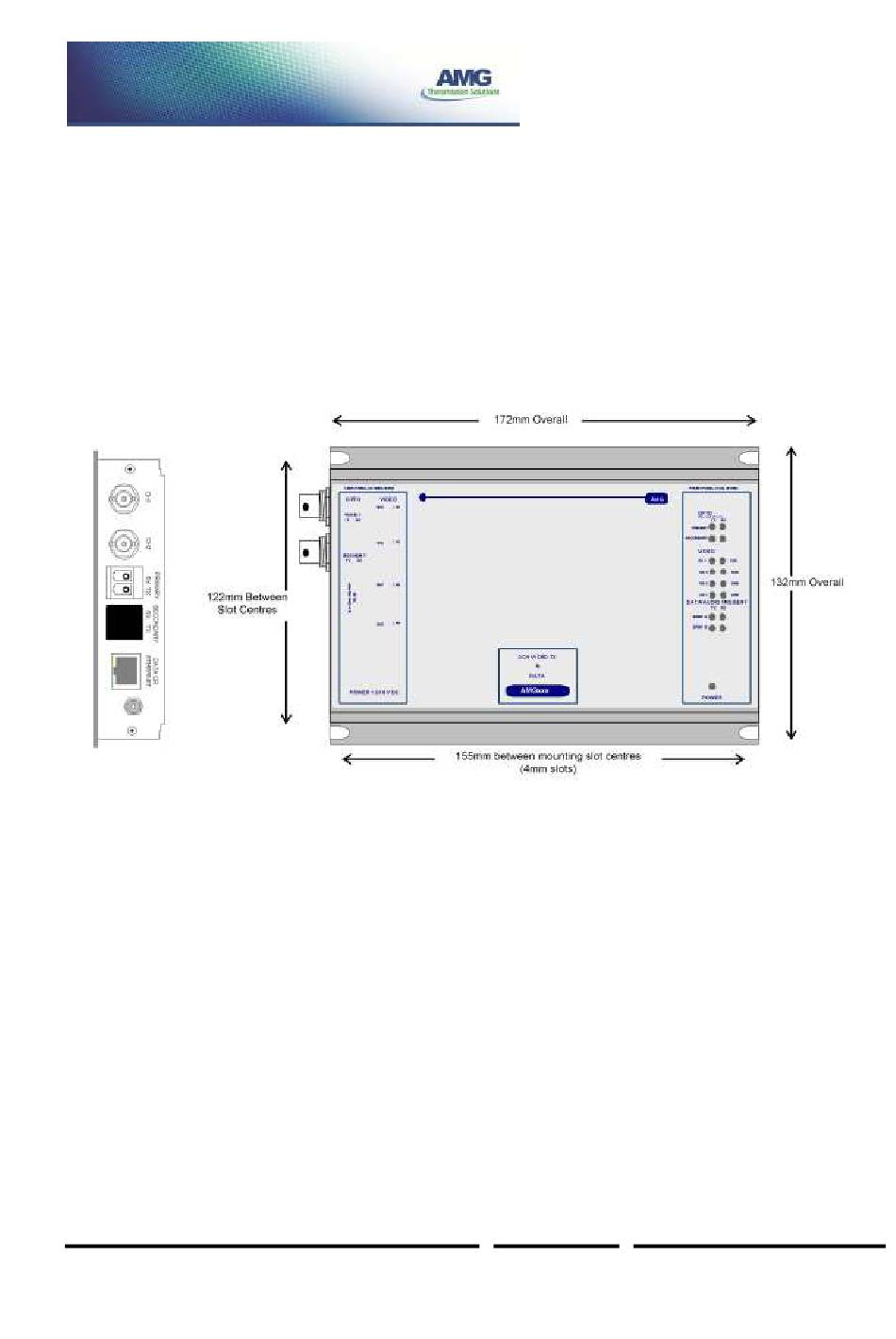

Page 7: Physical Information
Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws. The unit is clipped into the mounting bracket, and is then held firmly in position. - Page 8 This page is intentionally blank. AMG Systems Ltd. reserves the right to make changes to this Page 8 of 8 AMG4723-CWDMn-MP Instruction document without notice. The information herein is believed to Sheet D18970-01.doc be accurate. No responsibility is assumed by AMG for its use.
