- Page 1 AXIS T61 Mk II Audio and I/O Interface Series AXIS T6101 Mk II Audio and I/O Interface AXIS T6112 Mk II Audio and I/O Interface User manual...
-
Page 2: Table Of Contents
AXIS T61 Mk II Audio and I/O Interface Series Table of Contents Installation .......... -
Page 3: Installation
Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=78844§ion=install How to install AXIS T6101 Mk II Audio and I/O Interface To watch this video, go to the web version of this document. help.axis.com/?&piaId=78844§ion=install How to install AXIS T6112 Mk II Audio and I/O Interface... -
Page 4: Configure Your Device
Provide visual indication of an ongoing event You have the option to connect the AXIS I/O Indication LED to your network camera. This LED can be configured to turn on whenever certain events occur in the camera. For example, to let people know that video recording is in progress. - Page 5 8. Create a second rule and select the same Condition as in the first rule. 9. In the list of actions, select Toggle I/O while the rule is active, and then select the port the AXIS I/O Indication LED is connected to.
- Page 6 AXIS T61 Mk II Audio and I/O Interface Series Configure your device If you want to open the gate whenever an event is triggered, click to set the normal state to circuit closed. Create rules 1. Go to System > Events and add a rule.
-
Page 7: Audio
AXIS T61 Mk II Audio and I/O Interface Series Configure your device Audio Add audio to your recording Turn on audio: 1. Go to Video > Stream > Audio and include audio. 2. If the device has more than one input source, select the correct one in Source. -
Page 8: Specifications
AXIS T61 Mk II Audio and I/O Interface Series Specifications Specifications Product overview AXIS T6101 and AXIS T6112 LED indicator I/O connector Audio out Audio in Network connector (PoE out) Network connector (PoE in) -
Page 9: Solution Overview

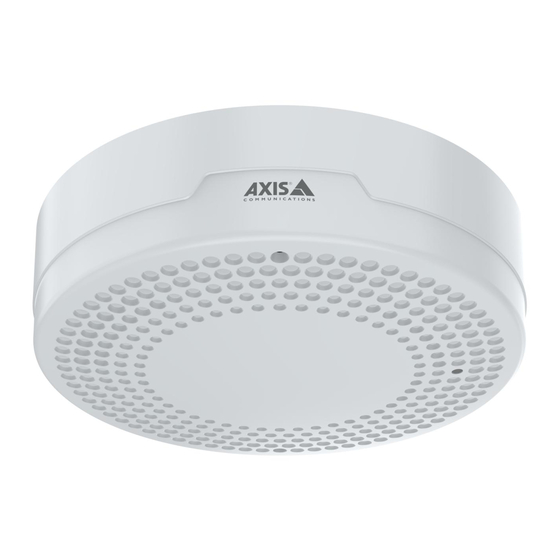

AXIS T61 Mk II Audio and I/O Interface Series Specifications AXIS T6112 Bracket mount Side lid Microphone connector Cover Microphone Status LED Solution overview AUDIO 1 2 3 4 PoE OUT PoE IN LED indicators Status LED Indication Green Steady green for normal operation. -
Page 10: Connectors
AXIS T61 Mk II Audio and I/O Interface Series Specifications Amber/Red Flashes amber/red if network connection is unavailable or lost. Flashes red for firmware upgrade failure. Connectors Network connector Input: RJ45 Ethernet connector with Power over Ethernet (PoE). Output: RJ45 Ethernet connector with Power over Ethernet (PoE). - Page 11 AXIS T61 Mk II Audio and I/O Interface Series Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out.
-
Page 12: Troubleshooting
Troubleshooting Troubleshooting Technical issues, clues and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support The Audio tab and I/O icon are not visible in the camera’s webpage The webpage is not updated. - Page 13 User manual Ver. M1.14 AXIS T61 Mk II Audio and I/O Interface Series Date: March 2023 © Axis Communications AB, 2023 Part no. T10189576...
