Thermal Map Sensor & Rack Map Manual
Thermal Map Installation
Thermal Maps are easy to install, come pre wired and ready to mount with magnetic, cable ties or
ultra high bond adhesive tape to hold them in position in your cabinet.

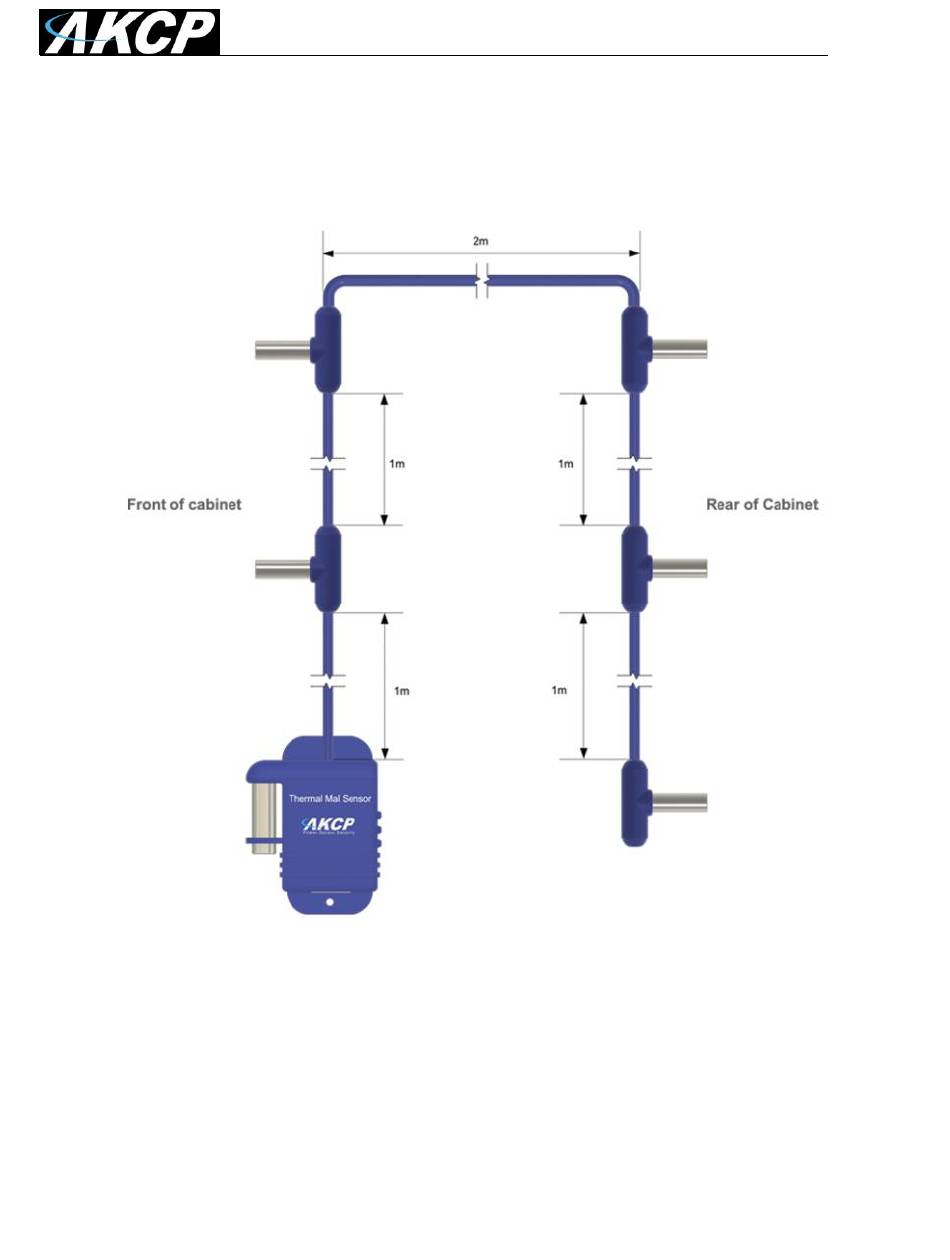

As shown in the diagram above, mount each sensor on the front and rear doors of your perforated
cabinet so they are exposed directly to the airflow in and out of the rack. Please see pictures below
on installing the sensor.
On sealed cabinets, they can still be mounted on the inside and give the same monitoring of the
temperature differential between front and rear, and ensure that airflow is distributed across the
cabinet.
- 4 -
