Summary of Contents for AKCP ropeWater

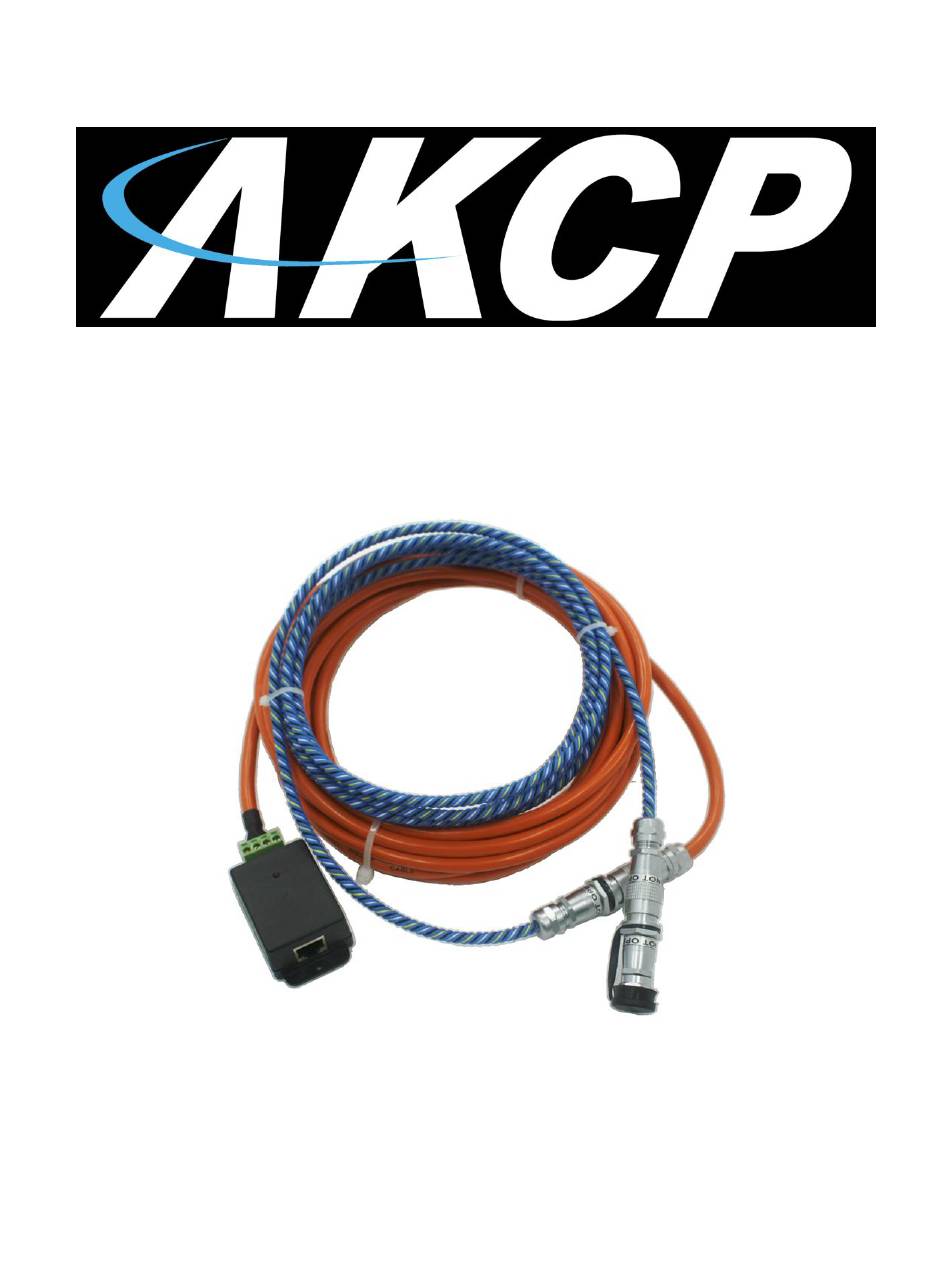

- Page 1 Sensor Copyright © 2014, AKCess Pro Co., Ltd..
- Page 2 Therefore, if it encounters a critical condition at any time, it will report that condition before it returns to a normal state. The value of the status for the SNMP OID for the ropeWater sensor can be Normal, No Status, Critical or Sensor Error.
- Page 3 Detector Up to 8 ropeWater sensors per unit sensorProbe8. Hundreds of ropeWater sensors per securityProbe 5E and E-sensor8 E-modules Full Autosense including disconnect alarm if cut, broken, or disconnected Sensing rope cable can be pre-ordered from a 10 foot minimum to any custom run length of up to 165 feet or 50 meters.
- Page 4 Status: If the sensor is offline, the status is No Status. If the sensor is online, and there is no water detected, the status is Normal. If water is detected, then the status is Critical. If at any time communications with the ropeWater sensor are lost, the status of the ropeWater sensor is changed to Sensor Error.
- Page 5 Configuring the RopeWater sensor on a securityProbe or a securityProbe 5E unit The ropeWater sensor shows the “Normal” status in Summery page after connecting the sensor and when water is detected is will show “Crtical” in this page and the syslog: Use the Sensors page and the Water Detector sensor settings in the sensorProbes web interface for configuring the ropeWater sensors settings.
- Page 6 Note: This product is designed for short term exposure to battery acid only. Tested with 40% concentrate Sulphuric acid (H2SO4) Mounting the ropeWater sensor We recommend using any standard plastic U-clip or half U-clip with the adhesive base as shown in these two pictures below.
- Page 7 “wet” or critical condition back to the “normal” or non-critical condition. Trouble Shooting the ropeWater sensor The rope type sensors are sensitive to EMI and also metallic or conductive items and surfaces.
- Page 8 Detector 2. Check the tail connector contacts if they are not damaged. After checking, reconnect them together as shown in the picture below. - 8 -...
- Page 9 Notes on the Impedance and Sensitivity of the ropeWater Sensors The rope sensors come with the impedance value in the package. If they don’t have this then this is how it is calculated: Regarding the sensing impedance, please find below the instruction to calculate it for more custom value.
- Page 10 For the Locate ropeWater Sensors, the value is printed on a sticker which goes to the tail connector and to a quick start guide for setting it up on the web UI.
