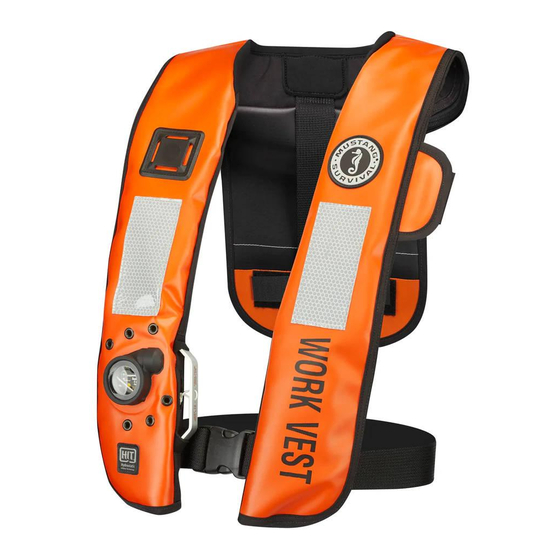

- Page 1 FOR MODEL NUMBER MD3188v02 MANUFACTURER'S MANUAL INFLATABLE PFD MD3188v02 HYDROSTATIC INFLATION MODEL MANUAL WITH AUTOMATIC BACKUP USCG APPROVALS: COMMERCIAL: TYPE V WORK VEST UNINSPECTED COMMERCIAL VESSELS: TYPE V RECREATIONAL: TYPE II DO NOT REMOVE PRIOR TO SALE HT3188 REV 15JUN2021...
-
Page 2: Table Of Contents
CARE AND MAINTENANCE INSTRUCTIONS ......... 18 BEFORE EACH USE..................18 AFTER EACH CO INFLATION ..............18 EVERY THREE MONTHS ................19 ANNUALLY ......................20 EVERY FIVE YEARS ..................20 CLEANING AND STOWAGE OF YOUR PFD........21 MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... - Page 3 AIRLINE OPERATOR POLICY ON CARRIAGE OF INFLATABLE PFDs AND CO CARTRIDGES ..............31 COPYRIGHT © 2020 MUSTANG SURVIVAL CORP. NO PART OF THIS DOCUMENT MAY BE REPRODUCED, TRANSMITTED, OR TRANSCRIBED IN ANY FORM OR BY ANY MEANS WITHOUT THE EXPRESS PERMISSION OF MUSTANG SURVIVAL CORP.
-
Page 4: Introduction
The inflator must be submerged to activate. The MD3188v02 PFD may also be inflated manually, prior to submersion, by pulling the manual inflation handle. The MD3188v02 PFD is designed to o er maximum mobility with minimum bulk. -
Page 5: Approval Conditions And Carriage Regulations
Hydrostatic inflation and pill or bobbin type inflation do not qualify as the same method of operation. Recreational Boats – Model MD3188v02 is approved by the USCG for use as a Type II Personal Flotation Device (PFD). It is not approved for water skiing or other high impact, high speed activities. -
Page 6: Mandatory Carriage Requirements
It is recommended that you familiarize yourself with the procedures outlined in the “Instructions for Use” on the following page. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 7: Instructions For Use
INSTRUCTIONS FOR USE This manual supplies instructional, maintenance, and safety information for model MD3188v02. The PFD model number is listed on the underside label. COMMERCIAL VESSEL USE This inflatable PFD is not approved for “hot work.” Although the outer cover in the packed condition is resistant to abrasion and puncture, care must be taken to avoid damage from heat, abrasion, and sharp objects. - Page 8 Check that the PFD is not twisted. • Feel the device around your neck to ensure it is not twisted. CONTACT YOUR MUSTANG DEALER IF YOU HAVE ANY CONCERNS ABOUT THE READINESS OF YOUR PFD. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
-
Page 9: Sizing And Fit
SIZING AND FIT This PFD provides a minimum of 33.7 pounds (150 N) of buoyancy when inflated and is designed for wearers over 16 years of age, with a chest range of 30-52 inches (76-132 cm) weighing over 80 pounds (36 kg). -
Page 10: Removing Your Pfd
A slight reduction of pressure will be observed after several hours of inflation. Topping up by oral inflation may be required in the event of prolonged immersion. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... - Page 11 3. Oral Inflation – Properly armed and inspected PFDs will inflate when manually or automatically activated. However, you can fully inflate the PFD by mouth (Fig. 5) should inflation not occur, or if you are in a non-emergency situation. To orally inflate the PFD in a non-emergency situation: Ensure the cylinder body and inflator cap are properly installed.
-
Page 12: Special Consideration For Inflatable Devices
Cap in deflate fingertip. The cap will not position lock in the deflate position so it is necessary to hold it in place (Fig. 6). FIGURE 6 DEFLATE POSITION MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 13: Re-Arming Your Pfd
2. Gently squeeze the PFD until all air or gas has been expelled. To avoid damage, do not wring or twist the PFD. Put the inflation tube cap back in its stowed Stowed Deflate position position position on the oral inflation tube (Fig. - Page 14 UNLOCK BLACK RING 3. Turn the black locking ring counterclockwise and lift o the cap (yellow inflator operating head), Fig. 10. Dispose of the used cap. FIGURE 10 REMOVE YELLOW CAP MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
- Page 15 4. Squeeze the sealing ring to elongate and remove the inflator body through the sealing ring (Fig. 11). 5. Dispose of the used inflator body (Fig. 12). Red Indicator Red Indicator In ator Body Sealing Ring rash FIGURE 11 REMOVE CYLINDER FIGURE 12 RED=TRASH 6.
- Page 16 fingertip. Gently squeeze the PFD until all air or gas has been expelled. Let the PFD dry before repacking. 13. Refold the PFD in accordance with the repacking section (page 14). MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
-
Page 17: Repacking Your Pfd
REPACKING YOUR PFD BEFORE FOLLOWING THE REPACKING SEQUENCE, BE SURE TO PROPERLY RE-ARM YOUR PFD, PAGE 10. ENSURE ALL AIR IS REMOVED BEFORE REPACKING. Lay the PFD on a flat, clean surface. 2. Fold wearer’s right side (A) inward along the full length of the PFD (Fig. - Page 18 (Fig. 26). Ensure that the inflatable cell does not get caught by the zipper when closing. Zipper Stops Flap Flap FIGURE 25 FIGURE 26 RESET 1: UP RESET 1: DOWN MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
- Page 19 7. Fasten the Velcro™ tab (H) (Fig. 27) to keep zipper closed. FIGURE 27 CLOSE TAB H 8. Reset 2: Pull the slider (I) to the Velcro™ tab (H) (Fig. 28). Close by pulling slider (I) in the opposite direction to the end of the zipper (Fig.
-
Page 20: Is Your Pfd In Good And Serviceable Condition
See “Instructions for Use,” page 4. Failure to follow these instructions rigorously could result in a non- functioning PFD causing injury or death. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 21: Care And Maintenance Instructions
CARE AND MAINTENANCE INSTRUCTIONS These instructions apply to recreational users, commercial vessel operators, and designated maintenance personnel. Check the following at the intervals listed below. Descriptions for each test are given below the table: Inspection and Maintenance Schedule Before After each Every 3 Annually* Every 5... -
Page 22: Every Three Months
Mustang dealer for evaluation and/or servicing. Repack the PFD as outlined in the repacking section, page 14. CONDUCT THESE TESTS MORE OFTEN IF THE PFD IS EXPOSED TO POTENTIAL DAMAGE OR USED IN EXTREME CONDITIONS. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 23: Annually
Re-arm and repack the PFD as outlined in the re-arming (page 10) and repacking (page 14) sections. WARNING: IF YOU ARE NOT CONFIDENT IN THE SELF-INSPECTION AND SERVICING OF YOUR PFD IN ACCORDANCE WITH THESE INSTRUCTIONS, TAKE YOUR PFD TO A MUSTANG DEALER FOR PROFESSIONAL SERVICING OR CONTACT MUSTANG SURVIVAL. -
Page 24: Cleaning And Stowage Of Your Pfd
• A leaking cell – perform the Leak Test in “Every Three Months,” page 19. If your PFD exhibits any of the above, contact your Mustang dealer for professional servicing or contact Mustang Survival. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 25: Commercial Training Content And Procedure
float you unless inflated. The MD3188v02 features Hydrostatic Inflator Technology (HIT)™, which reduces instances of inadvertent inflation due to moisture or spray. The inflator must be submerged in at least four inches of water before it automatically inflates. -
Page 26: Use
• Do not fasten the device to a boat unless the attachment is capable of being pulled free, such as a kill switch. • Do not wear this device under clothing, as inflation under clothing will restrict breathing or may otherwise injure you. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 27: Maintenance
• Always have re-arm kits (MA5283) available to service your PFD. • Check the date of the inflator cap to ensure it has not expired. • If you need to jump from any height, always fold your arms over your chest to keep the PFD in place when entering the water. •... -
Page 28: Why Are Pfds Required Safety Equipment
Since this inflatable PFD does not have inherent buoyancy, it provides flotation only when inflated. Familiarize yourself with the use of this PFD so you know what to do in an emergency. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 29: How And Why To Test Your Pfd
HOW AND WHY TO TEST YOUR PFD Inflate your PFD and try it out in the water to: Make sure it floats you: • Comfortably (when worn properly) • Adequately for expected wave conditions (body shapes / densities a ect performance) Make sure it works: •... -
Page 30: How To Test Your Pfd Using The Manual Inflator
Note this level of inflation because it is the minimum needed for you to safely use this PFD. O6. Fully inflate the PFD using the oral inflator. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... -
Page 31: Wear Your Pfd
O7. See if the PFD will float you on your back or just slightly back of vertical. In a relaxed floating position, verify that your mouth is well above the water’s surface. Note the e ect of where you hold your legs on how you float. - Page 32 5. If there is more than one person in the water, huddling is recommended while waiting to be rescued. This action tends to reduce the rate of heat loss and thus increase the survival time. FIGURE 32 HELP MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
-
Page 33: Each Of These Devices Is Intended To Help You Save Your Life
EACH OF THESE DEVICES IS INTENDED TO HELP YOU SAVE YOUR LIFE For your inflatable PFD to function properly, follow these suggestions to verify that it fits, floats, and remains in good condition. Check the single point status indicator before each use. 2. -
Page 34: Airline Operator Policy On Carriage Of Inflatable Pfds And Co
Please refer to the governing body’s documentation, found online at http://hazmat.dot.gov. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD... - Page 36 We build gear that saves lives and fuels exploration. www.mustangsurvival.com DO NOT REMOVE PRIOR TO SALE. MUSTANG SURVIVAL AND SEA HORSE DESIGN ARE ALL REGISTERED TRADEMARKS OF MUSTANG SURVIVAL CORP. MUSTANG SURVIVAL / MANUFACTURER’S MANUAL – MD3188v02 / INFLATABLE PFD...
