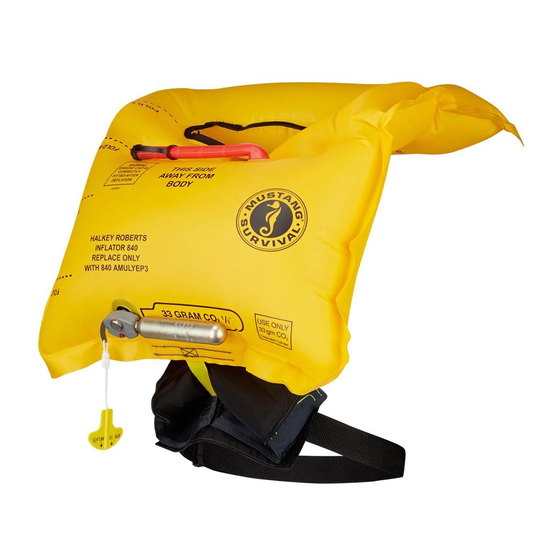

Mustang Survival MD3025 Owner's Manual

Inflatable pfd manual inflation pouch model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Inflatable PFD Owner's Manual
MD3025 Manual Inflation Pouch Model
USCG Approved Type V,
Approved Only When Worn,
Special Use Device
DO NOT REMOVE PRIOR TO SALE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD3025 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mustang Survival MD3025

Summary of Contents for Mustang Survival MD3025

  • Page 1 Inflatable PFD Owner’s Manual MD3025 Manual Inflation Pouch Model USCG Approved Type V, Approved Only When Worn, Special Use Device DO NOT REMOVE PRIOR TO SALE.

  • Page 2: Approval Conditions And Carriage Regulations

    DO NOT REMOVE PRIOR TO SALE. This device will not inflate automatically upon immersion. Tab must be pulled to activate inflation mechanism. APPROVAL CONDITIONS AND CARRIAGE REGULATIONS This inflatable PFD is approved by the U.S. Coast Guard for use as a Type V Personal Flotation Device (PFD).

  • Page 3: Mandatory Carriage Requirements

    MANDATORY CARRIAGE REQUIREMENTS Federal regulations in 33 CFR 175-1993 require you to carry Coast Guard approved personal flotation devices (PFDs) legibly marked with the Coast Guard approval number which are in good and serviceable condition and are the correct size for each person on board.
  • Page 4 Check Your Inflatable PFD Before Using it After purchasing your inflatable PFD, make sure it has an unused 33 gram CO2 cylinder attached to the inflator mechanism (Fig. 1a). Before each outing: Check the components and how to assemble the inflator by following these steps: 1) Undo the Velcro flap on the back side ™...

  • Page 5: Donning Instructions

    1) All belts and straps are already threaded correctly and only need to be adjusted for fit. The MD3025 waist belt should fit securely below your rib cage. 2) Put the inflatable Pouch PFD on just like a standard waist belt pack, and fasten the front buckle.
  • Page 6 Deployment and Use of the PFD (Fig. 2, Steps 3-6). Inflating then donning 1) Either pull on the yellow strap to bring out the bladder, then inflate orally, or pull sharply on tab to inflate. 2) Put over head. 3) Tie the tie tapes at neckline. Donning then inflating 1) Pull on the yellow strap to bring out the bladder 2) Put over head.
  • Page 7 Information: The carbon dioxide used to inflate PFDs will slowly permeate through the fabric cell over time. A slight reduction of pressure will be observed after several hours of inflation. Topping up by oral inflation may be required in the event of very prolonged immersion.
  • Page 8 Deflating the Buoyancy Cell To deflate the buoyancy cell, reverse the oral-inflation tube dust cap and insert it into the valve or depress valve with fingertip. The dust cap will not lock in the deflate position so it is necessary to hold it in place (Fig.5).
  • Page 9 4) Without twisting, fold the bladder over once and place into the center of the pouch between the two wings (Fig.6d). Ensure the yellow inflator pulltab is positioned so it hangs out from the upper left hand corner (above left side wing). 5) Fold both side wings on top of the bladder and secure wingtips together with Velcro at ends.

  • Page 10: Usage Below Freezing

    Usage Below Freezing When the temperature is below freezing, a fully discharged cylinder may not adequately inflate your PFD. Do not use your PFD under these conditions unless it is already partly inflated. Warning: CO2 inflation could over-pressurize and damage your PFD if already fully orally inflated.
  • Page 11 Warning: If you are not confident in the self inspection and servicing of your PFD, in accordance with these instructions, take your inflatable PFD to a Mustang dealer for professional servicing or contact Mustang Survival (see contact information on back of manual). Mustang Inflatable PFD Safety Accessories MA7113 33 gram CO2 replacement cylinder and green indicator pin.

  • Page 12: Why Are Pfds Required Safety Equipment

    Cleaning and Storing Your Inflatable PFD To clean your inflatable PFD, remove the CO2 gas cylinder. Hand wash or sponge down in warm, soapy water and rinse with clean water. Hang to dry on a plastic coat hanger. Be sure to replace CO2 cylinder.

  • Page 13: How And Why To Test Your Pfd

    How and Why to Test your PFD Inflate your PFD and try it out in the water to: · Make sure it floats you: Comfortably (when worn properly) Adequately for expected wave conditions (Body shapes/densities affect performance) · Make sure it works: A flow of bubbles should not appear (see CARE AND MAINTENANCE INSTRUCTIONS for leak tests) It should inflate quick and easily.

  • Page 14: How Do You Test Your Pfd Using The Manual Inflator

    How do you Test your PFD using the Manual Inflator? 1) To test your inflatable PFD, you will need: · Your fully armed PFD, and · Rearming kit approved for your PFD. 2) Put on the PFD. 3) Actuate the inflation system by jerking firmly downward on the pull tab.

  • Page 15: How Do You Test Your Pfd Using The Oral Inflator

    How do you Test your PFD Using the Oral Inflator? 1) To test your inflatable PFD, you will not need any spare parts, or rearming kits. 2) Remove the CO2 cylinder, to prevent inadvertent activation of the manual inflation system which could potentially damage the PFD.

  • Page 16: Wear Your Pfd

    WEAR YOUR PFD In approximately 80 percent of all boating fatalities, the victims were not wearing a PFD. Most fatal accidents happen on calm sunny days. This inflatable PFD is much more comfortable to wear than other PFD types. Get into the habit of wearing this PFD. Non-swimmers and children especially should wear a hybrid or non-inflatable PFD at all times when on or near the water.
  • Page 17 60°F (15.6°C)] you should consider using a coat or jacket style PFD or a Type V Thermal Protective PFD as they cover more of the body than the vest or belt style PFDs. Some Points to Remember About Hypothermia Protection: 1) Always wear your PFD.
  • Page 18 EACH OF THESE DEVICES IS INTENDED TO HELP YOU SAVE YOUR OWN LIFE For your PFD to function properly, follow these suggestions to verify that it fits, floats, and remains in good condition. 1) Check the inflation mechanism status indicators before each use.

  • Page 19: Additional Information

    ADDITIONAL INFORMATION If you need more information about PFDs and safe boating, contact your state boating authority, U.S. Coast Guard Auxiliary, U.S. Power Squadron, Red Cross, or your nearest unit of the U.S. Coast Guard. To find out about free boating courses in your area call 1-800-336-BOAT (in Virginia, call 1-800-245-BOAT).
  • Page 20 WE SAVE LIVES FOR A LIVING mustangsurvival.com 1.800.526.0532 custserv@mustangsurvival.com email Mustang Survival and seahorse design is a registered trademark of Mustang Survival Corp. HT-1153 (Rev 17June2019)
