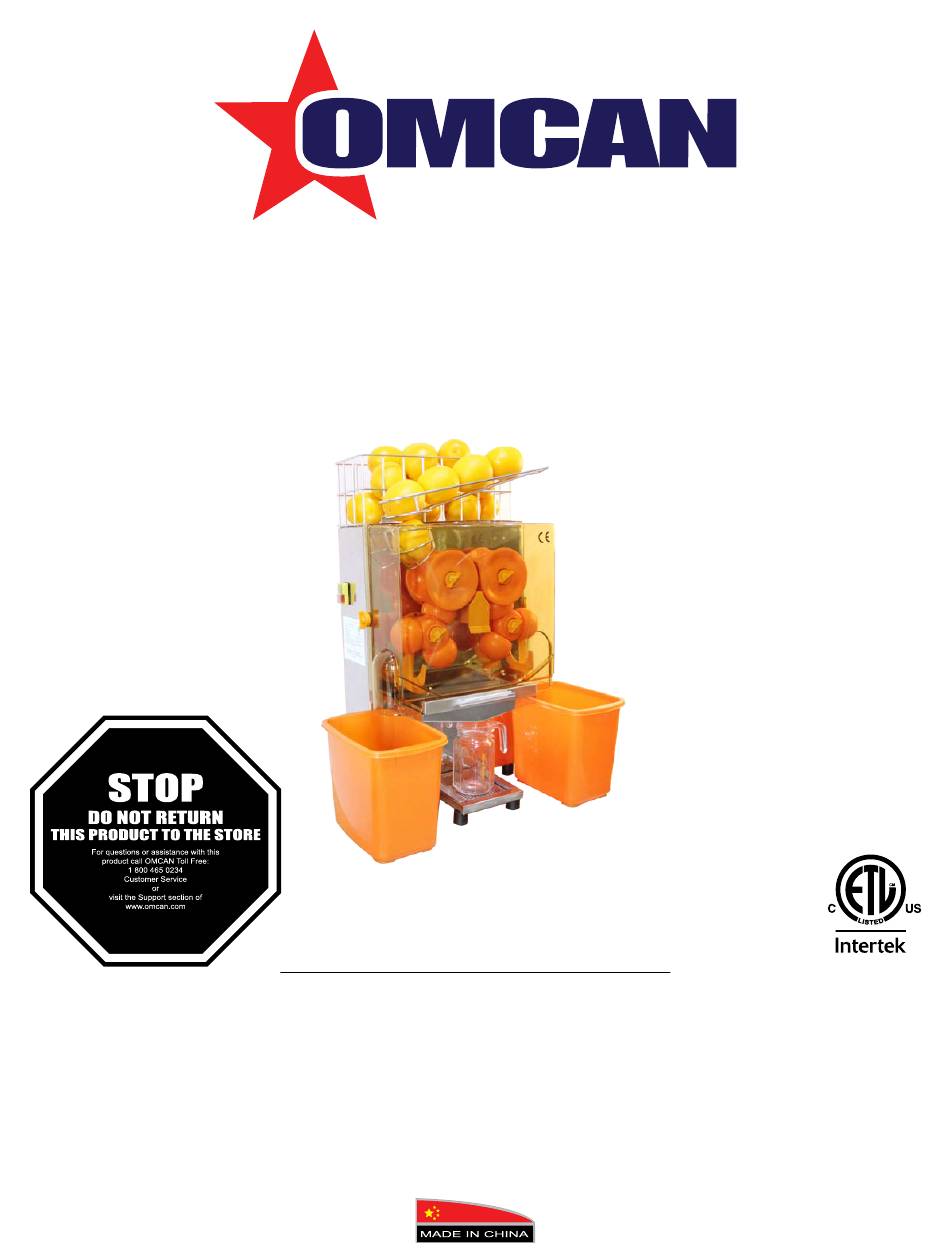

- Page 1 Orange Juicer Model JE-CN-0020 Item 44228 Instruction Manual Revised - 03/01/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model JE-CN-0020 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Operation ----------------------------------------------------------------------------------------- 6 - 7 Maintenance ----------------------------------------------------------------------------------- 8 - 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11 Parts Breakdown... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. -
Page 6: Operation
Operation BEFORE OPERATION 1. The power supply must be safely grounded, and the machine connection parts shall only be changed by qualified individuals. 2. Check whether all parts are installed properly. This product is equipped with a safety system, only after the machine cover is correctly installed, it can work, the machine will not start otherwise. - Page 7 Operation 4. Plug in the machine and it will be ready to work. 5. Pressing the start switch can feed the oranges continuously into the feeding port, once one orange has been squeezed the skin will be discarded into each peel basket automatically. 6.
-
Page 8: Maintenance
Maintenance MAINTENANCE AND CLEANING 1. Before cleaning the product, the unit must be switched off, ensure to unplug the machine from the power source, always wait until the machine stops completely. 2. Clean the unit immediately after use. 3. The outer main body can be wiped with a damp cloth, do not wash the machine with water directly, remove the parts that come into contact with the oranges and wash thoroughly. - Page 9 Maintenance - Remove the two groups of concave and convex balls (each group of the concave and convex balls need to be removed at the same time). - After the cleaning of the unit is completed, re-install each part by following the previous instructions in the reverse order.
-
Page 10: Troubleshooting
Maintenance 4. Use one square and a triangle template to lock the left (or right) upper four corner angle shaft and lower triangular shaft under the ridge axis, and then install the small cylindrical gear. 5. The installation method of the other side of the small cylindrical gear is the same as part 4. Troubleshooting Type of Fault Problem... - Page 11 Troubleshooting Mechanical failure. The motor output shaft end bevel Check whether the size of bevel gear wheel transmission mesh. gear wheel is damaged. Check whether the meshing positions of the big and small bevel gears wheel are correct, the adjustable small bevel gears wheel is rising to the correct meshing position and tighten the hex screws on the gear( when the small bevel...
-
Page 12: Parts Breakdown
Parts Breakdown Model JE-CN-0020 44228... - Page 13 Parts Breakdown Model JE-CN-0020 44228 Item No. Description Position Item No. Description Position Item No. Description Position 65914 Cover for 44228 65900 Basket for 44228 65911 Blade Stand for 44228 19.3 65909 Screw for 44228 65926 Pyramid Axle for 44228...
-
Page 14: Electrical Schematics
Electrical Schematics Model JE-CN-0020 44228... -
