Summary of Contents for Omcan Santos 68

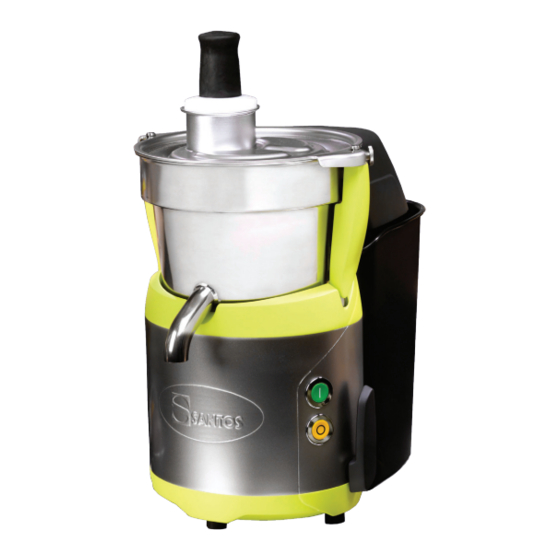

- Page 1 Santos Fruit & Vegetable Juicer Model Santos 68 Item 39684 Instruction Manual Revised - 12/30/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model Santos 68 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ----------------------------------------------------------------------------------- 8 - 10 Troubleshooting ----------------------------------------------------------------------------------- 10 Instructions Français... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 10. Use of spare parts other than certified original parts is prohibited. 11. Do not use the appliance if the power supply cord is damaged. It must be replaced by either a Omcan approved dealer or a person with similar qualifications to avoid any danger.
- Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. At 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 7: Technical Specifications
Technical Specifications Model Santos 68 Production per Hour 140L / 147 QT Power 1300 W / 1.74 HP 3600 Electrical 120V / 60Hz / 1 Current 10.8A Weight 55 lbs. / 25 kgs. Packaging Weight 62 lbs. / 28 kgs. -
Page 8: Operation
Operation Using: 1. Start the machine by operating the On button (11). 2. Place the recipient under the bowl spout (4). 3. Introduce the fruits or vegetables into the cover feed channel (2) and push them onto the rotating grater with the fruit plunger (3). -
Page 9: Maintenance
The safety feature has an automatic reset, so wait for the motor to cool (15 to 30 minutes), before restarting the machine. • If the problem persists, switch off the power supply to the machine (unplug the cord from the mains socket (10)) and call in the maintenance service or contact a Omcan approved dealer. -
Page 10: Troubleshooting
Distortion of the basket (5), check and replace if necessary. REFERENCE Item Number Model Number Description Manufacturer Model Number Juice Extractor 140 L / 37 Gal per Hour 39684 Santos 68 with EZY Clean 1.75 HP / 1300 W 68V1 110V/60/1 NSF cULus... -
Page 11: Instructions Français
11. Ne pas utiliser l’appareil si le cordon d’alimentation est endommagé. Il doit être remplacé soit par un concessionnaire Omcan approuvé ou une personne de qualification similaire afin d’éviter tout danger. 12. Ne raccordez jamais plusieurs appareils sur la même prise de courant. - Page 12 Instructions Français Si le câble d’alimentation (10) est endommagé, il doit être remplacé par un revendeur Omcan, Omcan ou une personne avec des qualifications similaires afin d’éviter tout danger approuvé. UTILISANT POUR LA 1ÈRE FOIS: 1. Retirer le piston (3).
- Page 13 Instructions Français NE PAS JETER MATÉRIAUX D’EMBALLAGE DANS L’ENVIRONNEMENT! SPÉCIFICATIONS TECHNIQUES Modèle Santos 68 Production par heure 140L / 147 QT Puissance 1300 W / 1.74 HP 3600 Électrique 120V / 60Hz / 1 Actuel 10.8A Poids 55 lbs. / 25 kgs.
- Page 14 Instructions Français 7. Retirer le poussoir à fruits (3) du canal couvercle d’alimentation (2). En utilisant: 1. Démarrer la machine en actionnant le bouton Marche (11). 2. Placez le récipient sous le bec de la cuve (4). 3. Présentez les fruits ou les légumes dans le canal couvercle d’alimentation (2) et pousser sur la râpe en rotation avec le poussoir à...
- Page 15 30 minutes), avant de redémarrer la machine. • Si le problème persiste, éteignez l’alimentation de la machine (débranchez le cordon d’alimentation de la prise de courant (10)) et faire intervenir le service de maintenance ou contacter un revendeur Omcan approuvé.
- Page 16 Distorsion du panier (5), vérifier et remplacer si nécessaire. RÉFÉRENCE Numéro Numéro de Numéro de modèle du La description d’article modèle fabricant Extracteur de jus 140 L / 37 Gal Par 39684 Santos 68 heure avec EZY Clean 1.75 HP / 1300 W 68V1 110V/60/1 NSF cULus...
- Page 17 Figure Drawings...
- Page 18 Figure Drawings Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Figure 9 Figure 8 Figure 7...
- Page 19 Figure Drawings Figure 10 Figure 11 Figure 12 Figure 13 Figure 14 Figure 15 Figure 16 Figure 17...
- Page 20 Figure Drawings ELEMENT CROSS-REFERENCE TABLE MARK Description MARK Description Clamping Handle Basket Screw Cover Discharge Channel Plunger Bowl Nut Bowl Basket Locking Spanner Centrifugation Basket Drive Pin Pulp Container Ring Bowl Centering Device Motor Shaft Motor Shaft Rocker Clamping Rod Power Supply Cord Grater Start Button...
-
Page 21: Parts Breakdown
Parts Breakdown Model Santos 68 39684... - Page 22 Parts Breakdown Model Santos 68 39684 Item No. Description Position Item No. Description Position Item No. Description Position 40924 Fruit Pusher for 68V1 68100 73480 Washer AZ 5 Stainless Steel for 68V1 68513 73512 Breaking Disc Washer for 68V1 68852...
-
Page 23: Electrical Schematics
Electrical Schematic Model Santos 68 39684 White White Blue Brown Starter Black relay Blue Capacitor Black White Green Green Yellow Yellow White Bowl tightening safery White Black device Black White White White White White Black Black Overload safety Black device... -
Page 24: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 25 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
