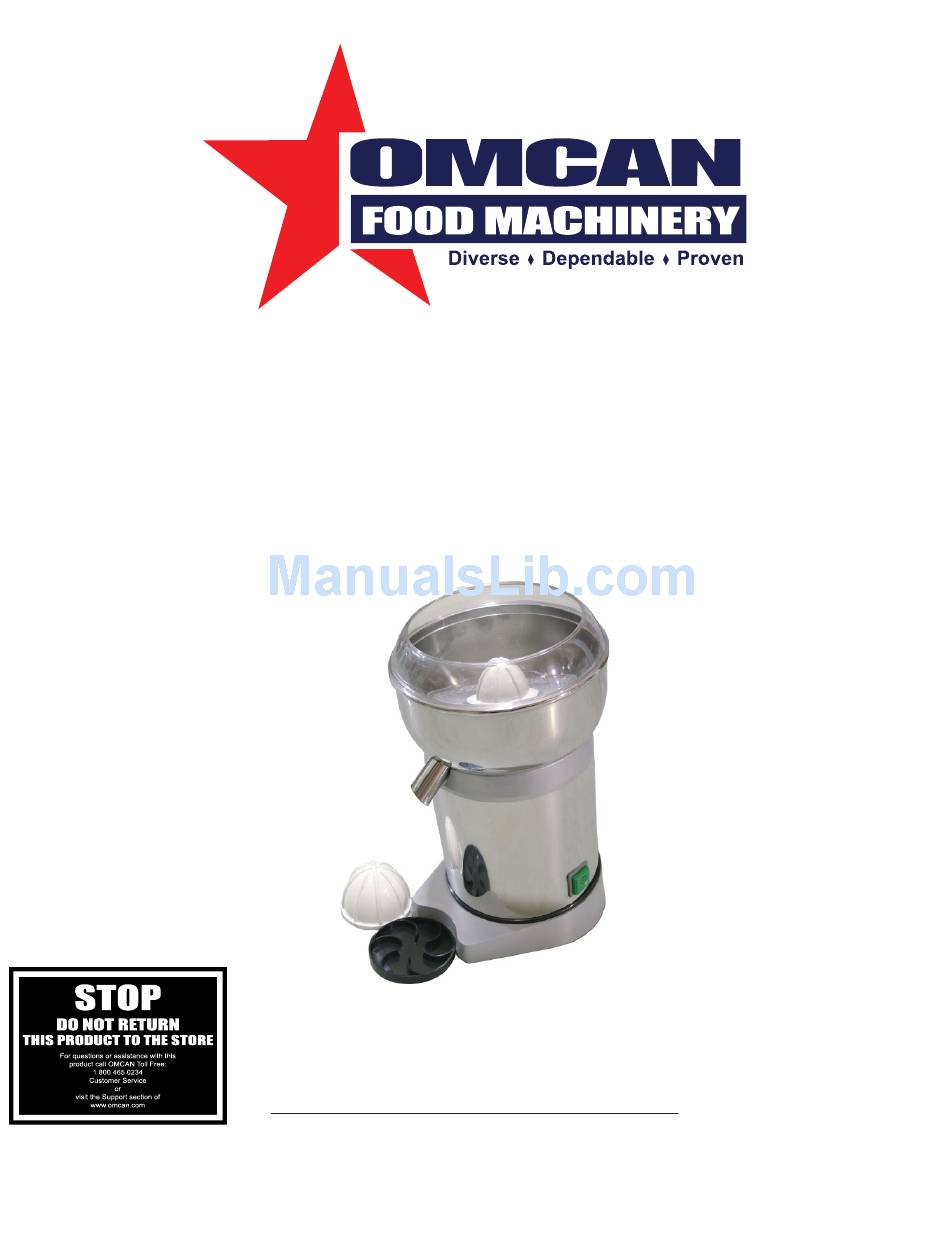

- Page 1 Citrus Juicer Models S40 Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 1889 Maryland Avenue, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model S40 Section Page General Information -------------------------------------------------------------------------------- 3 Safety & Warranty ------------------------------------------------------------------------------ 3 - 4 Technical Specifications ---------------------------------------------------------------------- 4 - 5 Installation -------------------------------------------------------------------------------------------- 5 Operation ----------------------------------------------------------------------------------------- 5 - 6 Maintenance ----------------------------------------------------------------------------------------- 6 Disposal ----------------------------------------------------------------------------------------------- 6 Parts Breakdowns... -
Page 3: General Information
General Information Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. -
Page 4: Technical Specifications
Safety & Warranty • This appliance shall be used exclusively for the purpose for which it was designed. Any other use shall be considered improper and therefore dangerous. Do not use the appliance to mix dangerous liquids or any other non-organic liquid. • When using this appliance, it is important to observe the following rules: 1. -
Page 5: Installation
Technical Specifications Installation INSTALLATION TO BE DONE BY LICENSED PROFESSIONALS ONLY. UNPACKING AND PREPARING THE APPLIANCE FOR USE • Unpack the appliance and remove the packing material. • Place the appliance on a surface which is not slippery. CONNECTION TO THE MAINS The connection to the electric supply have to be made by a magnetothermic omnipolar switch, with distance of 3 mm between any objects, fuses, or by a differential properly sized according to the electric norms in force. -
Page 6: Operation
Operation The juice will pass through the filter into the bowl where it runs into a drainage tube and is collected in the juice collector cup placed beneath the tube. Useful advice The juicer should only be used for the time period necessary to squeeze the fruit. Therefore, do not operate the appliance for long periods of time when it is empty. After using the appliance, it is advisable to disconnect it from the mains by means of the main wall switch. In case of prolonged work, the gear has a thermic switch which will temporarily turn off the gear to let it cool. -
Page 7: Parts Breakdowns
Parts Breakdown Model S40 13660... -
Page 8: Parts Breakdowns
Parts Breakdown Model S40 13660 Diagram Diagram Diagram Description Description Description 1300 Capacitor 1335 Large Spinner 1370 Protective Bottom 1305 Single Green Button Switch 1340 Stainless Steel Sieve 1375 Cable Terminal 1310 Power Cable 1345 Stainless Steel Tank 1380 V-Ring... -
Page 9: Electrical Schematics
Electrical Schematics Model S40 13660... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html For mailing in Canada For mailing in the US OMCAN INC. OMCAN PRODUCT WARRANTY REGISTRATION...
