5.

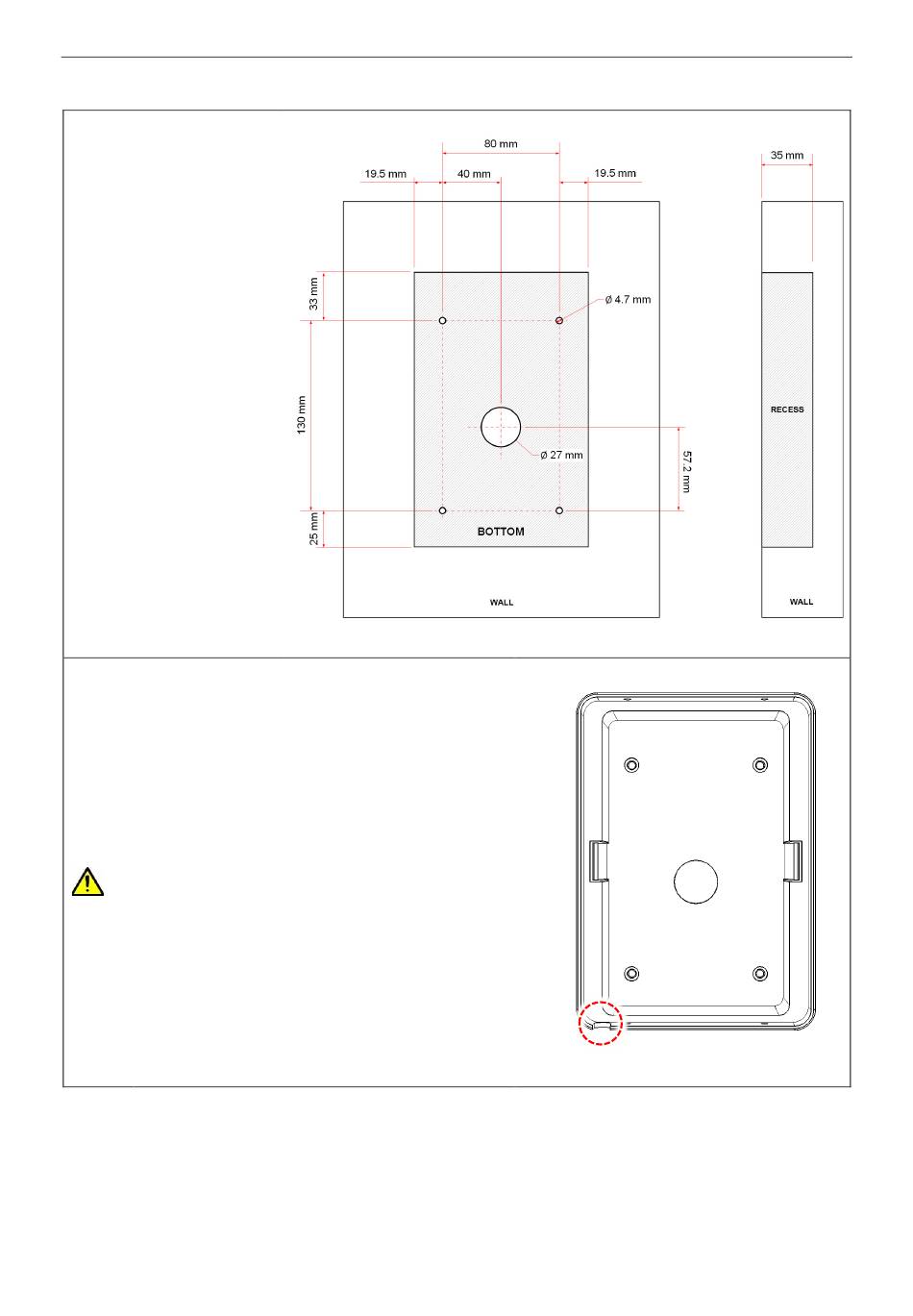

Prepare the wall recess
according to the
dimensions detailed on
the right.
Note location of cable
entry and mounting
holes.
6.
Mount the back box into the recess, ensuring that the
top/bottom orientation of the back box is correct.
7.
Fit the conduit or cable gland.
8.
Secure the back box in position using appropriate fixings.
The back box must be securely attached to the wall.
WMC01 – Installation Guide
U-0664-0758.docx – Issue: 01 complete, approved
Page 7 of 12
TOP
BOTTOM
Cut-out for local music input
