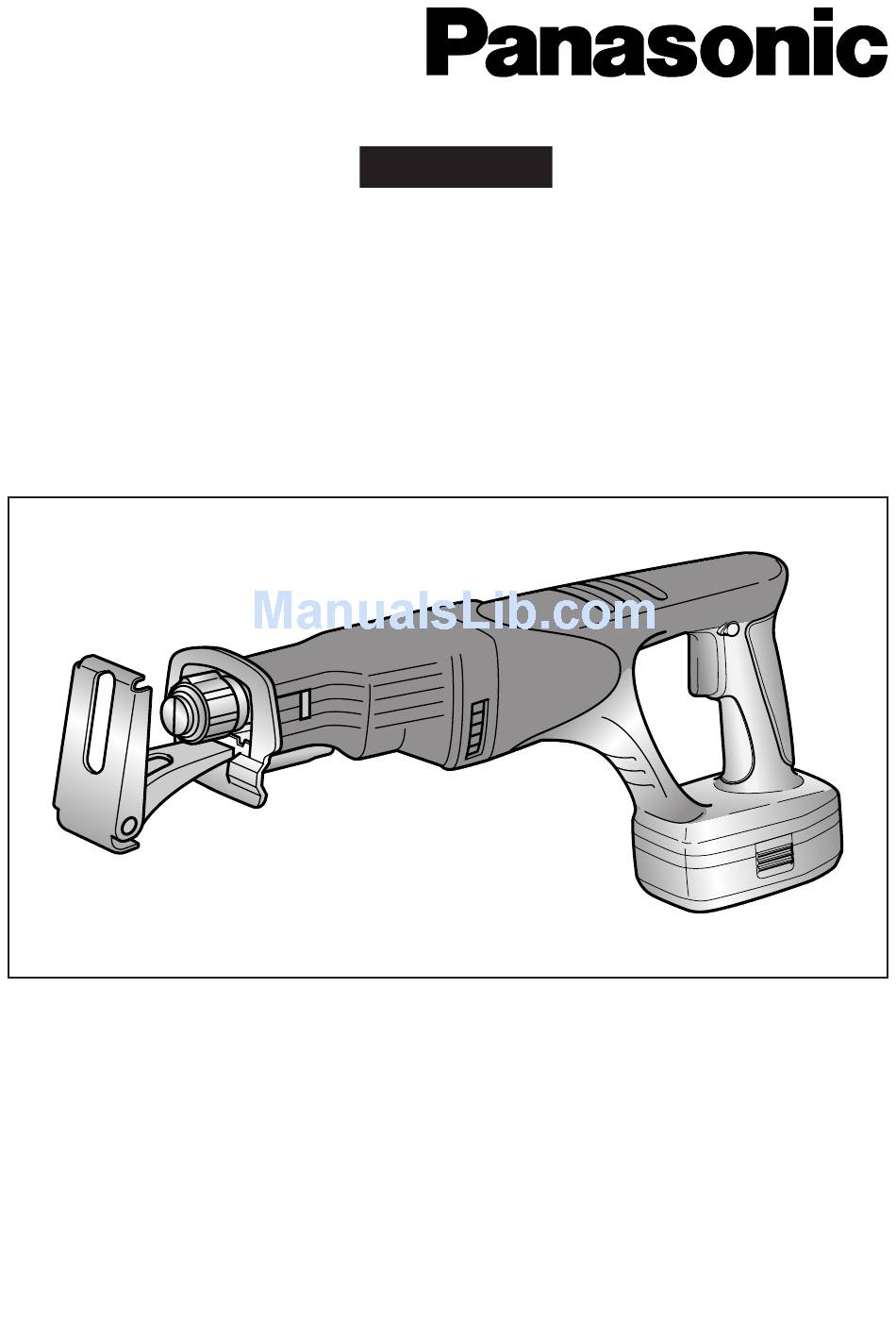

Cordless
Reciprocating Saw

Operating Instructions

Model No: EY3544
IMPORTANT
This manual contains safety information. Read manual completely before first using
this product and save this manual for future use.

Advertisement

   Also See for Panasonic EY-3544

   Summary of Contents for Panasonic EY-3544

  • Page 1: Operating Instructions

    Cordless Reciprocating Saw Operating Instructions Model No: EY3544 IMPORTANT This manual contains safety information. Read manual completely before first using this product and save this manual for future use.
  • Page 2: Work Area

    1) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. 2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liq- uids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 3 ing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. 16) Store idle tools out of reach of chil- dren and other untrained persons. Tools are dangerous in the hands of untrained users. 17) When battery pack is not in use, keep it away from other metal objects like: paper clips, coins, keys, nails, screws, or other small metal...
  • Page 4: Important Safety Instructions

    before removing the blade from the workpiece. 13) Do not touch the blade or work- piece immediately after operation; they may be extremely hot and could burn your skin. 14) Some material contains chemicals which may be toxic. Take caution to prevent working dust inhalation and skin contact.
  • Page 5 8) Do not operate charger with dam- aged cord or plug serviceman replace them immediately. 9) Do not operate charger if it has re- ceived a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman. 10) Do not disassemble charger;...
  • Page 6: Functional Description

    . FUNCTIONAL DESCRIPTION - 6 -...
  • Page 7 . ASSEMBLY WARNING: To reduce the risk of injury, always remove battery pack before chang- ing the blade. Selecting a blade The blade clamp sleeve can be used with all 1/2" shank universal reciprocat- ing saw blade. When selecting a blade, choose the right type and length.
  • Page 8: Starting And Stopping

    . OPERATION Hold tool by the insulated gripping surfaces when performing an oper- ation where the cutting tool may contact hidden wiring. Always wear safety goggles or glasses with side shields. Adjusting shoe When the blade loses its cutting effi- ciency in one place along its cutting edge, reposition the shoe to utilize a sharp, unused portion of its cutting...
  • Page 9 cutting metal. • Always use a suitable coolant (cut- ting oil) when cutting metal. Fail- ure to do so will cause premature blade wear. • If the tool is operated continuously until the battery pack has dis- charged, allow the tool to rest for 15 minutes before proceeding with a fresh battery pack.
  • Page 10: Battery Recycling

    quickly in green color. 5. When in any of the conditions that bat- tery pack is too cool, or the battery pack has not been used for a long time, the charging lamp is lit. In this case, charging takes longer to fully charge the battery pack, than the standard charging time.
  • Page 11: Specifications

    Please call 1-800-8-BATTERY for information on how to recycle this battery. . ACCESSORIES CAUTION: To prevent the risk of injury, only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local service center.
  • Page 12 30-DAY QUALITY SATISFACTION GUARANTEE: If you are dissatisfied with any Panasonic Cordless Power Tool for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 201-392-6655.
