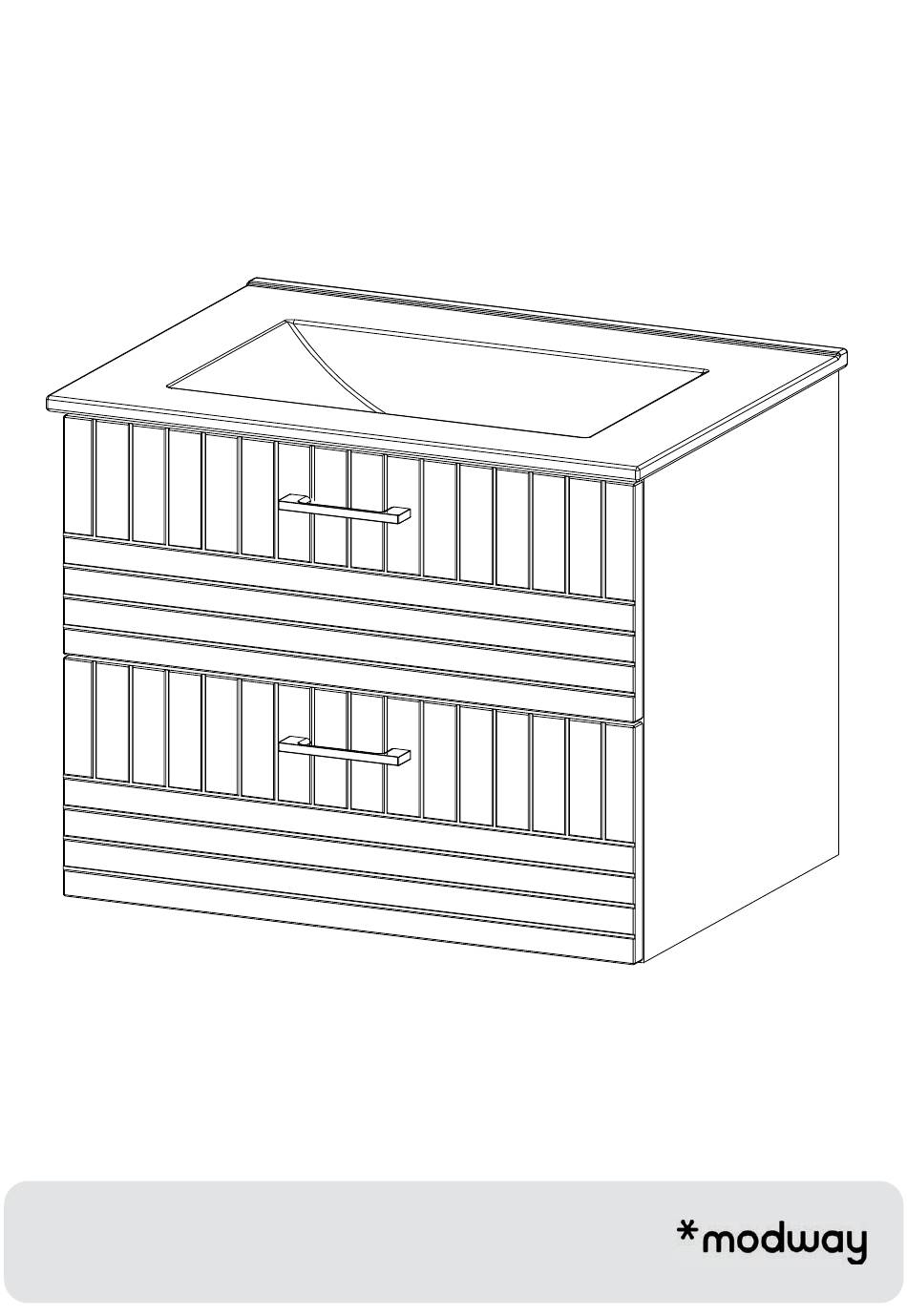

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5107 V0.06.08.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
+ Power Drill Missing parts or hardware? Need assistance? + Level Contact us before returning your item. We're here to help! + Silicone Adhesive or Caulk + Drywall Anchors and Screws 609.256.9000 • cs@modway.com + Other Wall-Mounting Hardware PAGE 2 OF 18... - Page 3 Cam Bolt Ø6 x 35 mm Front Drawer Upper Front Drawer Lower Wood Dowel Ø6 x 30 mm Side Drawer Left A Upper Side Drawer Right A Upper Side Drawer Left B Upper Side Drawer Right B Upper Side Drawer Left Lower Side Drawer Right Lower PAGE 3 OF 18...
- Page 4 Screw M 8 x 39 mm Side Drawer Left B Upper Side Drawer Right B Upper Back Drawer Small Wood Dowel Ø6 x 30 mm Support Drawer A Upper Support Drawer B Upper PAGE 4 OF 18...
- Page 5 Screw M 8 x 39 mm Side Drawer Left B Upper Side Drawer Right B Upper Back Drawer Small Support Drawer A Upper Support Drawer B Upper Bottom Drawer Upper PAGE 5 OF 18...
- Page 6 Cam Lock Ø12 mm Front Drawer Upper Side Drawer Left A Upper Side Drawer Right A Upper Screw M 8 x 39 mm Handle Screw M 4 x 25 mm PAGE 6 OF 18...
- Page 7 Rail Screw M 3.5 x 13 mm Screw M 3.5 x 15.5 mm Wedge Cam Lock Ø12 mm Front Drawer Lower Side Drawer Left Lower Bottom Drawer Lower PAGE 7 OF 18...
- Page 8 Cam Lock Ø12 mm Screw M 8 x 39 mm Side Drawer Right Lower Back Drawer Big Rail Screw M 3.5 x 13 mm Handle Screw M 4 x 25 mm Screw M 3.5 x 15.5 mm Wedge PAGE 8 OF 18...
- Page 9 Wood Dowel Ø8 x 30 mm Bottom Board Back Board Lower Screw M 7 x 50 mm Allen Key Bottom Board Back Board Lower PAGE 9 OF 18...
- Page 10 Wood Dowel Ø8 x 30 mm Screw M 4.5 x 12.5 mm Front Skirt Back Board Upper Cam Bolt Ø6 x 35 mm Screw M 4.5 x 12.5 mm Rail Screw M 6 x 10.5 mm Hanger Side Board Left Side Board Right PAGE 10 OF 18...
- Page 11 Cam Lock Ø15 mm Bottom Board Front Skirt Back Board Upper Back Board Lower Cam Lock Ø15 mm Side Board Left PAGE 11 OF 18...
- Page 12 Corner Bracket Short Bracket Allen Key Screw M 6 x 15 mm Hat Nut PAGE 12 OF 18...
- Page 13 Determine your desired height (Y), then subtract by 86 mm. This is the drill holes height from the oor (Z). ( Y ) Exclude height of basin ( Z ) Please use minimum 2 holes on group 1 and group 3, and minimum 1 hole on group 2, to apply the wall plug and screw.
- Page 14 Use Waterpass to ensure the drill position Screw M 5.5 x 45 mm Wall Plug Long Bracket PAGE 14 OF 18...
- Page 15 Screw M 5.5 x 45 mm Wall Plug PAGE 15 OF 18...
- Page 16 Foam Pad 25 x 15 x 2 mm Apply a thin bead of silicone compound around the vanity base and set the vanity top carefully in place. Remove any excess silicone compound with a wet rag. Temporarily remove/dismantle all Drawers during Basin/Sink /Plumbing work installation work to prevent water damage.
- Page 17 Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 17 OF 18...
-
Page 18: Connect With Us
Indoor use only. Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 18 OF 18...
