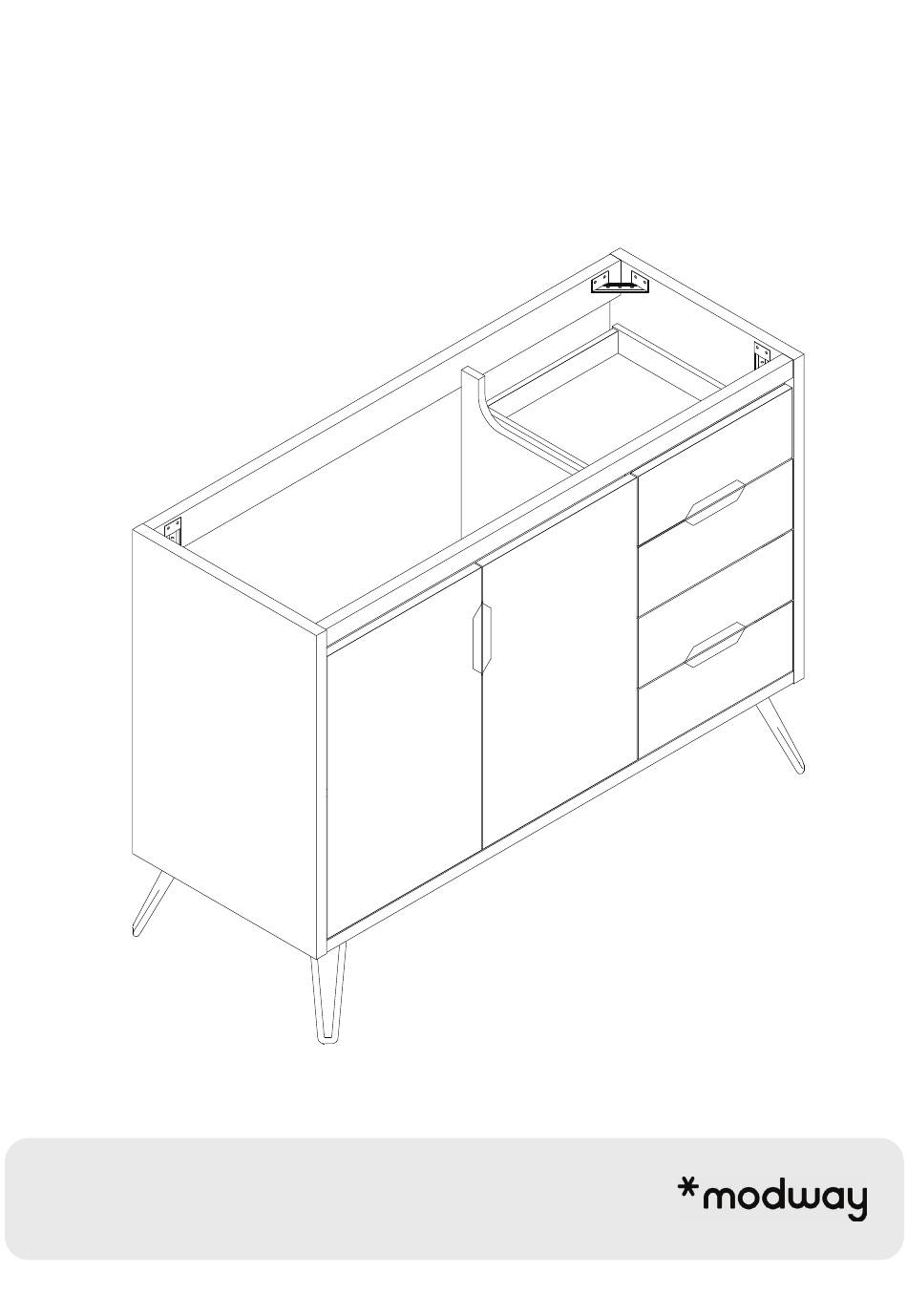

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5551 V1.05.20.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com PAGE 1 OF 13 780−166MD1−0...
-
Page 2: What You Need
(Half Overlay) + Silicone Adhesive or Caulk + Drywall Anchors and Screws Missing parts or hardware? Need assistance? + Other Wall-Mounting Hardware Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 13 780−166MD2−0... - Page 3 Wood Dowel M8 x 25mm Wood Dowel M6 x 25mm Front Support 13x3 Back Panel 1 Drawer Side L 1 14x3 Support Panel 2 Bottom Cam Bolt Ø6 x 24mm Front Front Right Side Panel Bottom Drawer Front 2 Center Panel 12x2 Drawer Front 3 PAGE 3 OF 13...
- Page 4 FRONT Bearing Runner 350mm x4pairs Screw 4 x 12mm Spring clip Center Panel Cam Lock Ø12 Drawer Front 1 (X2) Drawer Side L 1 Drawer Side R 1 Drawer Front 3 Drawer Side L 2 Drawer Side R 2 Drawer Panel (X2) PAGE 4 OF 13 780−166MD4−0...
- Page 5 Screw 9 x 38mm Drawer Back 2 (X2) FRONT Bearing Runner 350mm x4 Pairs Screw 4 x 12mm Drawer Side L 1 Drawer Side L 2 Drawer Side R 2 (X2) (X2) Screw 9 x 38mm Support Panel 2 PAGE 5 OF 13 780−166MD5−0...
- Page 6 Cam Lock Ø15 Screw 9 x 50mm Back Panel 1 Screw 9 x 50mm PAGE 6 OF 13 780−166MD6−0...
- Page 7 Cam Lock Ø15 17mm Cam Lock Ø15 Screw 4 x 20mm Metal Leg Metal Leg PAGE 7 OF 13 780−166MD7−0...
- Page 8 Screw 4 x 14mm Shelf Support L-Bracket L-Bracket Screw #9 x 38mm Shelf Panel PAGE 8 OF 13 780−166MD8−0...
- Page 9 Screw 4 x 14mm Corner Bracket NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø PAGE 9 OF 13 780−166MD9−0...
-
Page 10: Sold Separately
Screw 4 x 14mm Door Hinge (Full Overlay) Door Hinge (Half Overlay) Sold separately Screw 4 x 14mm Rubber Pad Adjust the hinges, if required. Adjust laterally Adjust height Adjust depth Temporarily remove/dismantle the Door & Shelf during Basin/Sink /Plumbing work installation work to prevent water damage. - Page 11 The drawer(s) can be removed, if ever required. Locate the spring clip on both sides on the drawer glide. At the same time, press the clips and pull the drawer out. To reinsert, simply align the 2 sides of the drawer glides and slide in until fully inserted.
- Page 12 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 12 OF 13 780−166MDC−0...
- Page 13 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 13 OF 13 780−166MDD−0...
