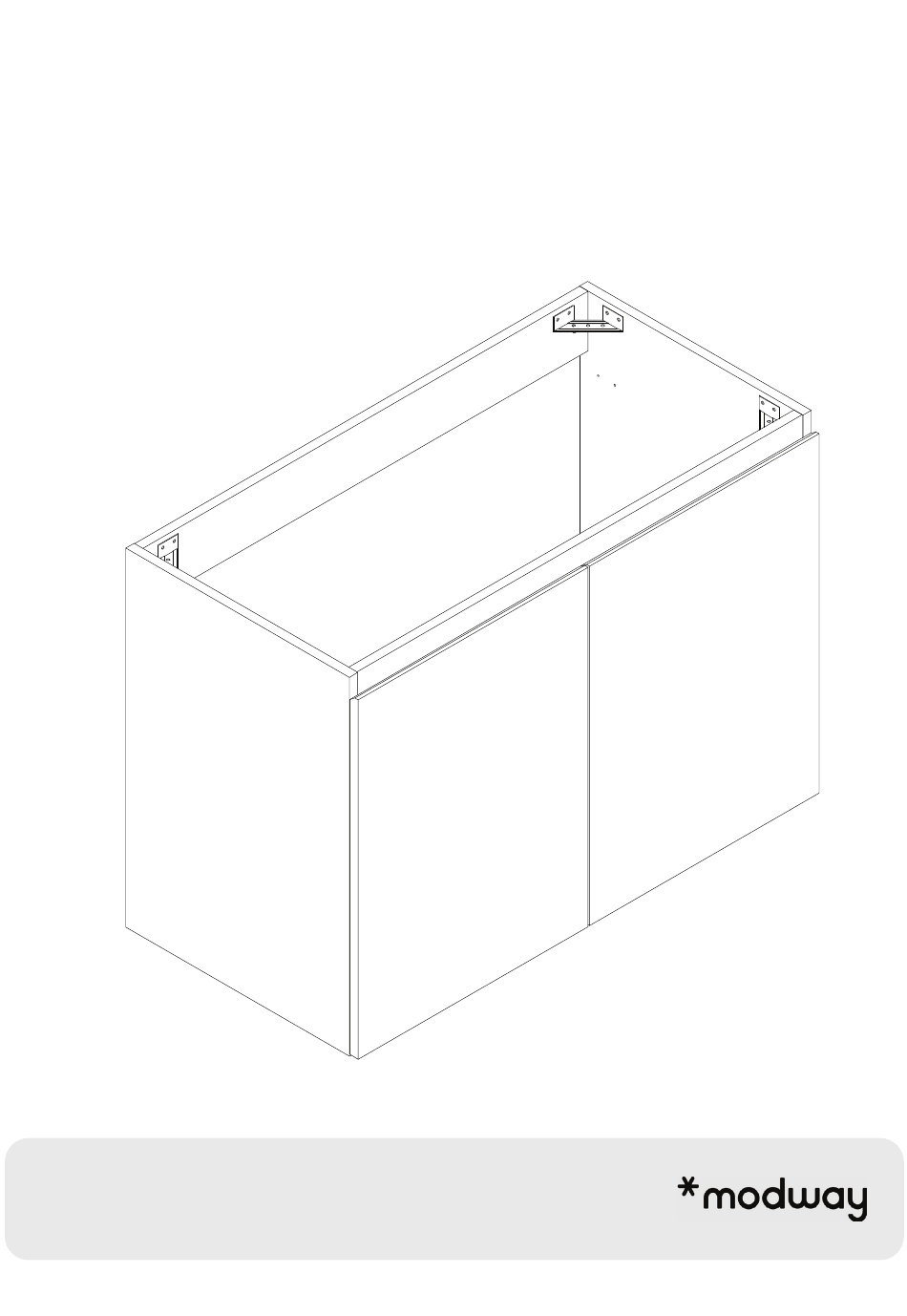

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5559 V1.05.20.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com PAGE 1 OF 11 780−171MD1−0...
-
Page 2: What You Need
+ Other Wall-Mounting Hardware Bracket/R-Hanger Shelf Support Screw 4 x 28mm Rubber Pad Screw 4 x 14mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 11 780−171MD2−0... - Page 3 Wood Dowel M8 x 25mm Back Panel 1 Front Support Cam Bolt Ø6 x 24mm Left Side Panel Right Side Panel Screw #9 x 38mm Bottom Panel Back Panel 2 PAGE 3 OF 11 780−171MD3−0...
- Page 4 Cam Lock Ø15 Left Side Panel Bottom Panel Back Panel 1 Back Panel 2 Front Support Cam Lock Ø15 Right Side Panel Bottom Panel Back Panel 1 Back Panel 2 Front Support PAGE 4 OF 11 780−171MD4−0...
- Page 5 Shelf Support Left Side Panel Right Side Panel Screw #9 x 38mm Shelf Panel Base Panel Shelf Panel PAGE 5 OF 11 780−171MD5−0...
- Page 6 Screw 4 x 14mm Corner Bracket Left Side Panel Right Side Panel Back Panel 1 Front Support Bracket/L-Hanger Bracket/R-Hanger Screw 4 x 28mm Left Side Panel Right Side Panel PAGE 6 OF 11 780−171MD6−0...
- Page 7 Wall Bracket Installation Guide WALL WALL 11.1 Use a drill to make all pilot holes. 11.2 Insert a Drywall Anchor Measurement Guide into each of the nine holes. All units are in millimeters. WALL BRACKETS WALL 11.3 Install bracket with 3 screws. 11.4 Ensure your bracket measurements are correct Repeat with other brackets.
- Page 8 NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø PAGE 8 OF 11 780−171MD8−0...
- Page 9 Screw 4 x 14mm Door Hinge Sold separetly Screw 4 x 14mm Rubber Pad Adjust the hinges, if required. Adjust laterally Adjust height Adjust depth PAGE 9 OF 11 780−171MD9−0...
- Page 10 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 10 OF 11 780−171MDA−0...
- Page 11 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 11 OF 11 780−171MDB−0...
