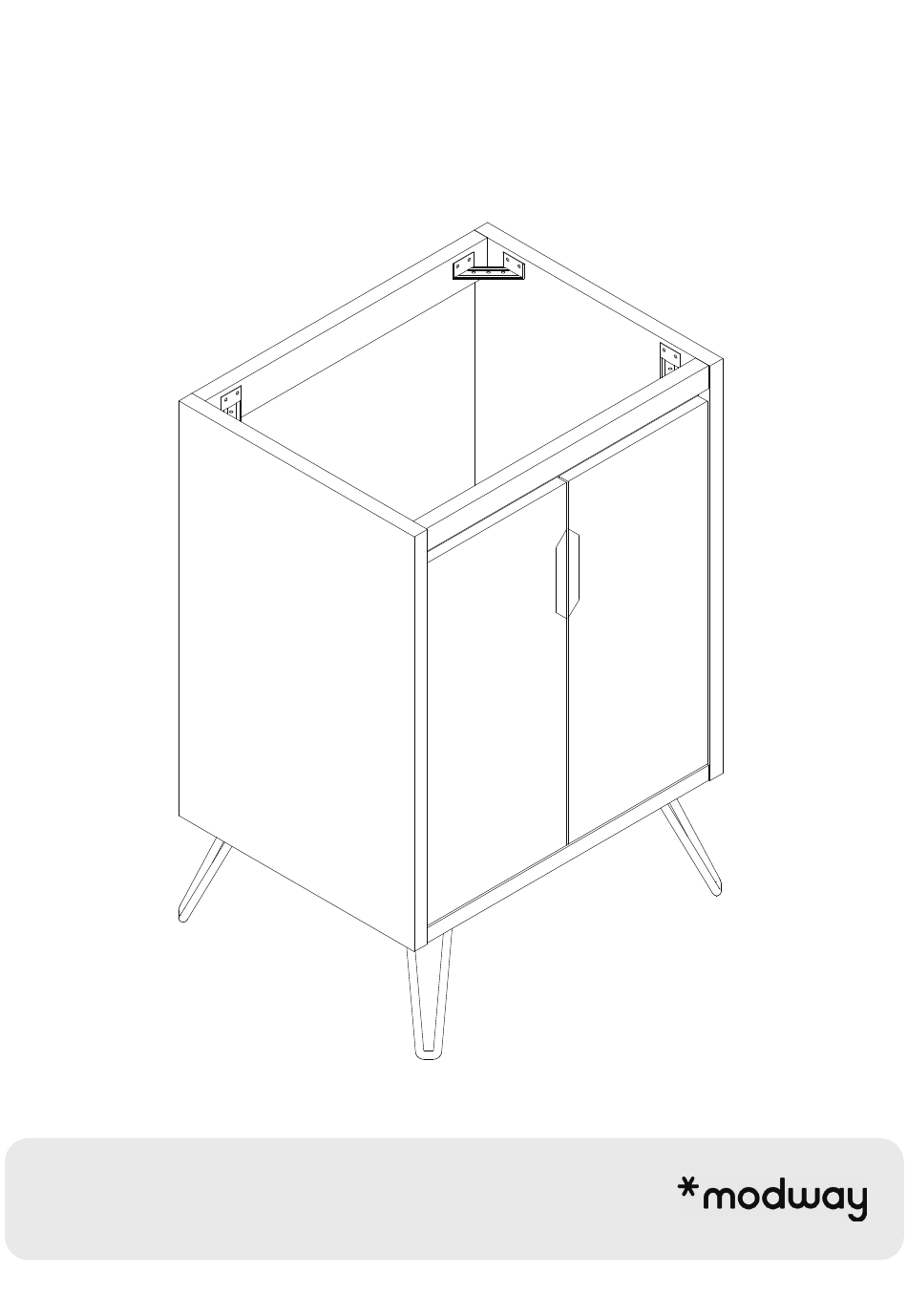

- Page 1 A S S E M B LY I N S T R U C T I O N S EEI−5548 V1.05.20.21 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com PAGE 1 OF 9 780−163MD1−0...
-
Page 2: What You Need
+ Other Wall-Mounting Hardware Screw 4 x 14mm Rubber Pad L-Bracket Door Hinge Corner Bracket Screw 9 x 38mm Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 2 OF 9 780−163MD2−0... - Page 3 Wood Dowel M8 x 25mm Front Support Support Panel Back Panel 1 Back Panel 2 Bottom Cam Bolt Ø6 x 24mm Front Right Side Panel Front Bottom Cam Lock Ø15 Bottom Panel PAGE 3 OF 9 780−163MD3−0...
- Page 4 Cam Lock Ø15 Bottom Panel Screw 4 x 20mm Metal Leg PAGE 4 OF 9 780−163MD4−0...
- Page 5 Screw 4 x 14mm Shelf Support L-Bracket Screw 9 x 38mm PAGE 5 OF 9 780−163MD5−0...
- Page 6 Screw 4 x 14mm Corner Bracket Left Side Panel Right Side Panel Front Support Back Panel 1 NOTE: Mounting hardware and tools are not included. We suggest professional installation. Hole = Ø6mm PAGE 6 OF 9 780−163MD6−0...
-
Page 7: Sold Separately
Screw 4 x 14mm Door Hinge Door Panel Right Sold separately Screw 4 x 14mm Rubber Pad Adjust the hinges, if required. Adjust laterally Adjust height Adjust depth Temporarily remove/dismantle the Door & Shelf during Basin/Sink /Plumbing work installation work to prevent water damage. PAGE 7 OF 9 780−163MD7−0... - Page 8 Your sink basin comes complete with a silver overfl ow ring. If you'd like to remove this overfl ow ring, you can do so by hand. Missing parts or hardware? Need assistance? Contact us before returning your item. We're here to help! 609.256.9000 • cs@modway.com PAGE 8 OF 9 780−163MD8−0...
- Page 9 Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, as they could damage the fi nish or integrity of the item. CONNECT WITH US! Tag us @modway_furniture and #modway for a chance to be featured. PAGE 9 OF 9 780−163MD9−0...
