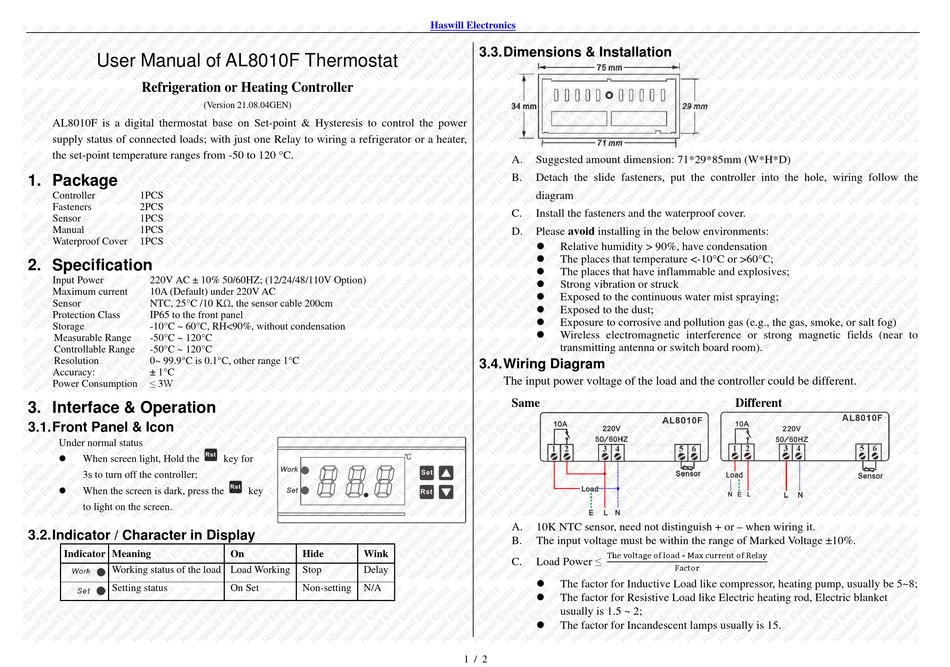

User Manual of AL8010F Thermostat
Refrigeration or Heating Controller
(Version 21.08.04GEN)

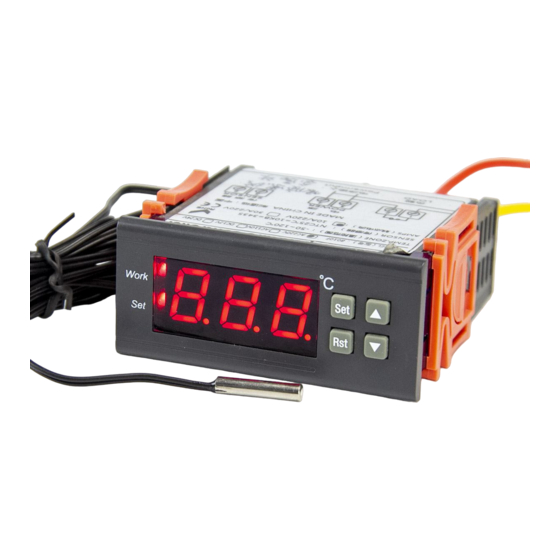

AL8010F is a digital thermostat base on Set-point & Hysteresis to control the power
supply status of connected loads; with just one Relay to wiring a refrigerator or a heater,
the set-point temperature ranges from -50 to 120 °C.
1. Package
Controller 1PCS
Fasteners 2PCS
Sensor 1PCS
Manual 1PCS
Waterproof Cover 1PCS
2. Specification
Input Power 220V AC ± 10% 50/60HZ; (12/24/48/110V Option)
Maximum current 10A (Default) under 220V AC
Sensor NTC, 25°C /10 KΩ, the sensor cable 200cm
Protection Class IP65 to the front panel
Storage -10°C ~ 60°C, RH<90%, without condensation
Measurable Range -50°C ~ 120°C
Controllable Range -50°C ~ 120°C
Resolution 0~ 99.9°C is 0.1°C, other range 1°C
Accuracy: ± 1°C
≤ 3W
Power Consumption
3. Interface & Operation
3.1. Front Panel & Icon
Under normal status

When screen light, Hold the
3s to turn off the controller;

When the screen is dark, press the
to light on the screen.
3.2. Indicator / Character in Display
Indicator Meaning
Working status of the load Load Working
Setting status
key for
key
On Hide Wink
Stop Delay
On Set Non-setting N/A
Haswill Electronics
3.3. Dimensions & Installation
A. Suggested amount dimension: 71*29*85mm (W*H*D)
B. Detach the slide fasteners, put the controller into the hole, wiring follow the
diagram
C. Install the fasteners and the waterproof cover.
D. Please avoid installing in the below environments:

Relative humidity > 90%, have condensation

The places that temperature <-10°C or >60°C;

The places that have inflammable and explosives;

Strong vibration or struck

Exposed to the continuous water mist spraying;

Exposed to the dust;

Exposure to corrosive and pollution gas (e.g., the gas, smoke, or salt fog)

Wireless electromagnetic interference or strong magnetic fields (near to
transmitting antenna or switch board room).
3.4. Wiring Diagram
The input power voltage of the load and the controller could be different.
Same
A. 10K NTC sensor, need not distinguish + or – when wiring it.
The voltage of load ∗ Max current of Relay
B. The input voltage must be within the range of Marked Voltage ±10%.
Load Power ≤
C.

The factor for Inductive Load like compressor, heating pump, usually be 5~8;

The factor for Resistive Load like Electric heating rod, Electric blanket
usually is 1.5 ~ 2;

The factor for Incandescent lamps usually is 15.
1 / 2
Different
Factor
