STC-8080A+ Thermostat
Quick Start Guide
(Version 21.08.02GEN)

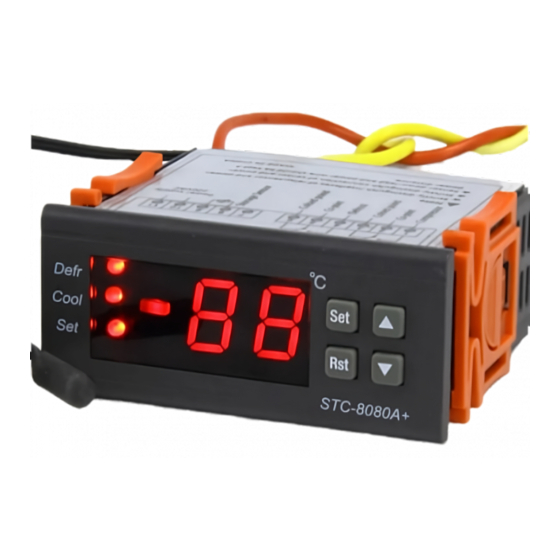

STC-8080A defrosting thermostat with one sensor and
two output relays to connect and control the
refrigeration and the defrosting unit, alarm once
temperature overs your preset point.

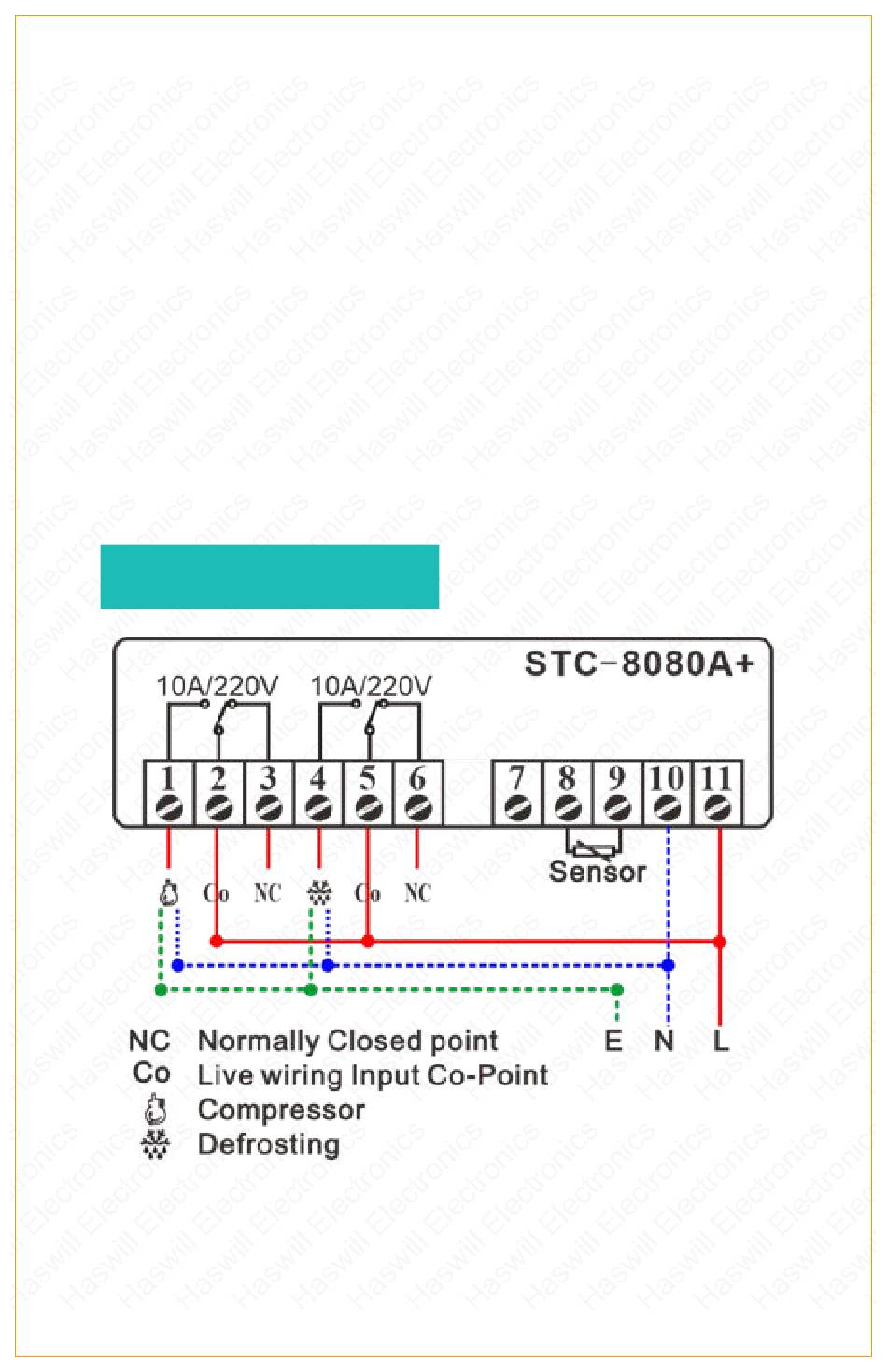

1. Wiring Diagram
https://www.thermo-hygro.com
This unit does not output AC electricity; hence you have
to wire all live and null wires to each port; you may use
the jumper wire conveniently.
1 / 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haswill STC-8080A+
Summary of Contents for Haswill STC-8080A+
- Page 1 STC-8080A+ Thermostat Quick Start Guide (Version 21.08.02GEN) STC-8080A defrosting thermostat with one sensor and two output relays to connect and control the refrigeration and the defrosting unit, alarm once temperature overs your preset point. 1. Wiring Diagram https://www.thermo-hygro.com This unit does not output AC electricity; hence you have to wire all live and null wires to each port;...
- Page 2 2. Function Menu Function Temperature for Refrigeration Starts Temperature for Refrigeration Stops Calibration = Real – Measured Defrosting Cycle / Interval Time Defrosting Lasting Time Over-temperature to Trigger Alarm (more than 3. Configuration https://www.thermo-hygro.com The aimed temperature range was defined from “F1” to f2”;...
- Page 3 Repeat operation from Step 2 / 3 / 4 to adjust other parameters; After configuring all values, press the Step5 to save data and back to normal monitor status. Attention: the modified value will be saved automatically and back to normal status if without operation in 30 seconds.
- Page 4 This is not a step-by-step user manual; It just shows the key points. The new user should read the Full-Content Version User Manual Haswill Electronics STC-8080A+ Thermostat https://www.thermo-hygro.com Copyright Haswill-Haswell All Rights Reserved 4 / 4...
