Haswill AL8010F User Manual

User's Manual of AL8010F
Heating or Cooling Controller (TC1-1412-1006)
1. Features

Within adjustable Aim Temperature Value, Temp. Difference Value, Compressor Delay
Time and calibration value; Higher and Lower temperature limit exceed which range will
trigger alarms.

It will change the room temperature by turn on / off the load automatically.

Auto memory exist data if electric off, need not to configure it again once power back.

With 0.1°C precision and ±1.0°C accuracy;

The voltage of input electric for the load need not to same as the voltage of this controller
and it is also working if they are same.

The output relay for load max bear 30A current under 220V, allow 6600W load.
2. Application
Suit to place where need constant temperature, like beer fermentation chamber / pool, brewing
hardware, boiler, fridge, freezer, Incubators, Aquariums, Hatchers, terrariums etc.
3. Package
Controller 1PCS
Fasteners 2PCS
Sensor 1PCS
Manual 1PCS
Waterproof Cover 1PCS
4. Specification
Input Power 220V AC ± 10% 50/60HZ; (12V/24/110V Option)
Maximum current 10A (Default) under 220V AC
NTC, 25°C /10 KΩ, sensor cable 200cm
Sensor
Protection Class IP65 to front panel
Storage -10°C ~ 60°C, RH<90%, without condensation
Meas. & Control: -50°C ~ +120°C
Precision: 0.1°C
Accuracy: ± 1°C
≤ 3W
Rated Power:
5. Environmental Information
Package: The packages material is 100% recyclable; Just dispose it through
specialized recyclers.
Product: The electro components can be recycled or reused if it is disassembled
for specialized companies.
Disposal: Please do not burn or throw the controllers in domestic garbage, observe
the respectively law in your region concerning the environmental
responsible manner of dispose its devices.
www.thermo-hygro.com

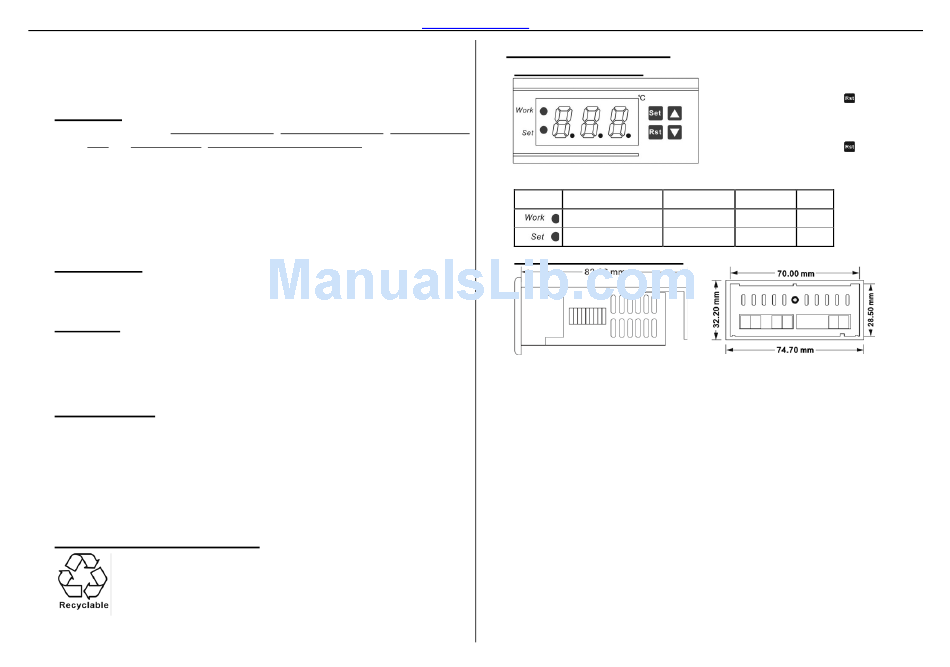

6. Interface & Operation
6.1. Front Panel & Icon
Indicator / Character in Display
Indicator Meaning
Working status of load Load Working
Setting status
6.2. Dimensions & Installation
A. Suggested amount dimension: 71.0*29.0*85.0mm (W*H*D)
B. Detach the slide fasteners, put the controller into the hole, wiring follow diagram;
C. Install the fasteners, and the waterproof cover.
D. Please avoid installing in the below environments:

Relative humidity > 90%, have condensation

The places that temperature <-10°C or >60°C;

The places that have inflammables and explosives;

Strong vibration or struck

Exposed to the continuous water mist spraying;

Exposed to the dust;

Exposure to corrosive and pollution gas (for example: The gas, smoke or salt
fog that contain sulfur or ammonia;

Wireless electromagnetic interference or strong magnetic fields (near to
transmitting antenna or switch board room);
1 / 2
Under normal status

When screen light, Press
3s to turn off the display, attention it is turn
off controller not just dim the screen;

When screen dark, Press
light on the screen.
On Hide Wink
Stop Delay
On Set Non-setting N/A
and hold on
and release, to
