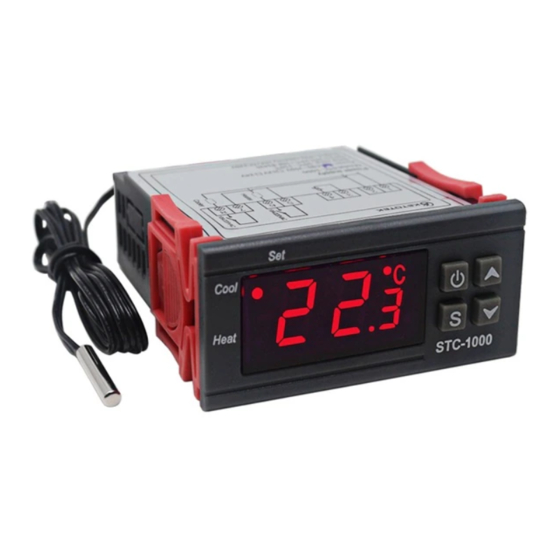

User Manual of STC-1000 Thermostat
Heating and Refrigeration Auto Switch Controller
STC-1000 temperature controller regulates the temperature by turn on/off the power status
of the connected load.
Within dual individually relays, this unit could connect two loads simultaneously, one for
refrigeration, another for heating, and the heating and the refrigeration controlling modes
auto switch according to the room sensor temperature; that's why it was called "All-Purpose
Temperature Controller."
Package
1.
Controller
1 PCS
Clips
2 PCS
Sensor
1 PCS
Manual
1 PCS
Waterproof Cover
1 PCS
Specification
2.
Input Power
220V AC ± 10% 50/60HZ; (12/24/48/110V Option)
Maximum current
10A (Default) under 220V AC
Sensor
NTC Sensor (NTC), 25°C /10 KΩ, the sensor cable 200cm
Protection Class
IP65 to the front panel
Storage
-10°C ~ 60°C, RH<90%, without condensation
Measuring Range:
-50.0°C ~ 120°C
Controlling Range:
-50.0°C ~ 99.9°C
Resolution
0.1°C
Accuracy
± 1°C
Power Consumption
≤ 3W
Environmental Information
3.
Package: The package's material is 100% recyclable. Just dispose of it through
specialized recyclers.
Product: The electro components can be recycled or reused if it is disassembled
for specialized companies.
Disposal: Please do not burn or throw the controllers in domestic garbage.
Observe the respective law in your region concerning the
environmentally responsible manner of disposing of its devices.
(Version 22.04.05GEN)
Haswill Electronics
Interface & Operation
4.
4.1. Front Panel & Icon
Under normal status
⚫ Press the
key to check the temperature set-point F1;
⚫ Press the
key to check the Hysteresis value F2;
⚫ Hold the
key for 3s to power off / on;
⚫ Hold the
key and the
4.2. Indicators / Characters
Indicator Meaning
Cool
Refrigerating
Heat
Heater status
Set
Setting status
4.3. Dimensions & Installation
Suggested amount dimension: 71 * 29 * 85 + mm (W*H*D)
A.
Detach the slide fasteners, put the controller into the hole, wiring follow the diagram
B.
Install the fasteners, and install the waterproof cover
C.
Please avoid installing in the below environments:
D.
Relative humidity > 90%, have condensation.
⚫
The places that temperature <-10°C or >60°C.
⚫
The places that have inflammable and explosives.
⚫
Strong vibration or struck.
⚫
Exposed to the continuous water mist spraying.
⚫
Exposed to the dust.
⚫
Exposure to corrosive and pollution gas (gas, smoke, or salt fog that contains
⚫
sulfur or ammonia.
Wireless electromagnetic interference or strong magnetic fields (near to
⚫
transmitting antenna or switch board room);
1 / 2
key at the same time for 5s to restore factory settings
Light on
Light off
Light Flashing
Working
Stop
Delay
Working
Stop
N/A
On Set
Non-setting
N/A
