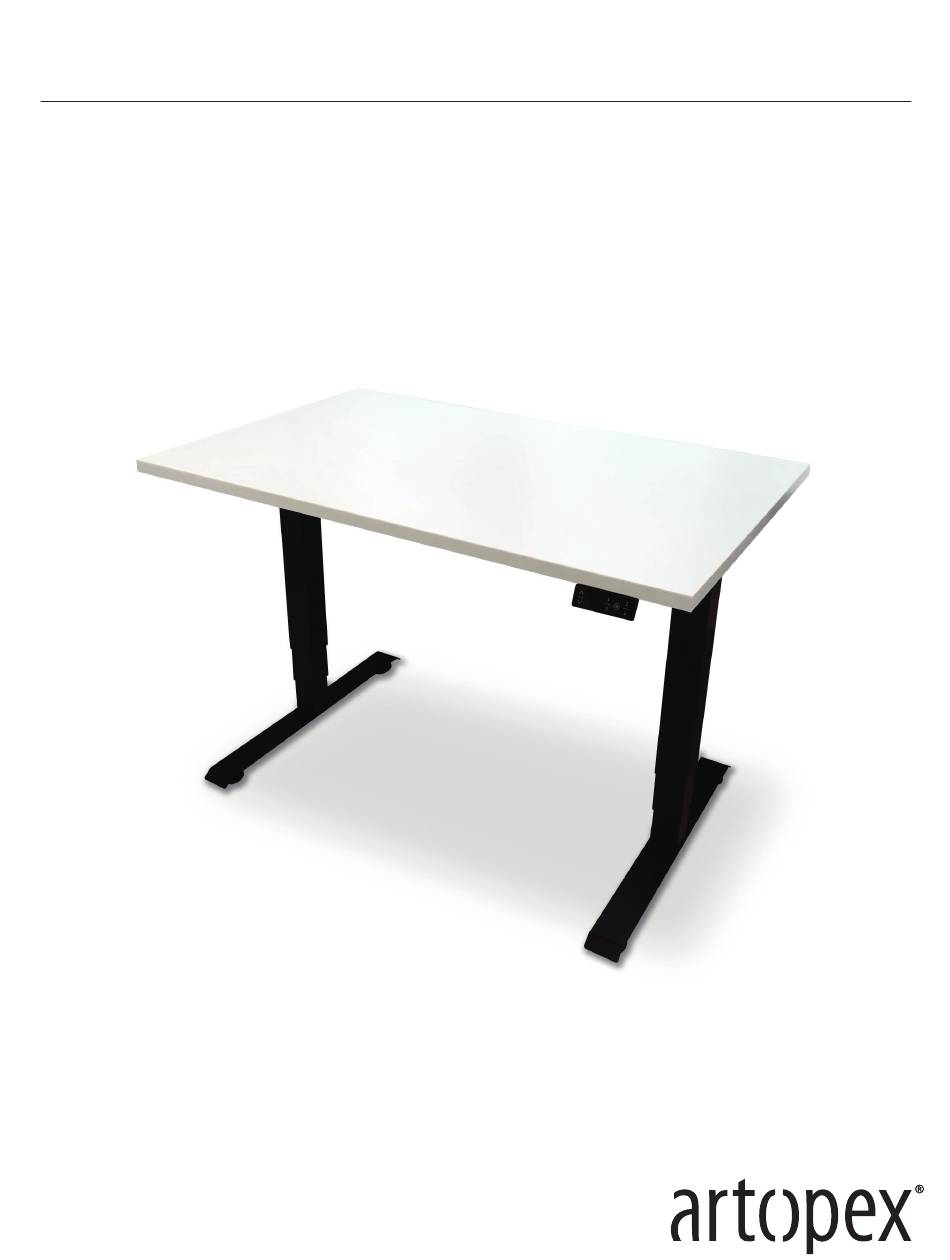

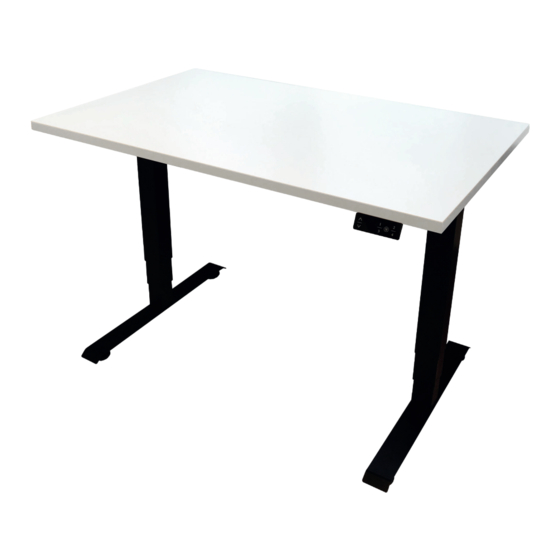

- Page 1 User Guide Two-Leg Adjustable Table 03-23...
-
Page 2: Table Of Contents
Setting buttons & menu overview Units Screen brightness Sound ( «beep» ) Obstacle sensivity sensor Vibration sensitivity sensor Customized height display / Minimum & maximum height range Button push modes Timer Bounce travel Factory settings Demo mode About the Warranty 1 800 378-0189 sac@artopex.com... -
Page 3: Components Diagram
1.Power input 110-240VAC 2.Power output 24VDC 3.Load capacity 1400N 4.Speed 30 mm/s 5.Stroke 650 mm 6.Min install dimension 590 mm 7.Operation temperature 0-40 degrees celcius 8.Duty cycle Max.10% (or 2 minutes ON / 18 minutes OFF) 1 800 378-0189 sac@artopex.com... -
Page 4: Reset
Lock: Press simultaneously the UP and DOWN buttons for 5 seconds; keypad will lock and Loc will be displayed (flashing). Unlock: Keep pressing simultaneously the UP and DOWN buttons for 5 seconds, to unlock the keypad. Keypad will display current height 1 800 378-0189 sac@artopex.com... -
Page 5: Error Codes / Troubleshooting
Control Box or the Keypad is defective, please contact our customer service department. Also check if the problem is due to a damaged Patch Cord by plugging both lifting column cables directly into the Control Box. 1 800 378-0189 sac@artopex.com... -
Page 6: Settings
Activate keypad by pressing any button. Press «M» button for 3 seconds, screen will display S--, then release the «M» button and press the «up» arrow until code 3be appears. Press «M» button to enter. Using the UP/DOWN buttons, toggle between OFF/On and press the «M» button to confirm selection. 1 800 378-0189 sac@artopex.com... -
Page 7: Obstacle Sensivity Sensor
«M» button and press the «up» arrow until code 6FS appears. Press «M» button to enter. Default setting is L5, which represents mid-level sensitivity. Use the UP/DOWN buttons to toggle between levels L1 (most sensitive) to L9 (least sensitive) and press the «M» button to confirm selection. 1 800 378-0189 sac@artopex.com... -
Page 8: Customized Height Display / Minimum & Maximum Height Range
«M» button and press the «up» arrow until code 8Hc appears. Press «M» button to enter; screen will display 001. Use the UP/DOWN buttons to select mode and press the «M» button to confirm selection. 1 800 378-0189 sac@artopex.com... -
Page 9: Factory Settings
«M» button and press the «up» arrow until code 11r appears. Press «M» button to enter, screen will display Frt (flashing). Press «M» button to confirm & exit. Screen will display rES, execute the Reset Procedure (page 3) to finilize Factory Settings Restoration. 1 800 378-0189 sac@artopex.com... -
Page 10: Demo Mode
1.This product must be used under the correct technical parameters. 2.Keep away from liquids, corrosives, gases and dusty environments. 3.Do not open any of the components, doing so will void any and all service support and manufactures warranties. 1 800 378-0189 sac@artopex.com...
