Summary of Contents for Artopex conference

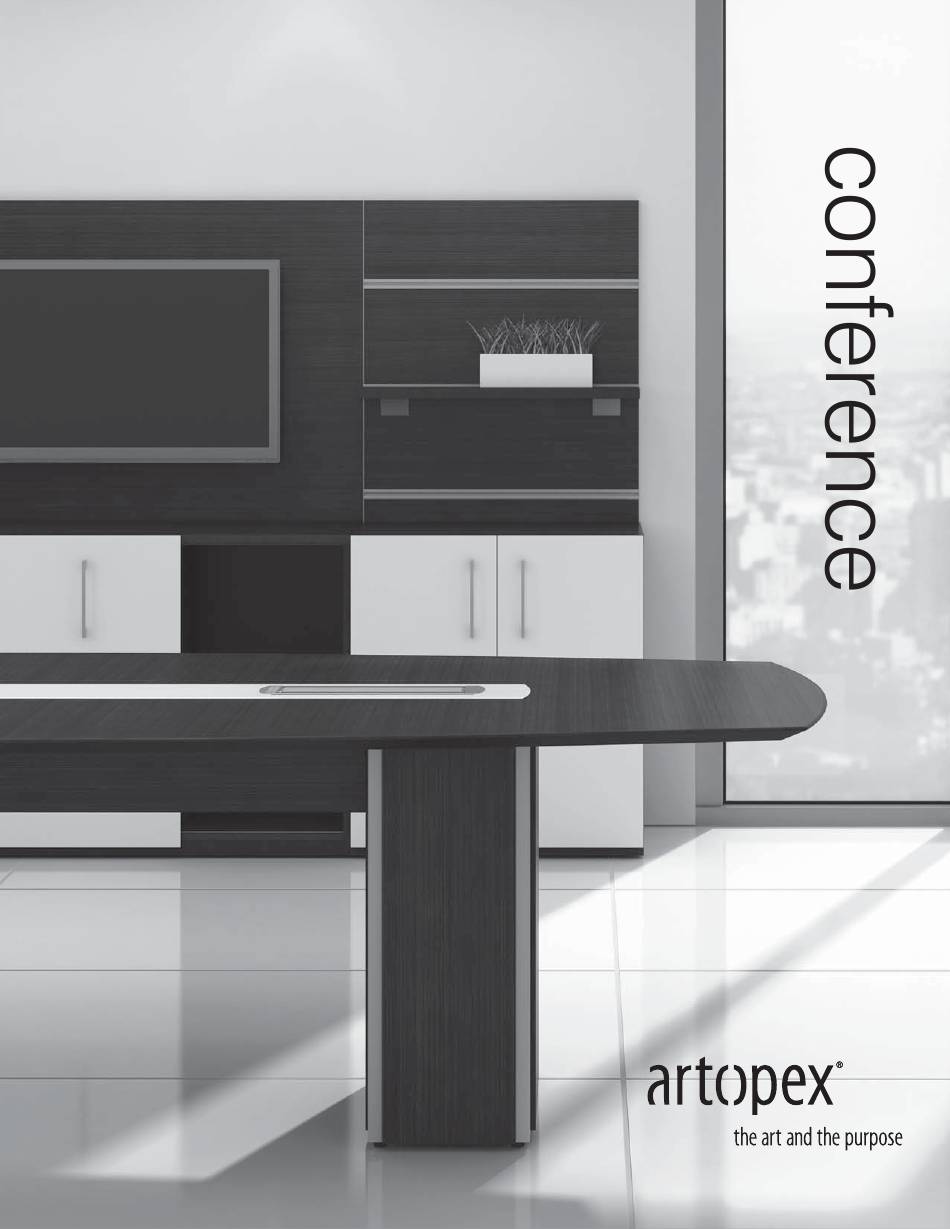

- Page 1 Installation Guide February 2013...
- Page 2 Positioning a conference surface on wood bases Positioning a meeting surface on a wood base 3-ELECTRICITY AND CABLE MANAGEMENT Conference table with Alto bases, Duo bases or X-wood bases Conference table with architectural bases Conference table with drum bases Conference table with metal bases...
- Page 3 Installation of legs on a storage unit Installation of a credenza shelf Installation of a wall mounted credenza 5-PRESENTATION BOARD Installation of a presentation board 4- WORK WALLS Installation of an upper work wall Installation of a lower work wall Conference Installation Guide - February 2013...
- Page 4 BASES Conference Installation Guide - February 2013...
- Page 5 16" 16" 10" 10" 16" 16" 10" 10" 16" 16" 10" 10" 16" 16" 10" 10" – – 10" 10" – – 10" 10" – – 10" 10" – – 10" 10" 16" 16" Conference Installation Guide - February 2013...
- Page 6 – – – – – – – – 36/42 14" 14" – – – – – – 36/42 14" 14" 16" 16" 14" 14" 16" 16" 14" 14" 16" 16" 14" 14" 16" 16" Conference Installation Guide - February 2013...
- Page 7 Install lateral panel to main panel as shown. Install levelers on both panels and junction plate. LATERAL PANEL JUNCTION PLATE Central base (X-shaped) Install upper section to lower section as shown. Install levelers on both panels. UPPER SECTION LOWER SECTION Conference Installation Guide - February 2013...
- Page 8 – – 16" – 16" – 20" Anchor the modesty panel to the base using the cleats provided. The panel with the longest notch must be positioned length-wise to allow for multi-outlet module installation. Conference Installation Guide - February 2013...
- Page 9 MEASUREMENT A (between modesty panels) SURFACES SURFACE DIMENSIONS – – – – – 10" 10" – – 10" 12" – – 12" – 12" – 18" Anchor the modesty panel to the base using the cleats provided. Conference Installation Guide - February 2013...
- Page 10 10" 12" 12" 10" 10" 12" 12" 10" 10" 12" 12" 10" 10" 12" 12" IMPORTANT! If there are two different modesty panel lenghts, the shortest panels must be installed on the triangular base. Conference Installation Guide - February 2013...
- Page 11 Position marks for drum bases LEVELER POSITION Ensure conference table stability Drum base orientation (when specified with access panel) Refer to Electricity and Wire Management on p.17 for further details. ACCESS PANEL TOWARDS CENTER OF TABLE Conference Installation Guide - February 2013...
- Page 12 Position marks for metal legs with base plate, T-base or X-base 12" LEG WITH 12" x 12" TOP PLATE 16" Position marks for tubular metal legs LEG WITH 16" x 16" TOP PLATE LEG WITH 6" x 6" TOP PLATE Conference Installation Guide - February 2013...
- Page 13 SURFACES Conference Installation Guide - February 2013...
- Page 14 Insert achoring devices as shown and tighten with a tool (such as an Allen key). ANCHORING DEVICES TOOL STIFFENER Step 2 Install stiffeners. SURFACE WITH CENTRAL ACCENT Remove central accent stifferers when installing a base with modesty panels. STIFFENER Conference Installation Guide - February 2013...
- Page 15 Positioning using 2 wood bases EQUAL DISTANCE at each ends Positioning using 3 wood bases Align the surface center with center base SURFACE WITH CENTRAL ACCENT Remove central accent stifferers when installing a base with modesty panels. STIFFENER Conference Installation Guide - February 2013...
- Page 16 Assembly of a meeting table (wood base) FE-FC Meeting table with architectural wood base Align center of surface with center of base Meeting table with X-wood base Align center of surface with center of base Conference Installation Guide - February 2013...
- Page 17 ELECTRICITY AND CABLE MANAGEMENT Conference Installation Guide - February 2013...
- Page 18 Use wire trough (AC-WR24) or fasteners to run cabling along the modesty panels Power bar (AC-PWBE) Multi-outlet module (M3) A removable panel allows access to interior cabling Cabling runs from the surface to the floor, inside the base Conference Installation Guide - February 2013...
- Page 19 Electricity & Cable Management Conference table with multi-outlet modules Examples showing cable management. FE-FC Conference table with Drum bases (with removable panel) Grommets on both sides allow for cable passage A removable panel allows for cable access inside the base...
- Page 20 Meeting table with metal base MUlti-outlet module (M2) Cabling runs from the Wire trough surface to the floor, inside (AC-WR24) the tubular structure Conference Installation Guide - February 2013...
- Page 21 A power bar allows connection cable passage when a credenza is placed of various electrical devices (AC-PWBE) in front of the panel RECOMMENDATION Use a power bar to facilitate plugging/unplugging of electrical devices. POWER BAR Conference Installation Guide - February 2013...
- Page 22 STORAGE Conference Installation Guide - February 2013...
- Page 23 Flip the unit on it’s back to access the underside. Screw-in each leg in the appropriate corner locations. Screw-in levelers on each leg. LEVELER Step 2 Flip the unit to it’s upright position. Adjust the unit’s level using the levelers. Conference Installation Guide - February 2013...
- Page 24 Open the storage doors or remove the drawer(s) to access the pre-drilled holes located under the surface. Drill two 3/8" dia. holes through the surface. Position the shelf upwards on the storage unit top. Install the shelf using the hardware provided. BOLT WITH WASHER Conference Installation Guide - February 2013...
-
Page 25: Adjustment Knob
TOP SCREW FOR FRONT-TO-BACK ADJUSTMENT Install screw caps. BOTTOM SCREW FOR HEIGHT ADJUSTMENT Step 3 Install safety screws at both ends of the credenza (inside). (no pre-drilled holes) SAFETY SCREW The safety screws ensure greater sturdiness. Conference Installation Guide - February 2013... - Page 26 PRESENTATION BOARD Conference Installation Guide - February 2013...
- Page 27 Drill tapered holes on the support cleat and screw it to the wall. A minimum of 8 holes is recommended. Tapered hole Example: Support cleat for a 60" wide board. Step 3 Hang the presentation board to the support cleat. Conference Installation Guide - February 2013...
- Page 28 WORK WALLS Conference Installation Guide - February 2013...
- Page 29 BOTTOM SCREW FOR HEIGHT ADJUSTMENT Step 3 Hang the panel to the support cleat. Verifiy that the panel is level and at desired height. If not, remove the panel and redo adjustments from Step 2. Conference Installation Guide - February 2013...
- Page 30 Adjust the panel so it is vertically level and tighten bolts. Note: FRONT-TO-BACK If the installation requires a lower panel, install ADJUSTMENT the link brackets to the upper panel before hanging it to the wall. See the detailed instructions on the following page. Conference Installation Guide - February 2013...
- Page 31 HOOK BRACKETS LEVELER The lower panel must be pressed against the bottom of the upper panel. Note: The lower work wall panel must be installed under an upper panel of the same width. Conference Installation Guide - February 2013...
