Aiphone AX-DV(F)-P User Manual

The AX-DV-P and AX-DVF-P are AX-series color video door stations with an HID ProxPoint Plus
Card Reader built into the same housing. The card reader provides electronic access to a
building through a separate Access Control System, which is not supplied by Aiphone.
AX-DVF-P
11-⅝"
5-¾"
MOUNTING & INSTALLATION:
1-25/32"
AX-DVF-P: Provide a wall surface opening for rough-
in backbox (supplied), using dimensions shown.
Note: If surface mount is required, use the Aiphone
SBX-DVF-P (sold separately).
AX-DV(F)-P
Vandal Resistant Color Video Door Station
With Built in Proximity Card Reader
- INSTRUCTIONS-

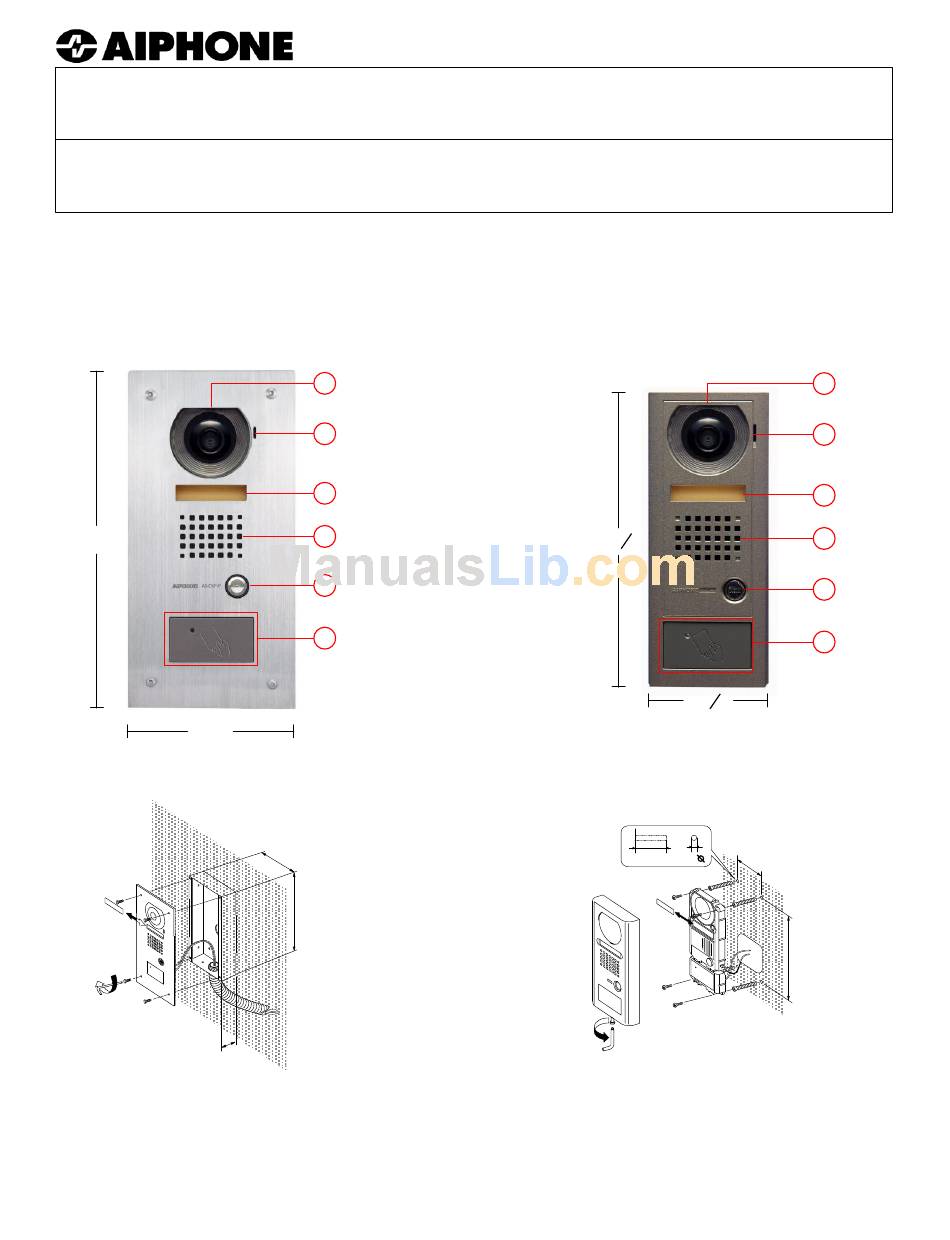

NAMES & FUNCTIONS:
1
1. Camera
2
2. Microphone
3. Name placard
3
4. Speaker
4
5. Call button
5
6. HID ProxPoint Plus
Reader (6005B)
6
4-1/2"
8-7/16"
AX-DV-P
"
9- 11
16
"
3- 15
16
1-3/8" 1/4"
3"
AX-DV-P: Provide mounting box or wall
opening sufficient for both the CAT-5e cable
(from the AX CEU) and the HID card reader
wire pigtail.
1
2
3
4
5
6
8-3/4"
