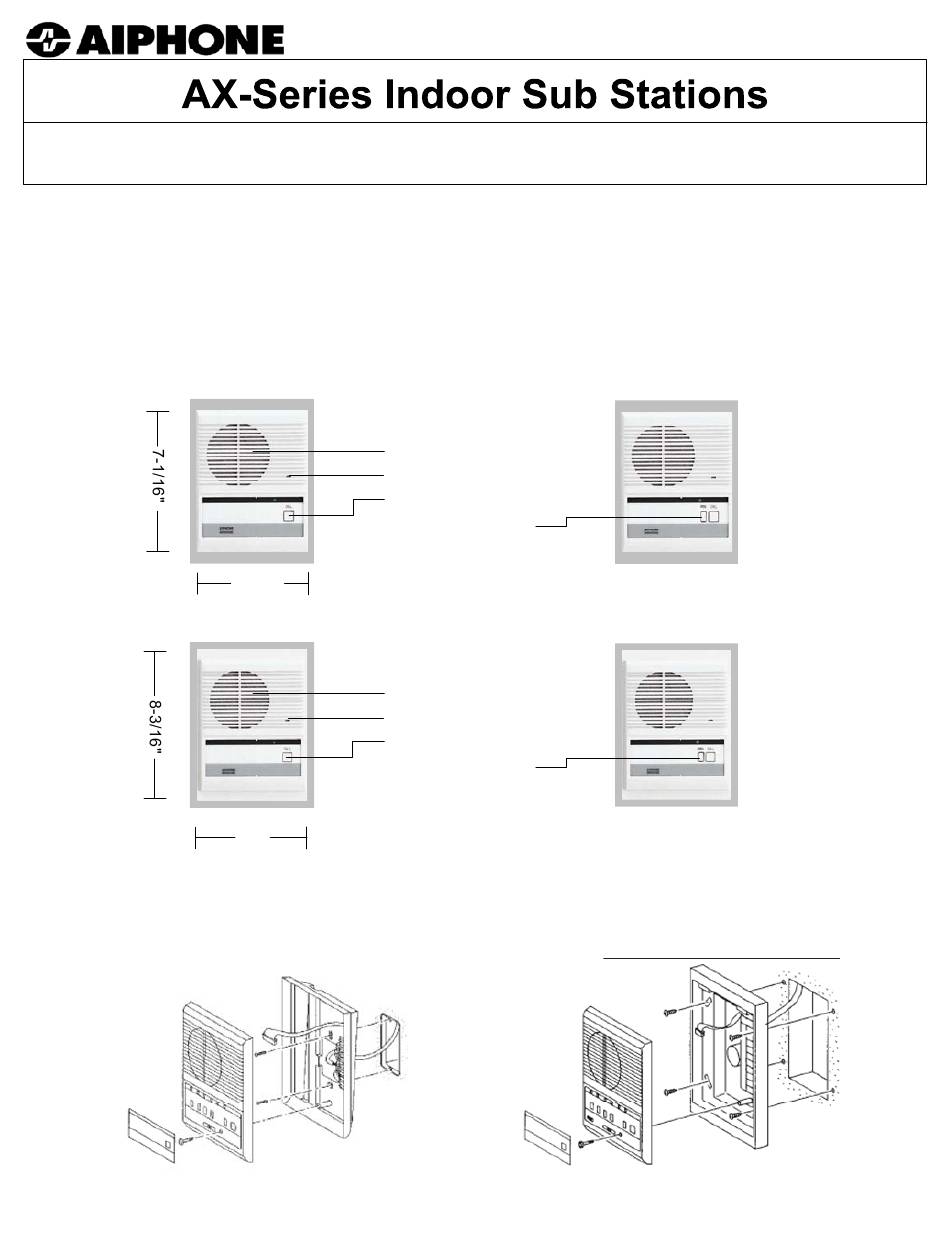

AX-A, AX-AN (Surface Mount); AX-B, AX-BN (Semi-Flush Mount)
The AX-A, AX-AN, AX-B, and AX-BN are interior sub stations designed for use with the AX system. The AX-A and
AX-AN sub stations are surface mount and will mount to a single gang box or can be set on a desk or table top.
The AX-B and AX-BN sub stations are semi-flush mount and can be mounted into a 6-⅛" H x 3-¾" W cutout in a
wall, or can be mounted using the model BBX-1E back box. The sub stations with the "N" at the end of the model
number include the PRIVACY feature, which prevents a master station from hearing audio from that sub location
while the Privacy button is engaged.

MOUNTING AND INSTALLATION:

Remove the directory cover from the front case using a small fine tip screwdriver. Loosen the screw under
the directory cover and remove the intercom unit from the back chassis. Secure chassis to box or wall using
supplied mounting screws. Connect wires to unit, then reinstall to chassis and reinsert directory cover.
- INSTRUCTIONS -
AX-A
Speaker
Mic
Call Button
Privacy Button
5⅝"
AX-B
Speaker
Mic
Call Button
Privacy Button
6"
AX-A/AN
AX-AN
Dimensions same as AX-A
AX-BN
Dimensions same as AX-B
AX-B/BN
Pg. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aiphone AX Series

  • Page 1 AX-A, AX-AN (Surface Mount); AX-B, AX-BN (Semi-Flush Mount) - INSTRUCTIONS - The AX-A, AX-AN, AX-B, and AX-BN are interior sub stations designed for use with the AX system. The AX-A and AX-AN sub stations are surface mount and will mount to a single gang box or can be set on a desk or table top. The AX-B and AX-BN sub stations are semi-flush mount and can be mounted into a 6-⅛"...
  • Page 2 Only information pertaining to the AX-A/AN/B/BN is included here. For complete installation, wiring, programming and operational information, please refer to the AX Series Installation Manual, located on the CD that comes with the CEU, or on our web site. AX sub stations perform operationally the same as the AX, IE, or IF series audio door stations.
